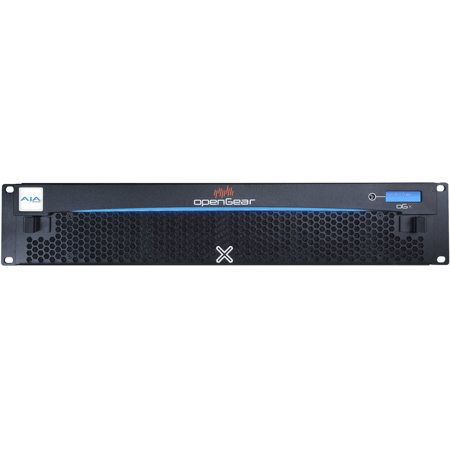

AJA OG-X-FR openGear-Compatible 2RU 20-Slot Rack Frame with Power Supply

SKU: AJAOGXFR MFR: OG-X-FR
Earn VIP Reward Points

Key Features

  • Maximize uptime with this reliable AJA openGear frame, built for broadcast environments.
  • Ensure seamless video workflows with this 2RU rack frame, offering wide compatibility.
  • Achieve high-density configurations using the 20 card slots for ultimate flexibility.
  • Power your critical systems with a robust 600W power supply for dependable performance.
  • Simplify setup with the user-friendly design, perfect for complex video switching needs.
  • Maintain optimal temperatures with advanced cooling, ensuring low latency video output.
See More Product Details
Special Order?Estimated to Ship: 08/18/2025
Free Shipping

See Options
