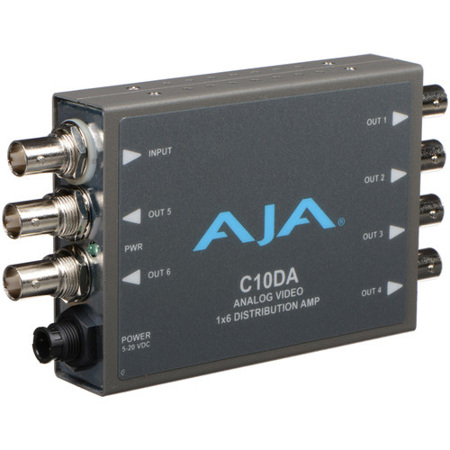

AJA C10DA Analog Video 1x6 Distribution Amplifier

SKU: AJAV1X6D MFR: C10DA
Earn VIP Reward Points

Key Features

  • Easily distribute analog video signals with the AJA C10DA video distribution amplifier.
  • Achieve reliable video signal splitting with 1 input and 6 BNC outputs for wide compatibility.
  • Enjoy low latency video distribution; perfect for live events and critical monitoring setups.
  • Optimize your video workflow with adjustable gain settings for pristine signal quality always.
  • This video amplifier supports NTSC, PAL, and reference signals for versatile applications.
  • Ensure high-quality video output with >35dB return loss, minimizing signal reflections issues.
See More Product Details
Special Order?Estimated to Ship: 08/20/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$19.99

2 Year

$29.99

3 Year

$39.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

AJA C10DA Specifications

  • Formats

    NTSC
    PAL
    Bi-level Reference
    Tri-level Reference
    AES3-id
    LTC

  • Inputs

    1 Analog, Differential, 1x BNC

  • Outputs

    6 Analog, 6x BNC

  • Termination

    75Ohms or nonterminated

  • Video Bandwidth

    0 - 6MHz +/- 0.1dB

  • Gain

    -3dB, -2dB, -1dB, 0dB, +1dB, +2dB, or +3dB, +/- 0.3dB

  • Diff Gain

    0.15%, not load dependent

  • Diff Phase

    0.1 degree, not load dependent

  • H/V Tilt

    < 0.1%

  • Response Variation

    < 0.1dB 1 to 6 loads

  • Coupling

    DC

  • Max Common Mode Signal

    10Vp-p

  • Return Loss

    >35dB to 6MHz all inputs and outputs

  • Output Isolation

    >40dB

  • User Controls

    External Dipswitch
    Termination
    Gain

  • Power

    5VDC Regulated, 2 Watts, power supply required

  • Safe Operating Temperature

    0 to 40 deg. C (32 to 104 deg. F)

  • Safe Storage Temperature (Power OFF)

    -40 to 60 deg. C (-40 to 140 deg. F)

  • Operating Relative Humidity

    10-90% noncondensing

  • Operating Altitude

    <3,000 meters (<10,000 feet)

  • Dimensions (WxDxH)

    5.8 x 3.1 x 1.0" (147.32 x 78.74 x 25.40mm)

  • Weight

    0.8 lbs (0.36kg)

  • UPC Code

    892448000670

About AJA C10DA

Become a master of video distribution with the C10DA Analog Video 1x6 Distribution Amplifier. This high-quality, durable device is designed to distribute analog video signals from a single source to up to six different outputs. It's a versatile tool that supports both NTSC and PAL formats, making it a reliable choice for professionals in the broadcasting, live events, and post-production industries.

The C10DA is more than just a distribution amplifier. It also offers the ability to extend the content of composite video with a gain adjustment feature. This is particularly useful for compensating for signal loss during long cable runs, ensuring that your video quality remains top-notch regardless of distance.

One of the standout features of the C10DA is its ability to distribute tri-level sync when a sync signal is fed into the Video Input. This makes it an essential tool for HD workflows, further enhancing its versatility and usefulness in a professional setting.

Despite its advanced capabilities, the C10DA maintains a compact design. It's small enough to fit behind a monitor, in the back of a rack, or directly on a camera rig. This makes it an ideal choice for professionals who need a portable solution for their video distribution needs. The device also features a locking power connector to prevent accidental disconnections, and an optional P-TAP power cable for battery power in remote locations.

The C10DA Analog Video 1x6 Distribution Amplifier is a product of Aja, a reputable brand known for its commitment to producing high-quality video equipment. With the C10DA, you can trust that you're getting a product that delivers both in performance and durability.

AJA C10DA Features

  • High-quality 1x6 Analog Distribution Amplifier for professional video applications
  • Supports both NTSC and PAL formats for versatile video distribution
  • Features gain adjustment to extend composite video content and compensate for long cable runs
  • Capable of distributing tri-level sync for HD workflows when a sync signal is fed into the Video Input
  • Compact and portable design, ideal for use in various settings, from studios to remote locations
  • Manufactured by Aja, a reputable brand known for its reliable, advanced video equipment

Warranty Information

This product has a limited warranty of 60 months.

Key Features

  • Easily distribute analog video signals with the AJA C10DA video distribution amplifier.
  • Achieve reliable video signal splitting with 1 input and 6 BNC outputs for wide compatibility.
  • Enjoy low latency video distribution; perfect for live events and critical monitoring setups.
  • Optimize your video workflow with adjustable gain settings for pristine signal quality always.
  • This video amplifier supports NTSC, PAL, and reference signals for versatile applications.
  • Ensure high-quality video output with >35dB return loss, minimizing signal reflections issues.

What's in the box:

  • AJA C10DA Analog Video 1x6 Distribution Amplifier
  • Universal Power Supply
  • AJA 5 Year Limited Warranty
