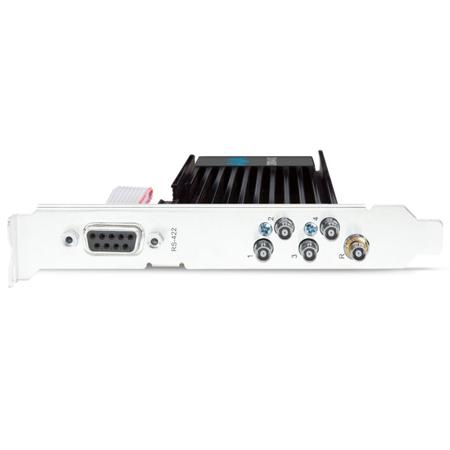

AJA Corvid 44 12G Compact 12G-SDI Power 8-Lane PCIe 3.0 I/O Card with 4x HD-BNC Ports, Short Bracket, No Cables

SKU: AJC4412GR012 MFR: CRV44-12G-R0-12
Earn VIP Reward Points

Key Features

  • Capture & monitor in 4K/Ultra HD with this AJA Corvid 44 12G-SDI I/O card.
  • Experience low latency with the 8-lane PCIe 3.0 interface for seamless video workflows.
  • Enjoy wide compatibility with multiple video formats, including 8K and various HD options.
  • Ensure reliable connection with bidirectional SDI I/O, simplifying your setup process.
  • Utilize 16-channel embedded audio for high-quality sound in your video productions.
  • Easily integrate graphics with alpha channel using the built-in downstream keyer.
See More Product Details
Special Order?Estimated to Ship: 08/13/2025
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$159.99

3 Year

$215.99

4 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

AJA Corvid 44 12G Specifications

  • Video Formats

    (8K) 8192 x 4320p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
    (UHD2) 7680 x 4320p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
    (Ultra HD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
    (2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30
    (HD) 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60

  • Video Formats (Cont.)

    (HD) 1080PsF 23.98, 24, 25, 29.97, 30
    (HD) 1080i 50, 59.94, 60
    (HD) 720p 50, 59.94, 60
    (SD) 625i 50
    (SD) 525i 59.94

  • Video Inputs Digital

    12G-SDI, SMPTE-2082, 12-bit, 10-bit and 8-bit
    6G-SDI, SMPTE-2081, 10-bit and 8-bit
    3G-SDI, SMPTE-259/292/296/424/425, 12-bit, 10-bit and 8-bit
    4K/Ultra HD 4:4:4 (4x HD BNC)
    1.5G-SDI, SMPTE 372M, Dual Link HD 4:4:4 (2x HD BNC), 12-bit, 10-bit and 8-bit
    1.5G-SDI, SMPTE 292M, Single Link 4:2:2 (1x HD BNC), 10-bit and 8-bit

  • Video Outputs Digital

    12G-SDI, SMPTE-2082, 12-bit, 10-bit and 8-bit
    6G-SDI, SMPTE-2081, 10-bit and 8-bit
    3G-SDI, SMPTE-259/292/296/424, 12-bit, 10-bit and 8-bit
    4K/Ultra HD 4:4:4 (4x HD BNC)
    1.5G-SDI, SMPTE 372M, Dual Link HD 4:4:4 (2x HD BNC), 12-bit, 10-bit and 8-bit
    1.5G-SDI, SMPTE 292M, Single Link 4:2:2 (1x HD BNC), 10-bit and 8-bit

  • SDI I/O

    SDI connections are bidirectional
    2K/HD, capture and monitoring is simultaneous
    4K/Ultra HD with 12G-SDI, capture and monitoring is simultaneous.
    4K/Ultra HD with 3G-SDI, all four connections must be used for either Input or Output.
    8K/UHD2 with 12G-SDI, connections must be used for either Input or Output.
    Note: When connections are configured for 12G-SDI or 6G-SDI, only Ultra HD/4K/UHD2/8K formats are supported

  • Audio Inputs Digital

    16-channel, 24 and 16-bit SDI embedded audio, 48kHz sample rate, synchronous

  • Audio Outputs Digital

    16-channel, 24-bit SDI embedded audio, 48kHz sample rate, synchronous

  • Downstream Keyer

    Supports graphics with alpha channel over video, matte or framebuffer or framebuffer content over incoming video or matte up to Ultra HD/4K

  • Reference

    Analog Color Black (1V) or Composite Sync (2 or 4V) or HD Tri-Level Sync (1V) via 1x HD-BNC on PCIe bracket
    Reference input is terminated into 75 Ohms when Genlock is set to Ref In

  • Timecode

    LTC timecode input via 2-pin header on PCIe card

  • Electrical Interface

    8-lane PCIe 3.0

  • Machine Controls

    RS-422, Sony 9-pin protocol via header on PCIe card

  • Noise

    Ultra quiet (virtually silent)
    Passive cooling requires in-host/chassis air-flow minimum of 150 LFM (linear feet per minute) at 30 deg. C

  • Power

    25W typical, 32W maximum
    PC Internal ATX Power Connector

  • Safe Operating Temperature

    0 to 40 deg. C (32 to 104 deg. F)

  • Safe Storage Temperature (Power OFF)

    -40 to 60 deg. C (-40 to 140 deg. F)

  • Operating Relative Humidity

    10-90% noncondensing

  • Operating Altitude

    <3,000 meters (<10,000 feet)

  • Dimensions (WxDxH)

    0.75 x 7.0 x 3.15" (19 x 178 x 80mm)

  • Weight

    0.6 lbs (0.3kg)

  • UPC Code

    812321032031

About AJA Corvid 44 12G

Because professional video editing demands high-speed, reliable, and efficient tools, the Corvid 44 12G Compact 12G-SDI Power 8-Lane PCIe 3.0 I/O Card is a powerful solution. This compact, high-speed I/O card is the latest addition to the Corvid product line, designed to handle the most demanding video and audio workflows.

Equipped with four bidirectional 12G-SDI HD-BNC connections, this card offers a versatile range of interface options. It supports 12G-SDI, 6G HD-SDI, 3G HD-SDI, and BNC, SDI interfaces, making it compatible with a wide array of equipment.

The Corvid 44 12G is designed to support high frame rate (HFR) workflows up to 50/60p for 8K (8192 x 4320) and Ultra HD2 (7680 x 4320) formats. It also supports film rates of 23.98, 24, 47.95, and 48p across 8K, 4K, and 2K formats. Moreover, it's not limited to high-definition formats; it also supports multiple 4K, Ultra HD, 1080p, and 720p HD inputs and outputs at frame rates up to 50/60p.

This I/O card also features a built-in hardware downstream keyer for real-time overlay of graphics and images on the input video. It also provides an external, switchable LTC/Reference Input connection on the back of the card, with a second LTC input available on an internal header for additional reference.

For frame-accurate ingest and layoffs, the Corvid 44 12G includes a built-in RS-422 connection, available either as an external connection on the full-sized card or as an internal connection on the low-profile version.

In summary, the Corvid 44 12G Compact 12G-SDI Power 8-Lane PCIe 3.0 I/O Card is a compact, powerful, and versatile solution for professional video editing and production environments.

AJA Corvid 44 12G Features

  • 12G-SDI I/O for 8K, Ultra HD2, 4K, Ultra HD, 2K, HD and SD with HFR support up to 8K 60p at YUV 10-bit 4:2:2 and support for RGB 12-bit 4:4:4 up to 8K 30p
  • 4x bidirectional 12G-SDI ports and 1x Reference In
  • 16-channel embedded SDI audio per 12G-SDI port
  • 10-bit downstream keyer in hardware, supporting up to 4K resolution
  • AJA SDK compatibility on Windows, MacOS and Linux, offering advanced features including multi-channel 4K I/O
  • Low profile design for use in workstations or servers
  • 8-lane PCIe 3.0 design
  • RS-422 serial control via PCIe bracket or header on card
  • Passive heatsink
  • Three year warranty

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Capture & monitor in 4K/Ultra HD with this AJA Corvid 44 12G-SDI I/O card.
  • Experience low latency with the 8-lane PCIe 3.0 interface for seamless video workflows.
  • Enjoy wide compatibility with multiple video formats, including 8K and various HD options.
  • Ensure reliable connection with bidirectional SDI I/O, simplifying your setup process.
  • Utilize 16-channel embedded audio for high-quality sound in your video productions.
  • Easily integrate graphics with alpha channel using the built-in downstream keyer.

What's in the box:

  • AJA Corvid 44 12G Compact 12G-SDI Power 8-Lane PCIe 3.0 I/O Card
  • AJA 3 Year Limited Warranty
