AJA Corvid 44 12G PCIe 3.0 I/O Card, Tall Bracket, Passive Cooling
See all AJA items

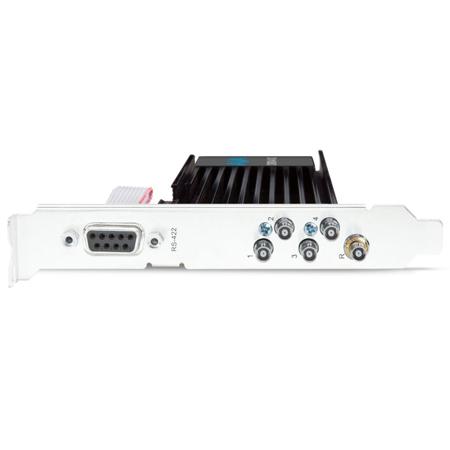

AJA Corvid 44 12G Compact 12G-SDI Power 8-Lane PCIe 3.0 I/O Card with 4x HD-BNC Ports, Tall Bracket

SKU: AJC4412GR013 MFR: CRV44-12G-R0-13
Be the first to review this itemAsk a Question
$4,235.00
OR
$353/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Capture & monitor up to 4K/Ultra HD with the Corvid 44 12G's simultaneous SDI I/O.
  • Experience reliable, high-resolution video with this 12G-SDI I/O card's 8-lane PCIe 3.0.
  • Enjoy wide compatibility with various video formats, from SD to 8K, using this video switcher.
  • Ensure easy setup and integration with existing broadcast and production workflows via HD-BNC.
  • Utilize the AJA Corvid 44 for low latency video processing, ideal for live streaming events.
  • Get good value with professional-grade features like embedded audio and downstream keying.
See More Product Details
Special Order?Estimated to Ship: 09/05/2025
Free Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

2 Year

$159.99

3 Year

$215.99

4 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

AJA Corvid 44 12G Specifications

  • Video Formats

    (8K) 8192 x 4320p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
    (UHD2) 7680 x 4320p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
    (Ultra HD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
    (2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30
    (HD) 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60

  • Video Formats (Cont.)

    (HD) 1080PsF 23.98, 24, 25, 29.97, 30
    (HD) 1080i 50, 59.94, 60
    (HD) 720p 50, 59.94, 60
    (SD) 625i 50
    (SD) 525i 59.94

  • Video Inputs Digital

    12G-SDI, SMPTE-2082, 12-bit, 10-bit and 8-bit
    6G-SDI, SMPTE-2081, 10-bit and 8-bit
    3G-SDI, SMPTE-259/292/296/424/425, 12-bit, 10-bit and 8-bit
    4K/Ultra HD 4:4:4 (4x HD BNC)
    1.5G-SDI, SMPTE 372M, Dual Link HD 4:4:4 (2x HD BNC), 12-bit, 10-bit and 8-bit
    1.5G-SDI, SMPTE 292M, Single Link 4:2:2 (1x HD BNC), 10-bit and 8-bit

  • Video Outputs Digital

    12G-SDI, SMPTE-2082, 12-bit, 10-bit and 8-bit
    6G-SDI, SMPTE-2081, 10-bit and 8-bit
    3G-SDI, SMPTE-259/292/296/424, 12-bit, 10-bit and 8-bit
    4K/Ultra HD 4:4:4 (4x HD BNC)
    1.5G-SDI, SMPTE 372M, Dual Link HD 4:4:4 (2x HD BNC), 12-bit, 10-bit and 8-bit
    1.5G-SDI, SMPTE 292M, Single Link 4:2:2 (1x HD BNC), 10-bit and 8-bit

  • SDI I/O

    SDI connections are bidirectional
    2K/HD, capture and monitoring is simultaneous
    4K/Ultra HD with 12G-SDI, capture and monitoring is simultaneous.
    4K/Ultra HD with 3G-SDI, all four connections must be used for either Input or Output.
    8K/UHD2 with 12G-SDI, connections must be used for either Input or Output.
    Note: When connections are configured for 12G-SDI or 6G-SDI, only Ultra HD/4K/UHD2/8K formats are supported

  • Audio Inputs Digital

    16-channel, 24 and 16-bit SDI embedded audio, 48kHz sample rate, synchronous

  • Audio Outputs Digital

    16-channel, 24-bit SDI embedded audio, 48kHz sample rate, synchronous

  • Downstream Keyer

    Supports graphics with alpha channel over video, matte or framebuffer or framebuffer content over incoming video or matte up to Ultra HD/4K

  • Reference

    Analog Color Black (1V) or Composite Sync (2 or 4V) or HD Tri-Level Sync (1V) via 1x HD-BNC on PCIe bracket
    Reference input is terminated into 75 Ohms when Genlock is set to Ref In

  • Timecode

    LTC timecode input via 2-pin header on PCIe card
    LTC timecode input via HD-BNC Ref In connector (switchable) on PCIe bracket

  • Electrical Interface

    8-lane PCIe 3.0

  • Machine Controls

    RS-422, Sony 9-pin protocol via header on PCIe card
    RS-422, Sony 9-pin protocol via port on PCIe bracket connected to header via DB9 cable

  • Noise

    Ultra quiet (virtually silent)
    Passive cooling requires in-host/chassis air-flow minimum of 150 LFM (linear feet per minute) at 30 deg. C

  • Power

    25W typical, 32W maximum
    PC Internal ATX Power Connector

  • Safe Operating Temperature

    0 to 40 deg. C (32 to 104 deg. F)

  • Safe Storage Temperature (Power OFF)

    -40 to 60 deg. C (-40 to 140 deg. F)

  • Operating Relative Humidity

    10-90% noncondensing

  • Operating Altitude

    <3,000 meters (<10,000 feet)

  • Dimensions (WxDxH)

    0.75 x 7.0 x 4.75" (19 x 178 x 121mm)

  • Weight

    0.6 lbs (0.3kg)

  • UPC Code

    812321032024

About AJA Corvid 44 12G

Be at the helm of your most demanding projects with the Corvid 44 12G, the latest addition to AJA's Corvid product line. This compact, high-speed 8-lane PCIe 3.0 I/O card is equipped with four bidirectional 12G-SDI HD-BNC connections, specifically engineered to meet the requirements of today's most rigorous video and audio workflows.

The Corvid 44 12G is available in a variety of configurations, including full-height or low-profile, and features passive cooling for optimal performance. It's designed to handle a wide range of formats, including HFR 8K/4K/Ultra HD, 2K/HD, SD, Deep Color, and HDR, providing unparalleled quality and reliability for your projects.

Supporting 10-bit 4:2:2 and 4:4:4, at up to 12-bit color spaces, the Corvid 44 12G offers both ingest and output over 12G-SDI. It's also backwards compatible with 6G-SDI, 3G-SDI, and 1.5G-SDI. The bidirectional 12G-SDI ports provide immense flexibility for capture and simultaneous pass-through, making it a versatile solution for a variety of applications.

The Corvid 44 12G boasts four bidirectional 12G-SDI spigots with a Reference Input. It supports 8K Input or Output using quad 12G-SDI cables and 4K/Ultra HD I/O can be achieved with either a single 12G-SDI or 6G-SDI cable or quad 3G-SDI cables. 2K/HD I/O can be achieved with a single SDI cable or dual link SDI, while allowing capture and monitoring via SDI to take place simultaneously.

The Corvid 44 12G supports High Frame Rate (HFR) workflows up to 50/60p for 8K (8192 x 4320) and Ultra HD2 (7680 x 4320), catering to the most demanding applications. It also supports film rates of 23.98, 24, 47.95, and 48p across 8K, 4K, and 2K. High frame rates are not limited to 8K and Ultra HD2 with Corvid 44 12G, multiple 4K, Ultra HD, 1080p and 720p HD inputs and outputs are also supported at frame rates up to 50/60p, making the Corvid 44 12G a flexible solution for both your current and future needs.

The built-in hardware downstream keyer allows for easy overlay of graphics and images on the input video in real time. The Corvid 44 12G also provides one external, switchable LTC/Reference Input connection on the back of the card, with a second LTC input available on an internal header for providing additional reference. A built-in RS-422 connection is available either as an external connection on the full-sized Corvid 44 12G or as an internal connection on the low profile Corvid 44 12G, allowing for control of external devices for frame accurate ingest and layoffs.

AJA Corvid 44 12G Features

  • 12G-SDI I/O for 8K, Ultra HD2, 4K, Ultra HD, 2K, HD and SD with HFR support up to 8K 60p at YUV 10-bit 4:2:2 and support for RGB 12-bit 4:4:4 up to 8K 30p
  • 4x bidirectional 12G-SDI ports and 1x Reference In
  • 16-channel embedded SDI audio per 12G-SDI port
  • 10-bit downstream keyer in hardware, supporting up to 4K resolution
  • AJA SDK compatibility on Windows, MacOS and Linux, offering advanced features including multi-channel 4K I/O
  • Low profile design for use in workstations or servers
  • 8-lane PCIe 3.0 design
  • RS-422 serial control via PCIe bracket or header on card
  • Passive heatsink
  • Three year warranty

Warranty Information

This product has a limited warranty of 36 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Capture & monitor up to 4K/Ultra HD with the Corvid 44 12G's simultaneous SDI I/O.
  • Experience reliable, high-resolution video with this 12G-SDI I/O card's 8-lane PCIe 3.0.
  • Enjoy wide compatibility with various video formats, from SD to 8K, using this video switcher.
  • Ensure easy setup and integration with existing broadcast and production workflows via HD-BNC.
  • Utilize the AJA Corvid 44 for low latency video processing, ideal for live streaming events.
  • Get good value with professional-grade features like embedded audio and downstream keying.

What's in the box:

  • AJA Corvid 44 12G Compact 12G-SDI Power 8-Lane PCIe 3.0 I/O Card
  • AJA 3 Year Limited Warranty
