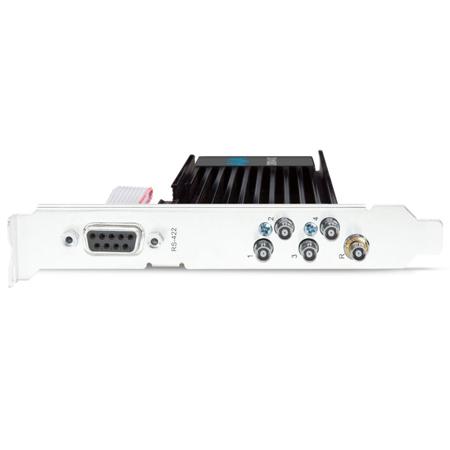

AJA Corvid 44 12G BNC Compact 12G BNC Power 8-Lane PCIe 3.0 I/O Card with 4x BNC Ports, Tall Bracket, Fan
SKU: AJC4412GR021 MFR: CRV44-12G-R0-21
Earn VIP Reward PointsKey Features
- Capture & monitor up to 4K/Ultra HD with this reliable AJA Corvid 44 12G-SDI video I/O card.
- Enjoy versatile video format support, from SD to 8K, ensuring future-proof video switching.
- Experience seamless integration with 16-channel embedded audio for professional audio mixing.
- Utilize downstream keyer for stunning graphics with alpha channel over live video output.
- Ensure reliable streaming with Genlock reference input, maintaining perfect synchronization.
- Take control with RS-422 support, integrating easily into existing broadcast infrastructures.
Special Order?Estimated to Ship: 09/07/2025
Free Shipping
See Options
1
Protect your gear with Adorama Protect.* Learn more
2 Year
$129.99
3 Year
$179.99
4 Year
$215.99
Available to U.S. customers only.
Need help? Ask our experts.
Overview
Compare
Specs
Protection
Q&A
About AJA Corvid 44 12G BNC
After integrating the Corvid 44 12G BNC into your professional video and audio workflow, you'll experience the immense power and versatility of this compact, high-speed I/O card. As the latest addition to the Corvid product line by AJA, this 8-lane PCIe 3.0 I/O card is equipped with four bidirectional 12G-SDI full-sized BNC connections, designed to handle the most demanding multimedia projects.
The Corvid 44 12G BNC is a powerhouse of performance, capable of supporting HFR 8K/4K/Ultra HD, 2K/HD, SD, Deep Color, and HDR formats. It offers 10-bit 4:2:2 and 4:4:4 color spaces, up to 12-bit, ensuring the highest quality for your projects. Its 12G-SDI ingest and output are backwards compatible with 6G-SDI, 3G-SDI, and 1.5G-SDI, providing flexibility and compatibility with a wide range of equipment.
This multi-format PCIe I/O card boasts four bidirectional 12G-SDI spigots with a Reference Input. It supports 8K Input or Output using quad 12G-SDI cables and 4K/Ultra HD I/O with either a single 12G-SDI or 6G-SDI cable or quad 3G-SDI cables. 2K/HD I/O can be achieved with a single SDI cable or dual link SDI, allowing simultaneous capture and monitoring via SDI.
The Corvid 44 12G BNC is available in configurations with either active (fan) or passive cooling (no fan), both versions supporting RS422 and LTC Input via headers on the top edge of the card. It supports high frame rates up to 50/60p for 8K (8192 x 4320) and Ultra HD2 (7680 x 4320) workflows, as well as film rates of 23.98, 24, 47.95, and 48p across 8K, 4K, and 2K.
With its built-in hardware downstream keyer, you can easily overlay graphics and images on the input video in real time up to 4K. It also provides an external, switchable LTC/Reference Input connection on the back of the card, and an internal RS-422 connection for control of external devices for frame-accurate ingest and layoffs.
In summary, the Corvid 44 12G BNC is a compact, powerful, and reliable solution for professional video and audio applications, offering high-speed performance and versatility for your current and future multimedia needs.
AJA Corvid 44 12G BNC Features
- 12G BNC I/O for 8K, Ultra HD2, 4K, Ultra HD, 2K, HD and SD with HFR support up to 8K 60p at YUV 10-bit 4:2:2 and support for RGB 12-bit 4:4:4 up to 8K 30p
- 4x bidirectional 12G BNC ports and 1x Reference In
- LTC Input available via Ref In (switchable) on bracket or via header on card
- 16-channel embedded BNC audio per 12G BNC port
- 10-bit downstream keyer in hardware, supporting up to 4K resolution
- AJA SDK compatibility on Windows, macOS and Linux, offering advanced features including multi-channel 4K I/O
- 8-lane PCIe 3.0 design
- RS-422 serial control via header on card
- Active cooling
- Three year warranty
Warranty Information
This product has a limited warranty of 36 months.
