AJA Corvid 44 12G BNC Power PCIe 3.0 I/O Card, Tall Bracket, Passive Cooling
See all AJA items

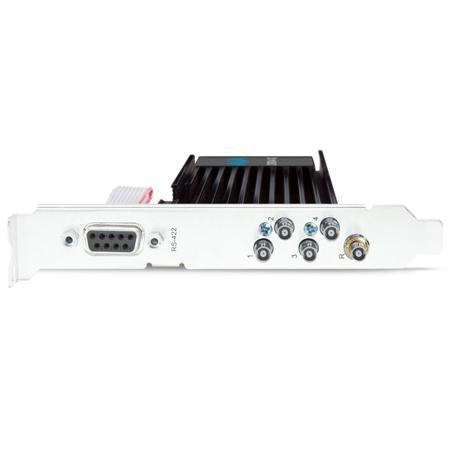

AJA Corvid 44 12G BNC Compact 12G BNC Power 8-Lane PCIe 3.0 I/O Card with 4x BNC Ports, Tall Bracket

SKU: AJC4412GR022 MFR: CRV44-12G-R0-22
Be the first to review this itemAsk a Question
$4,115.00
OR
$343/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Capture pristine video with the AJA Corvid 44's 12G-SDI inputs, ensuring high resolution.
  • Experience low latency video I/O for seamless editing and live streaming workflows.
  • Enjoy wide compatibility with various video formats, including 8K, UHD, and HD.
  • Easily integrate this video I/O card into your existing PCIe 3.0 infrastructure.
  • Ensure reliable connection during critical broadcasts with robust BNC connectors.
  • Get superior performance at a good price with this high-quality AJA video solution.
See More Product Details
Special Order?Estimated to Ship: 09/12/2025
Free Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

2 Year

$159.99

3 Year

$215.99

4 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

AJA Corvid 44 12G BNC Specifications

  • Video Formats

    (8K) 8192 x 4320p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
    (UHD2) 7680 x 4320p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
    (Ultra HD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
    (2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30
    (HD) 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60

  • Video Formats (Cont.)

    (HD) 1080PsF 23.98, 24, 25, 29.97, 30
    (HD) 1080i 50, 59.94, 60
    (HD) 720p 50, 59.94, 60
    (SD) 625i 50
    (SD) 525i 59.94

  • Video Inputs Digital

    12G-SDI, SMPTE-2082, 12-bit, 10-bit and 8-bit
    6G-SDI, SMPTE-2081, 10-bit and 8-bit
    3G-SDI, SMPTE-259/292/296/424/425, 12-bit, 10-bit and 8-bit
    4K/Ultra HD 4:4:4 (4x BNC)
    1.5G-SDI, SMPTE 372M, Dual Link HD 4:4:4 (2x BNC), 12-bit, 10-bit and 8-bit
    1.5G-SDI, SMPTE 292M, Single Link 4:2:2 (1x BNC), 10-bit and 8-bit

  • Video Outputs Digital

    12G-SDI, SMPTE-2082, 12-bit, 10-bit and 8-bit
    6G-SDI, SMPTE-2081, 10-bit and 8-bit
    3G-SDI, SMPTE-259/292/296/424, 12-bit, 10-bit and 8-bit
    4K/Ultra HD 4:4:4 (4x BNC)
    1.5G-SDI, SMPTE 372M, Dual Link HD 4:4:4 (2x BNC), 12-bit, 10-bit and 8-bit
    1.5G-SDI, SMPTE 292M, Single Link 4:2:2 (1x BNC), 10-bit and 8-bit

  • SDI I/O

    SDI connections are bidirectional
    2K/HD, capture and monitoring is simultaneous
    4K/Ultra HD with 12G-SDI, capture and monitoring is simultaneous
    4K/Ultra HD with 3G-SDI, all four connections must be used for either Input or Output
    8K/UHD2 with 12G-SDI, connections must be used for either Input or Output
    Note: When connections are configured for 12G-SDI or 6G-SDI, only Ultra HD/4K/UHD2/8K formats are supported

  • Audio Inputs Digital

    16-channel, 24 and 16-bit SDI embedded audio, 48kHz sample rate, synchronous

  • Audio Outputs Digital

    16-channel, 24-bit SDI embedded audio, 48 kHz sample rate, synchronous

  • Downstream Keyer

    Supports graphics with alpha channel over video, matte or framebuffer or framebuffer content over incoming video or matte up to Ultra HD/4K

  • Reference

    Analog Color Black (1V) or Composite Sync (2 or 4V) or HD Tri-Level Sync (1V) via 1x full-size BNC on PCIe bracket
    Reference input is terminated into 75 ohms when Genlock is set to Ref In

  • Timecode

    LTC timecode input via 2-pin header on PCIe card or via full-size BNC Ref In connector (switchable) on PCIe bracket

  • Electrical Interface

    8-lane PCIe 3.0

  • Machine Controls

    RS-422, Sony 9-pin protocol via header on PCIe card

  • Noise

    Ultra quiet (virtually silent)
    Passive cooling requires in-host/chassis air-flow minimum of 150 LFM (linear feet per minute) at 30 deg. C

  • Power

    25W typical, 32W maximum
    PC Internal ATX Power Connector

  • Safe Operating Temperature

    0 to 40 deg. C (32 to 104 deg. F)

  • Safe Storage Temperature (Power OFF)

    -40 to 60 deg. C (-40 to 140 deg. F)

  • Operating Relative Humidity

    10-90% noncondensing

  • Operating Altitude

    <3,000 meters (<10,000 feet)

  • Dimensions (WxDxH)

    0.75 x 7.0 x 4.75" (19 x 178 x 121mm)

  • Weight

    0.6 lbs (0.3kg)

  • UPC Code

    812321031997

About AJA Corvid 44 12G BNC

If you're seeking a compact yet powerful solution for your demanding video and audio workflows, the Corvid 44 12G BNC I/O card by AJA is the perfect fit. This high-speed, 8-lane PCIe 3.0 card is equipped with four bidirectional 12G-SDI full-sized BNC connections, designed to handle everything from HFR 8K/4K/Ultra HD, 2K/HD, SD, Deep Color, and HDR projects.

The Corvid 44 12G BNC is a versatile tool, supporting 10-bit 4:2:2 and 4:4:4, at up to 12-bit color spaces. It offers both ingest and output over 12G-SDI, and is backwards compatible with 6G-SDI, 3G-SDI, and 1.5G-SDI. The four bidirectional 12G-SDI ports provide immense flexibility for capture and simultaneous pass-through, making it a reliable solution for a range of applications.

This multi-format PCIe I/O card boasts four bidirectional 12G-SDI spigots with a Reference Input. It supports 8K Input or Output using quad 12G-SDI cables, and 4K/Ultra HD I/O can be achieved with either a single 12G-SDI or 6G-SDI cable or quad 3G-SDI cables. For 2K/HD I/O, a single SDI cable or dual link SDI can be used, allowing for simultaneous capture and monitoring via SDI.

The Corvid 44 12G BNC is available with either active (fan) or passive cooling (no fan), both versions supporting RS422 and LTC Input via headers on the top edge of the card. It supports high frame rates across 8K, 4K, and 2K, making it a future-proof solution for your evolving needs.

The built-in hardware downstream keyer allows for easy overlay of graphics and images on the input video in real time up to 4K. The card also provides one external, switchable LTC/Reference Input connection on the back of the card, and an internal RS-422 connection for control of external devices for frame accurate ingest and layoffs.

In summary, the Corvid 44 12G BNC I/O card is a compact, durable, and reliable solution for your high-speed video and audio workflows.

AJA Corvid 44 12G BNC Features

  • 12G BNC I/O for 8K, Ultra HD2, 4K, Ultra HD, 2K, HD and SD with HFR support up to 8K 60p at YUV 10-bit 4:2:2 and support for RGB 12-bit 4:4:4 up to 8K 30p
  • 4x bidirectional 12G BNC ports and 1x Reference In
  • LTC Input available via Ref In (switchable) on bracket or via header on card
  • 16-channel embedded BNC audio per 12G BNC port
  • 10-bit downstream keyer in hardware, supporting up to 4K resolution
  • AJA SDK compatibility on Windows, macOS and Linux, offering advanced features including multi-channel 4K I/O
  • 8-lane PCIe 3.0 design
  • RS-422 serial control via header on card
  • Passive heatsink
  • Three year warranty

Warranty Information

This product has a limited warranty of 36 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Capture pristine video with the AJA Corvid 44's 12G-SDI inputs, ensuring high resolution.
  • Experience low latency video I/O for seamless editing and live streaming workflows.
  • Enjoy wide compatibility with various video formats, including 8K, UHD, and HD.
  • Easily integrate this video I/O card into your existing PCIe 3.0 infrastructure.
  • Ensure reliable connection during critical broadcasts with robust BNC connectors.
  • Get superior performance at a good price with this high-quality AJA video solution.

What's in the box:

  • AJA Corvid 44 12G BNC Compact 12G BNC Power 8-Lane PCIe 3.0 I/O Card
  • AJA 3 Year Limited Warranty
