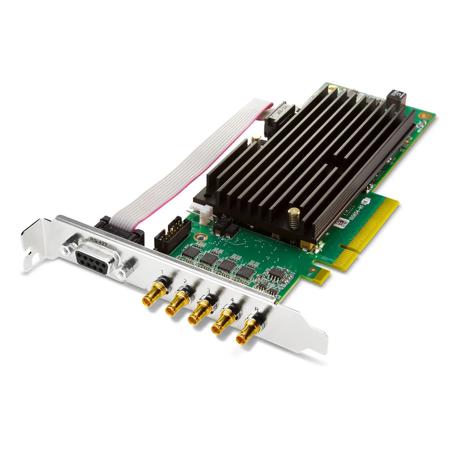

AJA CRV44-BNC-NF 8-Lane PCIe 2.0 4-Channel I/O Card with Passive Heat Sink, Fanless

SKU: AJCRV44BNCNF MFR: CRV44-BNC-NF
Earn VIP Reward Points

Key Features

  • Capture pristine video with the AJA CRV44-BNC-NF, supporting up to 4K resolution.
  • Enjoy low latency video capture, perfect for live streaming and broadcast applications.
  • Experience stable connection with 4x 3G-SDI inputs/outputs for reliable video capture.
  • This video capture card offers easy setup with PCIe 2.0 interface for quick integration.
  • Ensure good compatibility with a wide range of video formats, including HD and SD.
  • Utilize this fanless video capture solution for silent operation in sensitive environments.
See More Product Details
Special Order?Estimated to Ship: 08/25/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$109.99

3 Year

$179.99

4 Year

$233.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

AJA CRV44-BNC-NF Specifications

  • Video Formats

    4K: 4096 x2160p 23.98, 24, 25, 29.97, 30, 48 A/B, 50 A/B, 59.94 A/B, 60 A/B
    UltraHD: 3840 x2160p 23.98, 24, 25, 29.97, 30, 48 A/B, 50 A/B, 59.94 A/B, 60 A/B
    2K: 2048 x1080p 23.98, 24, 25, 29.97, 30, 48 A/B, 50 A/B, 59.94 A/B, 60 A/B
    2K: 2048 x1080PsF 23.98, 24, 25, 29.97, 30, 48 A/B, 50 A/B, 59.94 A/B, 60 A/B

  • Video Formats (Contd.)

    HD: 1080p 23.98, 24, 25, 29.97, 30, 50 A/B, 59.94 A/B, 60 A/B
    HD: 1080PsF 23.98, 24, 25, 29.97, 30
    HD: 1080i 25, 29.97, 30
    HD: 720p 50, 50.94, 60
    SD: 625i 25
    SD: 525i 29.97

  • Video Input Digital

    4x 3G-SDI BNC

  • Video Output Digital

    4x 3G-SDI BNC

  • Audio Input Digital

    16-Channel 24-bit SDI embedded, 48 kHz synchronous

  • Audio Output Digital

    16-Channel 24-bit SDI embedded, 48 kHz synchronous

  • Environment

    Airflow across the board for fanless models
    100LFM @25deg C or lower, computer chassis must have vented opening to exterior, immediately adjacent to PCIe shield (heatsink side), to permit 100LFM across heatsink
    Operating Altitude: <3,000 meters (<10,000 feet)

  • Power

    17 watts typical, 19 watts max

  • Dimensions (W x D x H)

    0.72 x 6.6 x 2.71" (18.47 x 167.65 x 68.90mm)

  • Weight

    0.4 lbs (200g)

  • UPC Code

    812321031546

About AJA CRV44-BNC-NF

For professionals seeking to enhance their video and audio I/O capacity, the CRV44-BNC-NF 8-Lane PCIe 2.0 4-Channel I/O Card with Passive Heat Sink, Fanless is a top-tier solution. This high-performance card features 3G-SDI connectivity via full-size BNC connectors, allowing for individual configuration of each SDI connection as either an input or output. This flexibility enables the mixing of formats for up to 4 HD or SD channels on a single card, optimizing your workflow efficiency.

As the industry evolves towards higher resolutions, this I/O card stands ready to meet the challenge. It allows for the combination of SDI connections into a single 4K/UHD channel, offering unparalleled flexibility and future-proofing your investment.

The CRV44-BNC-NF I/O Card is equipped with a multi-format I/O, where each BNC connection can be set programmatically as an input or output, supporting different video formats as long as they use the same clock timing. Moreover, these connections can be linked together to support Dual Link or 4K-UHD formats, further enhancing its versatility.

High Frame Rate (HFR) support is another key feature of this I/O card. It supports 4K (4096 x2160) and UltraHD (3840 x2160) workflows at frame rates of 48p, 50p, and 60p, ensuring smooth motion for the most demanding 4K and UHD applications. This high frame rate support is not limited to 4K and UHD, as the card also supports multiple 720p and 1080p HD inputs and outputs at frame rates up to 50p and 60p.

The CRV44-BNC-NF I/O Card also provides an external, switchable LTC/Reference input connection on the back of the card, with a second LTC input available on an internal header for providing additional reference. Additionally, it includes a built-in RS-422 connection for controlling external devices for frame-accurate ingest and layoffs.

In summary, the CRV44-BNC-NF 8-Lane PCIe 2.0 4-Channel I/O Card with Passive Heat Sink, Fanless is a comprehensive solution for professionals seeking to expand their video and audio I/O capacity while ensuring future-proof flexibility and high-performance functionality.

AJA CRV44-BNC-NF Features

  • PCIe Express Gen 2.0 8-lane
  • Up to four independent channels 3G, HD, SD-SDI I/O
  • All SD/HD/2Kx1080/4K video formats
  • 3G input/output for High Frame Rate (HFR) support
  • 8/10-bit YCbCr and 12- bit RGB frame buffer formats
  • 2 independent Mixer/Keyer widgets
  • 4 independent 16-ch 48kHz SDI embedded audio I/O engines
  • Analog Color Black or HD Tri-Level Sync

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Capture pristine video with the AJA CRV44-BNC-NF, supporting up to 4K resolution.
  • Enjoy low latency video capture, perfect for live streaming and broadcast applications.
  • Experience stable connection with 4x 3G-SDI inputs/outputs for reliable video capture.
  • This video capture card offers easy setup with PCIe 2.0 interface for quick integration.
  • Ensure good compatibility with a wide range of video formats, including HD and SD.
  • Utilize this fanless video capture solution for silent operation in sensitive environments.

What's in the box:

  • AJA CRV44-BNC-NF 8-Lane PCIe 2.0 4-Channel I/O Card with Passive Heat Sink
  • BNC Cable
  • AJA 3 Year Limited Warranty
