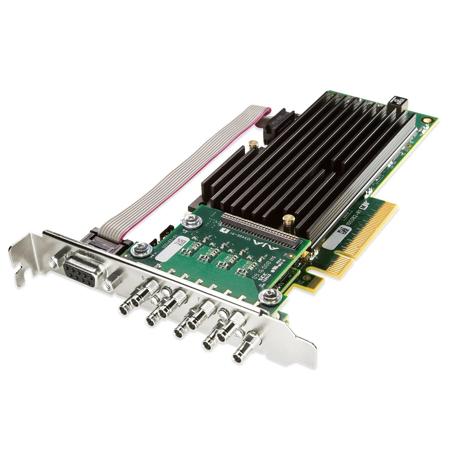

AJA CRV88-9-T-CCF 8-Lane PCIe 2.0 I/O Card with Passive Heat Sink, Independently Configurable, Fanless

Just imagine the possibilities with the CRV88-9-T-CCF 8-Lane PCIe 2.0 I/O Card with Passive Heat Sink. This high-performance, independently configurable I/O card is designed to maximize your video and audio input/output capacity. With the ability to individually configure each SDI connection as either an input or output, you can mix formats for up to eight HD or SD channels on a single card.

As the demand for higher resolutions continues to grow, the CRV88-9-T-CCF I/O card stands ready to meet your needs. You can combine SDI connections for multiple 4K/UltraHD channels, offering incredible flexibility and future-proofing for playout and ingest servers or channel-in-a-box systems.

The CRV88-9-T-CCF I/O card is an ideal solution for AJA Developer Partner applications, providing access to up to eight simultaneous input and output streams on a single PCIe card. This makes it an excellent choice for high-density ingest and output.

Each BNC connection on the CRV88-9-T-CCF can be set programmatically as either an input or output, and each can support a different video format, as long as all formats use the same clock timing. Connections can also be linked together to support dual link or 4K/UltraHD formats.

The CRV88-9-T-CCF I/O card supports 4K (4096 x 2160) and UltraHD (3840 x 2160) High Frame Rate (HFR) workflows. It can work at frame rates of 48p, 50p, and 60p, ensuring smooth motion for the most demanding 4K and UltraHD applications.

The CRV88-9-T-CCF is not just limited to 4K and UltraHD. It also supports multiple 720p and 1080p HD inputs and outputs at frame rates up to 50p and 60p, making it an extremely flexible solution for your current and future needs.

The CRV88-9-T-CCF I/O card also provides one external, switchable LTC/Reference Input connection on the back of the card, with a second LTC input available on an internal header for providing additional reference.

The built-in RS-422 connection, available either as an external connection on the full-sized CRV88-9-T-CCF or as an internal connection on the low profile version, allows control of external devices for frame-accurate ingest and layoffs.

The CRV88-9-T-CCF I/O card also boasts powerful processing capabilities, including 8 frame stores (in or out), 8 color space converters, 4 mixer/keyer widgets, 8 1D LUTs, 8 dual link in, 8 dual link out, and 8 independent 16-channel embedded audio engines.

As part of AJA's Developer Program, the CRV88-9-T-CCF allows partner companies to incorporate AJA products into their systems, leveraging AJA's expertise to develop and support these technologies, saving money and getting their integrated products to market more quickly.

In summary, the CRV88-9-T-CCF 8-Lane PCIe 2.0 I/O Card with Passive Heat Sink is a versatile, high-performance solution for all your video and audio I/O needs.
