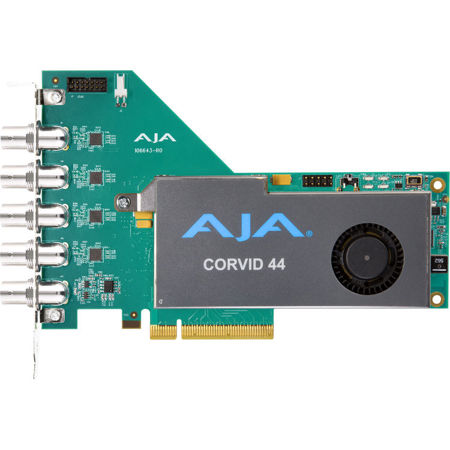

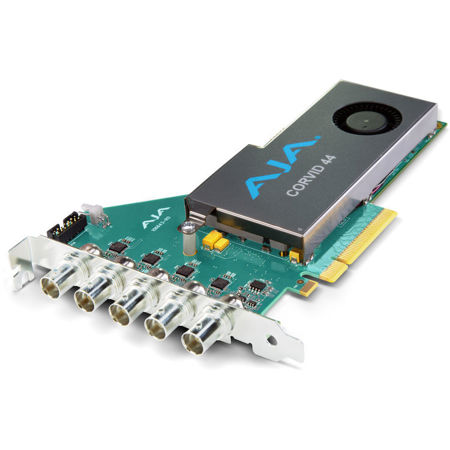

AJA Corvid 44 BNC Flexible Multi-Format I/O Card with Fan

Become a master of video and audio production with the Corvid 44 BNC Flexible Multi-Format I/O Card with Fan. This high-quality, durable card is designed to increase your I/O capacity, offering 3G-SDI connectivity over full-size BNC connectors. Each SDI connection can be individually configured as an input or output, allowing you to mix formats for up to 4 HD or SD channels on a single card.

This innovative card is future-proof, designed to meet the rising demand for higher resolutions. You can combine SDI connections into a single 4K/UHD channel, providing incredible flexibility. The Corvid 44 BNC is a multi-stream, multi-format PCIe I/O card, allowing AJA Developer Partner applications to access up to four simultaneous input and output streams on a single PCIe card. This makes it an ideal solution for a wide variety of medium-density applications.

Each BNC connection on the Corvid 44 BNC with 3G-SDI can be set programmatically as either an input or output, and each can support a different video format, as long as all formats use the same clock timing. Connections can also be linked together to support Dual Link or 4K/UHD formats.

The Corvid 44 BNC supports 4K (4096 x 2160) and UltraHD (3840 x 2160) High Frame Rate (HFR) workflows. It operates at frame rates of 48p, 50p, and 60p, ensuring smooth motion for the most demanding 4K and UHD applications. High frame rates are not limited to 4K and UHD with the Corvid 44 BNC, as it also supports multiple 720p and 1080p HD inputs and outputs at frame rates up to 50p and 60p.

The Corvid 44 BNC also provides one external, switchable LTC/Reference input connection on the back of the card, and a second LTC input is available on an internal header for providing additional reference. A built-in RS-422 connection is available as an external connection on the Corvid 44 BNC, allowing control of external devices for frame-accurate ingest and layoffs.

In summary, the Corvid 44 BNC Flexible Multi-Format I/O Card with Fan is a versatile, reliable, and innovative solution for professional video and audio production.
