AJA D10C2 SDI to Analog Component 10-Bit Analog
See all AJA items

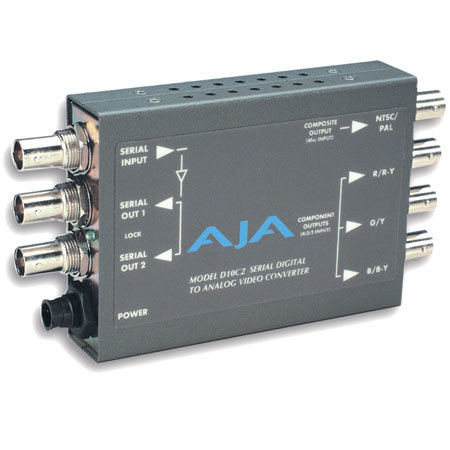

AJA D10C2 SDI to Analog Component 10-bit Analog Converter

SKU: AJD10C2
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

AJA D10C2 Specifications

  • Inputs

    SDI (SMPTE 259M), 1x BNC

  • Outputs

    For Component Input Only (270Mb):
    YPbPr - SMPTE, EBU-N10, Betcam
    RGB, 3 x BNC
    Sync, 1 x BNC
    For Composite Input Only (142/177Mb):
    NTSC/PAL 1 x BNC
    YC (S-Video), 2x BNC
    Re-Clocked Loop-Thru SDI, 2 x BNC

  • D/A Converters

    10-bit, 4x oversampling

  • Frequency Response

    Y +/- .15dB to 5.5Mhz
    C +/- .15dB to 2.5 Mhz (Component)
    C +/- .15dB to 1.3Mhz (Composite)
    Less Than .5% K Factor (2T)

  • Power

    5VDC Regulated, 4 Watts, Power Supply Required

  • Size

    5.8" x 3.1" x 1" (147 x 79 x 25mm)

  • Warranty

    AJA warranty

About AJA D10C2

The AJA D10C2 SDI to Analog Video Converter provides excellent quality 10-bit conversion of SDI to analog component or composite video at a low cost. In the Component mode, the D10C2 outputs are user configurable to YPbPr (SMPTE, EBU-N10), Betacam, or RGB. In the Composite mode, the D10C2 provides 2 composite outputs and a YC (S-Video) output. The D10C2 also provides two re-clocked, loop-thru SDI outputs and a composite sync output (Component mode). All functions are user configurable via dip-switches.

AJA D10C2 Features

  • Excellent Quality 10-bit Universal D/A Conversion
  • Full 10-bit Data Path, 4x Oversampling
  • SDI Input, 2 Re-Clocked, Loop-Thru SDI Outputs
  • Component or Composite Analog Output
  • YPbPr, Betacam, or RGB Component Formats
  • NTSC or PAL Composite Formats
  • Digital Noise Reduction
