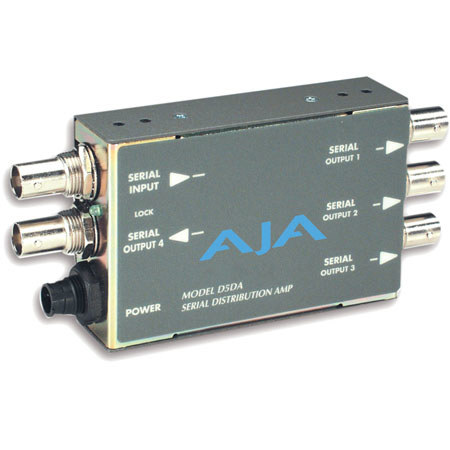

AJA D5DA 1x4 SDI Video Distribution Amplifier
See all AJA items

AJA D5DA 1x4 SDI Video Distribution Amplifier

SKU: AJD5DA
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

AJA D5DA Specifications

  • Formats

    143, 177, 270, 360 Mb, Auto Select

  • Inputs

    1 SDI (SMPTE 259M), 1 x BNC

  • Outputs

    4 SDI (SMPTE 259M), Equalizing and reclocking, 4 x BNC

  • Return Loss

    >15dB - 270Mhz (Input and Output)

  • User Controls

    External Dipswitch
    Pedestal In NTSC Mode
    Narrow/Wide Blanking
    2 or 3 Line Comb

  • Power

    5VDC Regulated, 2 Watts, Power Supply Required (sold separately)

  • Size

    5.1" x 2.4" x 1" (131 x 61 x 25mm)

  • Warranty

    AJA warranty

About AJA D5DA

The AJA D5DA is a multi-format, 1x4 reclocking SDI Distribution Amplifier. The D5DA can be used as a low cost SDI DA or repeater. The SDI input is re-clocked and equalized to 300 meters of cable. In addition, the multi-standard feature allows the D5DA to automatically adapt to 143, 177, 270, or 360Mb SDI inputs.

AJA D5DA Features

  • Compact 1x4 Re-Clocking SDI Distribution Amplifier
  • Automatic Multi-Standard
  • Useful as a Repeater

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Compact 1x4 Re-Clocking SDI Distribution Amplifier
  • Automatic Multi-Standard
  • Useful as a Repeater

What's in the box:

  • AJA D5DA 1x4 SDI Video Distribution Amplifier
  • DWP-U-R1 Power Supply
  • AJA 5 Year Warranty
