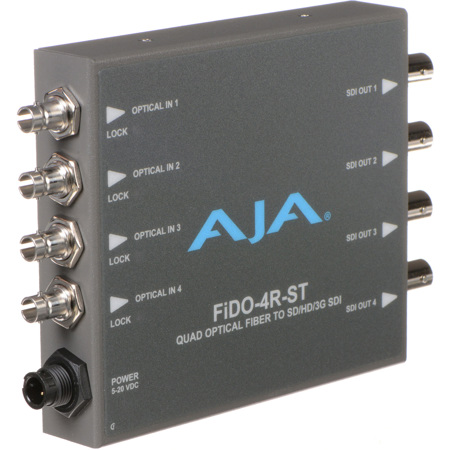

AJA FiDO 4 Channel ST Fiber to 3G-SDI Mini Converter

SKU: AJFIDO4RST MFR: FIDO-4R-ST
Earn VIP Reward Points

Key Features

  • Effortlessly convert ST Fiber to 3G-SDI with this reliable AJA mini converter.
  • Ensure top-notch image quality with auto-select formats up to 3Gb for SDI video.
  • Extend your video reach up to 140m at 3Gb with dependable cable equalization.
  • Enjoy a stable broadcast with >15dB return loss, minimizing signal disruptions.
  • Simplify setup with included power supply and rack mount for broadcast equipment.
  • Trust in AJA's 5-year warranty, securing your wireless video transmitter investment.
See More Product Details
Special Order?Estimated to Ship: 09/15/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$99.99

3 Year

$119.99

4 Year

$154.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

AJA FiDO Specifications

  • Formats

    3Gb, 1.5Gb, 270Mb, Auto Select

  • Video Inputs and Outputs

    SDI (SMPTE 259/292/424), BNC
    4x Single mode optical fiber, ST connectors

  • Cable Equalization(BNC Inputs,1694 coax)

    270mb, 400m / 1312.34'
    1.5Gb, 200m / 656.17'
    3Gb, 140m / 459.32'

  • Input/Output Return Loss (BNC)

    >15db, 270Mb - 3Gb

  • Optical Outputs

    Wavelength: 13 10 nm
    Output Power: -2dBm typical

  • Power

    4.0 watts
    Requires Power Supply (AJA power supply model DWP-U-R1 included)

  • Dimensions / Size

    4.6 x 4.10 x 0.92" / 11.68 x 10.41 x 2.34cm

  • UPC Code

    892448000786

About AJA FiDO

FiDO is a family of SDI/Optical Fiber converters. FiDO allows the transport of SDI, HD-SDI and 3G SDI over distances up to 10km using standard single- mode fiber optic cable, with your choice of LC, ST or SC connectors, depending on the converter model. FiDO converters meet all relevant SMPTE specifications and are rugged, versatile and suitable for indoor or outdoor use.

With 9 models, FiDO offers unmatched flexibility and cost efficiency. FiDO dual channel models allow the conversion of 2 channels - perfect for 3D, dual- link SDI or 2 completely independent SDI channels (for example, SD, HD and 3G can be mixed in any combination). Also, FiDO converters offer electrical isolation useful for eliminating ground loop problems.
FiDO converters come in a compact, low-profile enclosure for use in tight spaces around and behind equipment racks, trucks and crowded facilities.

• Transport of SDI, HD-SDI and 3G HD-SDI over single mode optical fiber
• Auto-detection of video format
• All SDI Ancillary data including embedded audio is passed
• LC, ST OR SC fiber connectors
• Simplex or Duplex models available
• All inputs, either SDI or fiber, are equalized and re-clocked
• ASI compatible
• Useful for eliminating ground loop problems 5-20VDC power supply (included)

Universal Power Supply
All AJA Mini-Converters ship with a Universal Power Supply that includes international plug connections for use around the world.

Compact and Portable
AJA Mini-Converters are small enough to fit behind a monitor, in the back of a rack or directly on a camera rig. A locking power connector can't accidentally pull loose and an optional P-TAP power cable allows for battery power in remote locations

AJA Quality - Guaranteed
All AJA Mini-Converters are covered by a 5-year warranty and AJA's advanced replacement policy. If a replacement is necessary, AJA will ship a new unit immediately without the need to send the original unit back first, ensuring you are up and running again as quickly as possible.

AJA Mini-Matrix
Information on the complete line of AJA Mini-Converters is now available as a mobile app on iOS. The Mini-Converter product line is extensive and this app helps you find the right converter for any situation, wherever you are Individual products have links back to the main AJA website for more details and you can email product information directly from the app. The free AJA Mini Matrix app for iPad and iPhone is available now in the Apple iTunes Store.

Warranty Information

This product has a limited warranty of 60 months.

Product Documents

User Manual

Key Features

  • Effortlessly convert ST Fiber to 3G-SDI with this reliable AJA mini converter.
  • Ensure top-notch image quality with auto-select formats up to 3Gb for SDI video.
  • Extend your video reach up to 140m at 3Gb with dependable cable equalization.
  • Enjoy a stable broadcast with >15dB return loss, minimizing signal disruptions.
  • Simplify setup with included power supply and rack mount for broadcast equipment.
  • Trust in AJA's 5-year warranty, securing your wireless video transmitter investment.

What's in the box:

  • AJA FiDO 4 Channel ST Fiber to 3G-SDI Mini Converter
  • DWP-U-R1 Universal Power Supply
  • Rack Mount Bracket
  • 4 Pin XLR Power Cable
  • AJA 5 Year Limited Warranty
