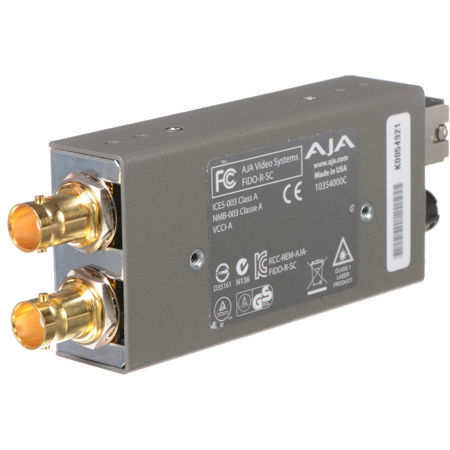

AJA FiDO-R-SC Optical Fiber SC to SDI Converter
See all AJA items

AJA FiDO-R-SC Single Channel Optical Fiber SC to SDI Converter with Dual SDI Outputs

SKU: AJFIDORSC
Be the first to review this item

This item is no longer available.

Recommended Alternatives

AJA OG-FIDO-2R: Picture 1 regular
AJA OG-FIDO-2R 2-Ch Single Mode LC Fiber to 3G-SDI Receiver, DashBoard Support
$845.00
AJA OG-FIDO-2R: Picture 1 regular
AJA OG-FIDO-2R 2-Ch Multi-Mode LC Fiber to 3G-SDI Receiver, DashBoard Support
$1,155.00
AJA OG-FIDO-R: Picture 1 regular
AJA OG-FIDO-R 1-Ch Multi-Mode LC Fiber to 3G-SDI Receiver, DashBoard Support
$905.00
AJA OG-FIDO-R-12G-S: Picture 1 regular
AJA OG-FiDO-R-12G-ST openGear 1-Ch Single Mode ST to 12G-SDI Receiver, DashBoard
$1,185.00
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

AJA FiDO-R-SC Specifications

  • Formats

    3Gb, 1.5Gb, 270Mb, Auto Select

  • Video Inputs and Outputs

    SDI (SMPTE 259/292/296/424), 2x BNC

  • Cable Equalization

    270mb, 400m
    1.5Gb, 200m
    3Gb, 140m (BNC inputs, 1694 coax)

  • Input/Output Return Loss (BNC)

    >15db, 270Mb - 3Gb

  • Optical Outputs

    Wavelength: 13 10 nm
    Output Power: -2dBm typical

  • Power

    +5-20 VDC
    DWP-U-R1 Power Supply included

  • Dimensions

    4.6" x 1.71 " x.85" / 117 x 43.5 x 21.6 mm

  • UPC Code

    00640024605449

About AJA FiDO-R-SC

AJA FiDO-R-SC Single Channel SC Fiber to SDI Converter meet all relevant SMPTE specifications This converter is rugged, versatile and suitable for indoor or outdoor use. Also, FiDO converter offers electrical isolation useful for eliminating ground loop problems. FiDO converter comes in a compact, low-profile enclosure for use in tight spaces around and behind equipment racks, trucks and crowded facilities.

AJA FiDO-R-SC Features

  • Auto-detection of video format
  • All SDI Ancillary data including embedded audio is passed
  • All inputs, either SDI or fiber, are equalized and re-clocked
  • ASI compatible
  • Useful for eliminating ground loop problems
  • 5-20VDC power supply (sold separately)

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Auto-detection of video format
  • ASI compatible
  • Useful for eliminating ground loop problems
  • 5-20VDC power supply (sold separately)

What's in the box:

  • AJA FiDO-R-SC Optical Fiber SC to SDI Converter
  • DWP-U-R1 Power Supply
  • AJA 5 Year Warranty
