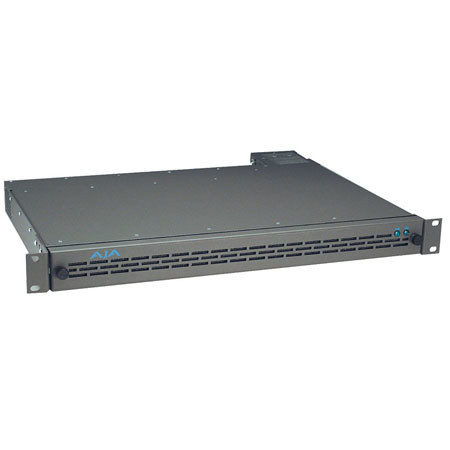

AJA FR1 R-Series 1RU 4 Slot Rackmount Frame
See all AJA items

AJA FR1 R-Series 1RU 4 Slot Rackmount Frame, 40 Watt Capacity with Forced Air Cooling Single Power Supply

SKU: AJFR1
Be the first to review this item

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

AJA FR1 Specifications

  • Capacity

    4 slots, 1 Rack Unit

  • Inputs

    RJ 45 Communications Port/Power Supply Monitoring
    Reference Input, BNC

  • Power

    40 Watt Capacity
    Universal Input 90-240 VAC Power Supply
    Optional Redundant Power Supply, Diode Isolated

  • Cooling

    Multiple-Fan Forced Air

  • Compatibility

    Leitch 6800-series

  • Certifications

    UL, CSE and CE certifications

  • Dimensions (WxDxH)

    19" x 1.75" x 15.75" (1RU)

  • Warranty

    AJA 5 years parts & labor warranty

0 Accessories for AJA FR1 R-Series 1RU 4 Slot Rackmount Frame, 40 Watt Capacity with Forced Air Cooling Single Power Supply

About AJA FR1

The AJA FR1 frame offers space for four modules in a 1-RU space. AJA's own R5 and R20 modules fit into the frame, as well as industry standard modules. Color black reference can be connected at a rear panel BNC for distribution passively to all frame modules.

AJA FR1 Features

  • Dual fan forced-air cooling
  • Optional redundant power supply, diode isolated
  • Universal power supply is auto-ranging from 90 to 260 VAC with 40 Watts Capacity
  • 4 module slots (cells)
  • Each module cell is provided with 9 BNC inputs or outputs
  • Single frame reference BNC distributes passively to all cells
  • Remote power supply monitoring via RJ45 port on rear panel
  • Power LEDs on front panel show power status
  • Compatible with common industry frames - video cards only (Leitch 6800- series)

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Dual fan forced-air cooling
  • Optional redundant power supply, diode isolated
  • Universal power supply is auto-ranging from 90 to 260 VAC
  • 4 module slots (cells)
  • Each module cell is provided
  • Single frame reference BNC distributes passively to all cells
