AJA HDBaseT to SDI Receiver
See all AJA items

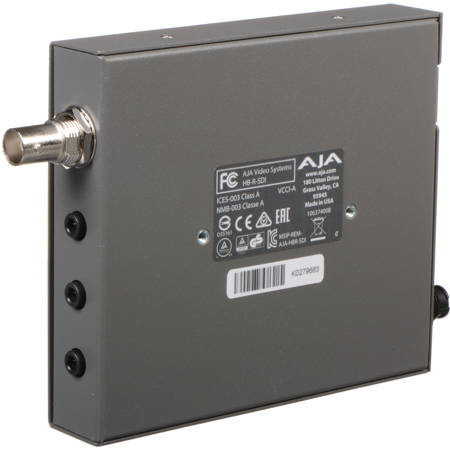

AJA HDBaseT to SDI Receiver

SKU: AJHBRSDI
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

AJA Receiver Specifications

  • Video Display: 1920 x 1080

    Frame Rate at <30fps:
    Color Sampling: 4:2:2
    Max. Cable Length: Cat 5e/6 (100m), Cat 6a/7 (100m)
    Max. Bit Depth: 16-bit

    Frame Rate at >30fps:
    Color Sampling: 4:2:2
    Max. Cable Length: Cat 5e/6 (100m), Cat 6a/7 (100m)
    Max. Bit Depth: 12-bit

    Frame Rate at >30fps:
    Color Sampling: 4:2:2
    Max. Cable Length: Cat 5e/6 (70m), Cat 6a/7 (100m)
    Max. Bit Depth: 16-bit

  • Video Display: 2048 x 1080

    Frame Rate at <30fps:
    Color Sampling: 4:2:2
    Max. Cable Length: Cat 5e/6 (100m), Cat 6a/7 (100m)
    Max. Bit Depth: 16-bit

    Frame Rate at >30fps:
    Color Sampling: 4:2:2
    Max. Cable Length: Cat 5e/6 (100m), Cat 6a/7 (100m)
    Max. Bit Depth: 12-bit

    Frame Rate at >30fps:
    Color Sampling: 4:2:2
    Max. Cable Length: Cat 5e/6 (70m), Cat 6a/7 (100m)
    Max. Bit Depth: 16-bit.

  • Input

    1x RJ45, HDBaseT

  • Video Output

    3G-SDI, SMPTE-259/292/424 (with embedded audio), 1x BNC

  • Video Output Formats

    2048x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    2048x1080PsF 23.98, 24, 25, 29.97, 30 (option to convert from progressive HDBaseT input)
    1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    1920x1080PsF 23.98, 24, 25, 29.97, 30 (option to convert from progressive HDBaseT input)
    1920x1080i 25, 29.97, 30 (50, 59.94, 60 fields)
    1280x720p 25, 29.97, 30
    525i, 625i (525p, 625p, 480p, 576p inputs from HDBaseT are converted to 525i, 625i)

  • Audio Outputs

    Eight channels of embedded audio supported
    Select Ch 1-8 or Ch 9-16
    24-bit/48 KHz

  • HDCP

    HDCP Compliant

  • Control Data Ports: RS-232 Extension

    1x 1/8" TRS connector, Extends 2-way serial device control signals up to 115.2k baud

  • Control Data Ports: RS-232 Cable Option

    The RS-232 pinout diagram provided below pertains to the AJA cable bundle provided as an optional purchase

  • IR Extension Input & Output Ports

    1x 1/8" TRS connector, transmit port
    1x 1/8" TRS connector, receive port

  • IR/RS-232 Cable Kit Option

    Order HB-CABLE-KIT option including:
    2x IR 1/8" TRS Cable - 1.5 meters
    2x RS-232 Cable - .35 meters (for both male and female DB9 connections)

  • Power

    +5 to 20V DC regulated, 9W max
    AJA external power supply model DWP-U-R1 (included):
    100-240V, 50/60Hz universal input

  • Operating Temperature

    0 to 40 deg. C / 32 to 104 deg. F

  • Operating Relative Humidity

    10-90% non-condensing

  • Operating Altitude

    <3000m (<10000')

  • Safe Storage Temperature (Power OFF)

    -40 to 60 deg. C / -40 to 140 deg. F

  • Dimensions

    5.8 x 4.0 x 0.9" / 14.73 x 10.16 x 2.29cm

  • UPC Code

    00892448000762

About AJA Receiver

The HB-T-SDI and HB-R-SDI offer an easy solution for extending SDI signals up to 100 meters over CAT5 (or better) cable, utilizing the industry standard HDBaseT protocol. Bi-directional IR and RS- 232 for device control is also supported, making these Mini-Converters ideal in a variety of scenarios including: fixed installation AV, digital signage, live events, post production/network/studio environments and on set.

• HDBaseT Certified Signal Extender
• Converts HDBaseT to 3G-SDI
• Extend uncompressed SDI signals up to 100m over CAT5 (or better) cable
• Configure via USB port and supplied Mini-Config software
• IR IN and OUT
• RS-232 device control connection

Universal Power Supply
All AJA Mini-Converters ship with a Universal Power Supply that includes international plug connections for use around the world.

Compact and Portable
AJA Mini-Converters are small enough to fit behind a monitor, in the back of a rack or directly on a camera rig. A locking power connector can't accidentally pull loose and an optional P-TAP power cable allows for battery power in remote locations.

AJA Quality - Guaranteed
All AJA Mini-Converters are covered by a 5-year warranty and AJA's advanced replacement policy. If a replacement is necessary, AJA will ship a new unit immediately without the need to send the original unit back first, ensuring you are up and running again as quickly as possible.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • AJA HDBaseT to SDI Receiver
  • AJA 5 Year Limited Warranty
