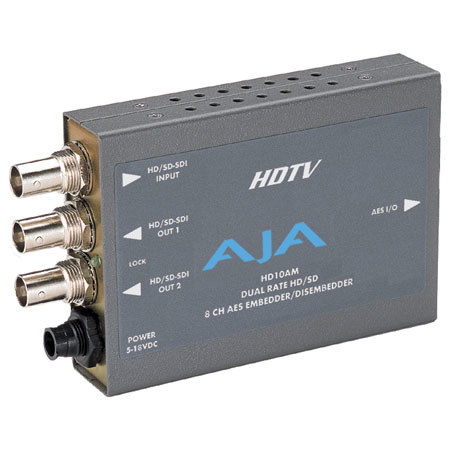

AJA HD10AM HD/SD 8-Channel AES Embedder/Disembedder
See all AJA items

AJA HD10AM HD/SD 8 Channel AES Embedder/Disembedder - PLEASE NOTE: POWER SUPPLY SOLD SEPARATELY

SKU: AJHD10AM
Be the first to review this item

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

AJA HD10AM Specifications

  • Video Formats

    HD SMPTE 292/296/274M
    SD SMPTE 259M (Automatic Configuration)

  • Audio Data Formats

    AES3-2003
    SMPTE 337M

  • Video Input

    HD-SDI or SDI BNC

  • Video Outputs

    HD-SDI or SDI BNC, 2 x BNC

  • Audio Inputs

    4 x AES3 110 ohm XLR, Pro format

  • Audio Outputs

    4 x AES3 110 ohm XLR, Pro format

  • Embedded Audio

    SMPTE 272M (SD): 20-bit, 48KHz synchronous
    SMPTE 299M (HD): 24 bit, 48KHz synchronous

  • Video Processing Delay

    HD Mode: 7S
    SD Mode: 19S

  • Audio Processing Delay

    Disembed Delay: 290S
    Embed Delay (SRC OFF): 290S
    Embed Delay (SRC ON): 1500S

  • Sample Rate Converter Resolution

    24-bits

  • User Controls

    External Dipswitch
    Embedder on/off, Ch pairs 1/2 - 7/8
    Input group select, 1/2, 3/4
    Output Group Select, 1/2, 3/4
    SRC Bypass
    AUX (pass or delete incoming ancillary data)

  • Power

    5-18V, 5 watts. Requires power supply.

  • Size

    5.8" x 3.1" x 1 (147 x 79 x 25mm)

  • Warranty

    AJA 5 years parts & labor warranty

1 Accessories for AJA HD10AM HD/SD 8 Channel AES Embedder/Disembedder - PLEASE NOTE: POWER SUPPLY SOLD SEPARATELY

  • All Accessories (1)
  • Batteries & Power Supply (1)
Core SWX XP-AJA-5 Powertap to AJA MiniConverter Cable
Core SWX XP-AJA-5 Powertap to AJA MiniConverter Cable
$152.00

About AJA HD10AM

The AJA HD10AM is a dual rate 8 channel AES audio Embedder/Disembedder. The Disembedder is always functional providing 4 AES outputs. The Embedder is user selectable, on a channel pair basis, to either "pass" SDI input audio or to embed input AES audio from the breakout cable. AES inputs are sample rate converted to a 48KHz rate synchronous to the video input. The HD10AM automatically detects and configures to the input video standard.

AJA HD10AM Features

  • Dual rate HD-SDI/SDI Embedder/Disembedder
  • 8 Channel AES I/O
  • Supplied breakout cable for balanced AES - XLR connectors
  • HD-SDI/SDI input
  • 2 HD-SDI/SDI outputs (following input)
  • Dipswitch configuration
  • 5-18VDC Power

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Dual rate HD-SDI/SDI Embedder/Disembedder
  • 8 Channel AES I/O
  • HD-SDI/SDI input
  • 2 HD-SDI/SDI outputs (following input)
  • Dipswitch configuration
  • 5-18VDC Power

What's in the box:

  • AJA HD10AM HD/SD Audio Embedder / Disembedder
  • Breakout Cable
  • AJA 5 Years Parts & Labor Warranty
