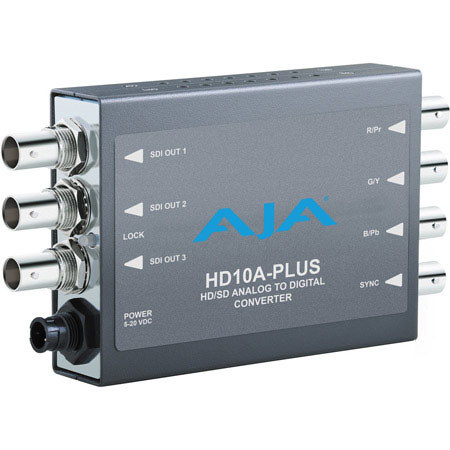

AJA HD10A-Plus Analog to HD/SD-SDI Mini-Converter, 3x HD/SD-SDI Output, SD Mode Supports NTSC and PAL

SKU: AJHD10APLUS

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

AJA HD10A-PLUS Specifications

  • Formats

    525i/625i, 1080i 50/59.94/60 Hz
    1080psf 23.98/24/25 Hz
    720p 50/59.94/60 Hz

  • Inputs

    HD component YPbPr, RGB (SMPTE-274), BNC
    SD component (Betacam,EBU-N10)/composite/YC (S-Video), BNC
    External Sync, BNC

  • Outputs

    HD/SD-SDI, SMPTE-259/292/296M 3 x BNC

  • Frequency Response

    Y +0, -.5 dB to 30 MHz
    C +/- .25 dB to 15 MHz

  • User Controls

    External Dipswitch
    Component/Composite (SD Only)
    S-Video (off/on) (SD Only)
    Pedestal Present (on/off) (SD Only)
    Format (YPbPr/RGB)
    NTSC-J (off/on) (SD Only)
    SYNC (INT/EXT)

  • Power

    +5-20 VDC, 4 watts
    DWP-U-R1 Power Supply Included

  • Dimensions

    5.8 x 3.1 x 1" (147.32 x 78.74 x 25.4mm)

About AJA HD10A-PLUS

The AJA HD10A-Plus Analog to HD/SD-SDI Mini-Converter is a miniature, high-quality, 10-bit analog to digital converter for HD workflows. The HD10A-Plus can add an HD or SD SDI output to cameras, VTRs, or other analog-only equipment, even computers with HD RGB graphics. The HD10A-Plus accepts HD YPbPr or RGB analog and outputs three duplicate SDI signals. It works in 1080i, 1035i, 1080psf and 720p with internal or external sync (tri-level). The HD10A-Plus also includes SD mode support for PAL and NTSC needs.

Performance
HD10A-Plus builds on AJA's successful HD10A Analog to Digital Mini-Converter with new components that allow the same level of performance and capability users have come to expect from AJA, but at a lower price point. End-to-end 10-bit processing ensures the highest quality conversion and output
Extensive format support
HD10A-Plus accepts a wide variety of analog input signals from component analog HD cameras and VTRs to computer RGB signals. Breathe new life into older analog equipment by converting the analog outputs to digital for integration into modern workflows
Easy configuration
HD10A-Plus can be completely configured using external DIP switches for fast and easy configuration in the field, within mobile and AV setups or behind a rack in your facility
Highly portable
HD10A-Plus's low power consumption and compact size make it perfect for on set use, where it can run off battery power, as well as throughout a facility or AV installation for on-the-spot conversion.

What's in the box:

  • AJA HD10A-Plus Analog to HD/SD-SDI Mini-Converter
  • DWP-U-R1 Universal Power Supply
  • AJA 5 Years Warranty
