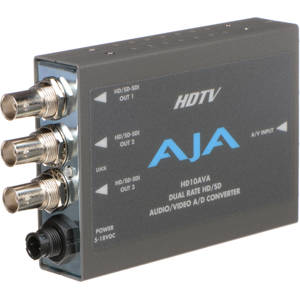

AJA HD10AVA SD/HD Analog Composite/Component Video
See all AJA items

AJA HD10AVA SD/HD Analog Composite or Component Video & 4-Channel Analog Audio to SD/HD-SDI with Embedded Audio - PLEASE NOTE: POWER SUPPLY SOLD SEPARATELY

SKU: AJHD10AVA

This item is no longer available.

See all Used options (2) from $89

Recommended Alternatives

AJA FS1-X: Picture 1 regular
AJA FS1-X Frame Synchronizer & Converter with MADI Audio
$4,575.00
AJA OG-4K2HD: Picture 1 regular
AJA OG-4K2HD openGear 4K/UltraHD-SDI to 3G-SDI Down-Converter
$909.00
See More Recommendations
Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

AJA HD10AVA Specifications

  • Formats

    1080i 50/59.94/60 Hz
    1080psf 23.98/24 Hz
    1035i 50/59.94/60 Hz
    720p 50/59.94/60 Hz

  • Video Input

    HD component YPbPr, (SMPTE-274), 3 BNC
    SD component/composite/YC (S Video), 3 BNC

  • Video Outputs

    SDI, HD-SDI, SMPTE-259/292/296, 3 BNC

  • Audio Inputs

    4 Channel Balanced, 4 XLR

  • Video A/D

    12 bits

  • Audio A/D

    24 Bits, 48Khz

  • Audio levels

    +12dBu, +15dBu, +18dBu, +24dBu, Full Scale Digital

  • User Controls

    External Dipswitch
    Component/Composite (SD)
    Composite/YC (SD)
    Pedestal Present (on/off) (SD)
    Audio Input Level
    Embed Audio on/off

  • Power

    5-18V, 5 watts
    DWP-U-R1 Power Supply included

  • Size

    5.8" x 3.1" x 1 (147 x 79 x 25mm)

  • Warranty

    AJA 5 years parts & labor warranty

  • UPC Code

    892448000922

1 Accessories for AJA HD10AVA SD/HD Analog Composite or Component Video & 4-Channel Analog Audio to SD/HD-SDI with Embedded Audio - PLEASE NOTE: POWER SUPPLY SOLD SEPARATELY

  • All Accessories (1)
  • Batteries & Power Supply (1)
Core SWX XP-AJA-5 Powertap to AJA MiniConverter Cable
Core SWX XP-AJA-5 Powertap to AJA MiniConverter Cable
$152.00
Recommended

About AJA HD10AVA

The AJA HD10AVA is a miniature, high-quality, audio/video, HD/SD A/D converter. The HD10AVA automatically detects the video input format and embeds the audio inputs in the SDI/HD-SDI outputs. The HD10AVA is useful for adding an SDI/HD-SDI audio/video output to tape decks or any professional video equipment with analog outputs.

The HD10AVA is especially useful for adding HD-SDI outputs to most HDV cameras or decks by using the component outputs of such devices. The HD10AVA uses a breakout cable for audio/video inputs and provides 3 SDI-HD-SDI on BNCs.

AJA HD10AVA Features

  • High-Quality SD/HD Audio/Video A/D Converter
  • SD Component, Composite or Y/C Video Input
  • HD Analog Component Video Input
  • Four Channel Balanced Analog Audio Input
  • 3 SDI/HD-SDI w/embedded Audio Outputs
  • 12 Bit Video, 24 Bit Audio A/Ds
  • Automatic Multi-Standard
  • External Dip Switch Configuration
  • LOCK LED indicates type of input source (SD-Green or HD-Red)
  • 5-18V Power

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • High-Quality SD/HD Audio/Video A/D Converter
  • SD Component, Composite or Y/C Video Input
  • HD Analog Component Video Input
  • Four Channel Balanced Analog Audio Input
  • 3 SDI/HD-SDI w/embedded Audio Outputs
  • 12 Bit Video, 24 Bit Audio A/Ds

What's in the box:

  • AJA HD10AVA SD/HD Analog Composite/Component Video
  • Breakout Cable
  • DWP-U-R1 Power Supply
  • AJA 5 Year Warranty
