AJA Hi5 3G/Dual-link/HD/SD-SDI TO HDMI 1.3a Converter
See all AJA items

AJA Hi5 3G/Dual-link/HD/SD-SDI to HDMI 1.3a Video and Audio Converter

SKU: AJHI53G
Be the first to review this item

This item is no longer available.

Recommended Alternatives

undefined undefined: Picture 1 regular
AJA Hi5-12G-R 12G-SDI to HDMI 2.0 Mini-Converter with Fiber Receiver
$1,399.00
undefined undefined: Picture 1 regular
AJA Hi5-12G-R-ST 12G-SDI to HDMI 2.0 Mini-Converter with ST Fiber Receiver
$1,550.00
$1,399.00
undefined undefined: Picture 1 regular
AJA Hi5-12G-TR 12G-SDI to HDMI 2.0 Mini-Converter with Fiber Transceiver
$1,555.00
undefined undefined: Picture 1 regular
AJA OG-ROI-SDI openGear 3G-SDI to 3G-SDI/HDMI Scan Converter
$1,399.00
undefined undefined: Picture 1 regular
AJA FS1-X Frame Synchronizer & Converter with MADI Audio
$4,941.00
$4,575.00
See More Recommendations
Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

AJA Hi5-3G Specifications

  • Input Formats

    525i, 625i,
    720p 50/59.94/60,
    1080i 50/59.94/60,
    1080p 23.98/24/25/29.97/30/50/59.94/60
    1080psF 23.98/24/25/29.97/30
    YCbCr/RGB/XYZ 10/12-bit

  • Video Inputs

    3G, HD and SD-SDI (auto-selected),
    SMPTE-259/274/292/296/372/424/425, 2x BNC

  • HDMI Video Output

    HDMI 1.3a/DVI 1.0
    4:2:2 YCbCr and 4:4:4 YCbCr/RGB
    24/30/36-bit

  • HDMI Audio Output

    24-bit, with 2 or 8 embedded channels
    RCA-style analog outputs at -10dBV(User Selectable channels)

  • HDMI Output

    Standard Type A connector

  • HDCP

    The Hi5-3G does not encode the HDMI output with HDCP encryption. By definition, SDI/HD-SDI inputs to the Hi5-3Gare unencrypted. The HDMI specification requires HDMI monitors to support unencrypted inputs.

  • User Controls

    USB port used with supplied cable and software application to configure device via PC/Mac

  • Power

    +5 VDC regulated, 3 watts
    DWP-U-R1 Power Supply is included

  • Size

    5.8" x 3.1" x 1 (147mm x 79mm x 25mm)

  • Warranty

    AJA 5 years parts & labor warranty

1 Accessories for AJA Hi5 3G/Dual-link/HD/SD-SDI to HDMI 1.3a Video and Audio Converter

  • All Accessories (1)
  • Batteries & Power Supply (1)
Core SWX XP-AJA-5 Powertap to AJA MiniConverter Cable
Core SWX XP-AJA-5 Powertap to AJA MiniConverter Cable
$152.00

About AJA Hi5-3G

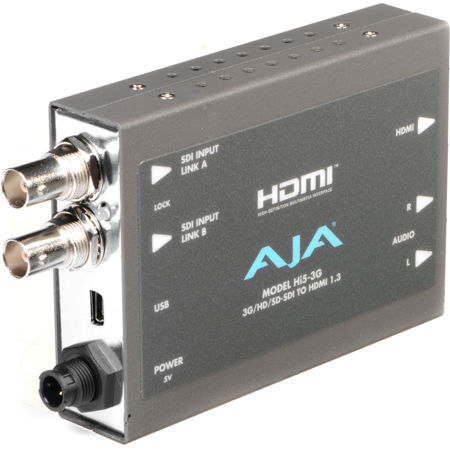

The AJA Hi5-3G converts 3G-SDI, dual or single link HD-SDI, or SD-SDI to HDMI v1.3a for driving HDMI monitors. HDMI v1.3a capability at 30 bits per pixel allows full support of the latest 10 bit monitors. Audio is supported in the HDMI output allowing a convenient single cable audio/video connection. The Hi5-3G provides 2 Channel RCA style audio outputs for separate audio monitoring if needed. USB connectivity allows for easy PC/Mac setup and field upgrades.

AJA Hi5-3G Features

  • 3G/HD/SD-SDI to HDMI
  • SMPTE425M-AB input
  • Full HDMI 1.3a support including Deep Color 30- and 36-bit video per pixel (24-bit also supported) & 2 or 8 channels of embedded audio
  • Additional 2 channel RCA analog audio output (User assignable channels)
  • Setup via PC/Mac using USB port and supplied USB cable (USB configuration software application supplied on CD)
  • HDMI cable supplied
  • Uses 5V power (supply sold separately)

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • 3G/HD/SD-SDI to HDMI
  • SMPTE425M-AB input
  • HDMI cable supplied
  • Uses 5V power (supply sold separately)

What's in the box:

  • AJA Hi5 3G 1.3a Video and Audio Converter
  • HDMI Cable
  • DWP-U-R1 Power Supply
  • Software CD
  • AJA 5 Years Parts & Labor Warranty
