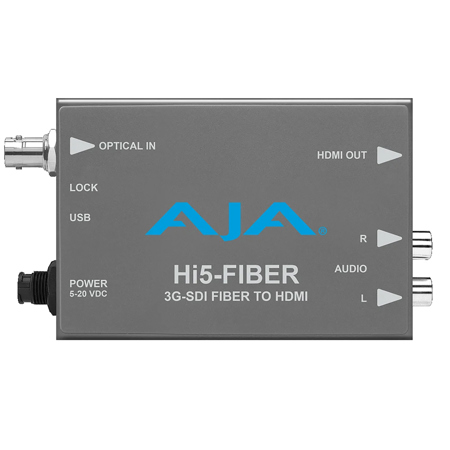

AJA Hi5-Fiber 3G-SDI Over Fiber to HDMI Video and Audio Converter
See all AJA items

AJA Hi5-Fiber 3G-SDI Over Fiber to HDMI Video and Audio Converter

SKU: AJHI5FIBERR2 MFR: HI5-FIBER-R2
Be the first to review this itemAsk a Question
$915.00
OR
$77/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Seamlessly convert 3G-SDI over Fiber to HDMI, ensuring broad compatibility for your video setups.
  • Experience crystal-clear visuals with support for various video formats, including 2K, HD, and SD resolutions.
  • Effortlessly integrate into your existing system with easy-to-use plug-and-play functionality.
  • Enjoy reliable, low-latency video and audio conversion, perfect for live productions and monitoring.
  • Benefit from a durable, compact design, making this video converter highly portable for on-the-go professionals.
  • Connect with confidence, knowing your audio is embedded and selectable from 16 channels for superior sound.
See More Product Details
Temporarily On Backorder?Expected Availability: 01/2026
Free Shipping

See Options

1
Add to ListGet Sale Alert

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

AJA Hi5-Fiber Specifications

  • Video Formats

    (2K) 2K x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    (2K) 2K x 1080PsF 23.98, 24, 25, 29.97, 30
    (HD) 1080i 50, 59.94, 60
    (HD) 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    (HD) 1080PsF 23.98, 24, 25, 29.97, 30
    (HD) 720p 50, 59.94, 60
    (SD) 625i
    (SD) 525i

  • Video Input

    Single mode optical fiber, ST connector supporting SMPTE-259/292/424 3G/HD/SD-SDI

  • Video Outputs

    HDMI with embedded audio up to 8-Channels (selectable by Mini-Config)
    12-bit
    10-bit YCbCr 4:2:2
    8-bit RGB 4:4:4

  • Audio Input

    SDI embedded audio, select from 16-Channels

  • Audio Output

    2-Channel RCA style (-10 dBu nominal)

  • Power

    Universal power supply included
    100-240V, 50/60 Hz universal input
    +5V DC regulated, 3 watts

  • Environment

    Safe Operating Temperature: 32 to 104 Degree F (0 to 40 Degree C)
    Safe Storage Temperature (Power OFF): -40 to 140 Degree F (-40 to 60 Degree C)
    Operating Relative Humidity: 10-90% noncondensing
    Operating Altitude: <10,000' (<3,000m)

  • Dimensions (W x D x H)

    4.6 x 2.4 x 1" (116.84 x 60.96 x 25.4mm)

  • Weight

    7.05 oz (200g)

  • UPC Code

    812321032888

About AJA Hi5-Fiber

Hi5-Fiber converts 3G-SDI over single mode 1310 nm Fiber optic cable (ST-style Fiber connector) to HDMI for driving HDMI monitors. Embedded 8-channel 3G-SDI audio is supported in the HDMI output allowing a convenient single cable audio/video connection. Hi5-Fiber provides 2-Channel RCA style audio outputs for separate audio monitoring if needed.

USB and Mini-Config Support
AJA's free Mini-Config software can be used with any USB enabled AJA Mini-Converter and provides an easy to use graphical interface with detailed information about the current input and output formats. Control all the parameters of any supported AJA Mini-Converter as well as loading firmware updates from AJA that add new features and functionality.

Universal Power Supply
Customers can purchase a spare universal power supply for use with any of their Mini-Converters. This universal power supply includes international plug connections for use around the world.

Compact and Portable
AJA Mini-Converters are small enough to fit behind a monitor, in the back of a rack, or directly on a camera rig. A locking power connector can't accidentally pull loose and an optional P-TAP power cable allows for battery power in remote locations.

AJA Hi5-Fiber Features

  • Fiber optic 3G-SDI to HDMI
  • Supports single mode 1310 nm fiber optic cable with ST receiver
  • Full HDMI support including embedded audio
  • Additional 2-Channel RCA jack audio output
  • No configuration necessary

Warranty Information

This product has a limited warranty of 60 months.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Seamlessly convert 3G-SDI over Fiber to HDMI, ensuring broad compatibility for your video setups.
  • Experience crystal-clear visuals with support for various video formats, including 2K, HD, and SD resolutions.
  • Effortlessly integrate into your existing system with easy-to-use plug-and-play functionality.
  • Enjoy reliable, low-latency video and audio conversion, perfect for live productions and monitoring.
  • Benefit from a durable, compact design, making this video converter highly portable for on-the-go professionals.
  • Connect with confidence, knowing your audio is embedded and selectable from 16 channels for superior sound.

What's in the box:

  • AJA Hi5-Fiber 3G-SDI Over Fiber to HDMI Video and Audio Converter
  • 3.3' HDMI Cable
  • Universal Power Supply
  • AJA 5 Year Limited Warranty
