AJA Video Io 4K and HD I/O Capture and Output Device for Thunderbolt 2 Specifications

  • Video Formats

    SD:
    525i 29.97
    625i 25
    HD:
    720P 50, 59.94, 60
    1080i 50, 59.94, 60
    1080PsF 23.98, 24, 25, 29.97, 30
    1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    2K:
    2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    2048 x 1080PsF 23.98, 24, 25, 29.97, 30
    4K:
    3840 x 2160P 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    3840 x 2160PsF 23.98, 24, 25
    4096 x 2160P 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    4096 x 2160PsF 23.98, 24, 25

  • Video Input

    3G-SDI, SMPTE-259/292/296/424, 8 -or 10-bits
    Single Link 4:2:2 or 4:4:4 (1 x BNC)
    Dual Link HD 4:4:4 (2 x BNC)
    2K HSDL (High Speed Data Link) 4:4:4, (2 x BNC)
    4K/UltraHD 4:4:4 (4 x BNC)
    HDMI v1.4:
    30/36 bits/pixel, RGB or YUV, 2.25Gbps.
    SD, HD, 2K and UHD.

  • Video Output

    3G-SDI, SMPTE-259/292/296/424, 8 -or 10-bits
    Single Link 4:2:2 or 4:4:4 (1 x BNC)
    Dual Link HD 4:4:4 (2 x BNC)
    2K HSDL (High Speed Data Link) 4:4:4, (2 x BNC)
    4K/UltraHD 4:4:4 (4 x BNC)
    HDMI v1.4:
    30/36 bits/pixel, RGB or YUV, 2.25Gbps.
    SD, HD and 2K. UHD with HFR support up to 60p 4:2:0

  • Audio Input Digital

    16-channel, 24-bit SDI embedded audio, 48kHz sample rate, Synchronous
    8-channel, 24-bit HDMI embedded audio, 48kHz sample rate, Synchronous

  • Audio Output Digital

    16-channel, 24-bit SDI embedded audio, 48kHz sample rate, Synchronous
    8-channel, 24-bit HDMI embedded audio, 48kHz sample rate, Synchronous

  • Audio Output Analog

    8-channel, 24-bit D/A analog audio, 48kHz sample rate, balanced, using industry-standard 8 x XLR on DB-25 breakout cable (Breakout cable NOT included)
    +24dbu Full Scale Digital (0dbFS)
    +/- 0.2db 20 to 20kHz Frequency Response

  • Downstream Keyer

    Supports graphics with alpha channel over video, matte or frame buffer, or frame buffer content over incoming video or matte

  • 4K/UHD Down-Conversion

    Real time, dedicated 4K down-conversion output (1 x BNC)
    4K to 2K down-conversion
    UltraHD to HD down-conversion

  • Reference and LTC I/O

    1x BNC LTC Output
    1 x BNC assignable to Reference video or LTC input
    Reference:
    Analog Color Black (1V) or Composite Sync (2 or 4V)
    Non-terminating

  • Interface

    Thunderbolt 2 (2 x)

  • Power

    10-20V, 30-60W

  • Machine Control

    1 x RS-422, Sony 9-pin protocol

  • UPC Code

    892448000373

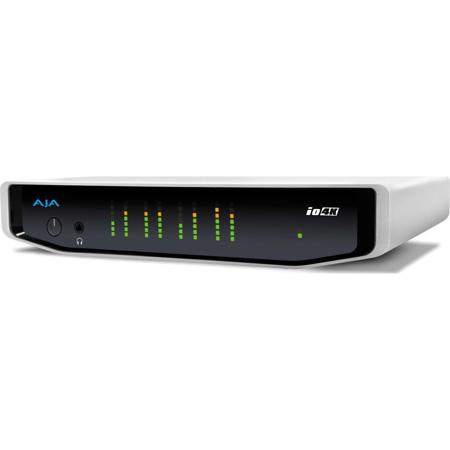

About AJA Video Io 4K and HD I/O Capture and Output Device for Thunderbolt 2

The AJA Io 4K is the next evolution of capture and output hardware offering a full set of professional video and audio connectivity with support for the latest 4K and UltraHD devices. The power of Thunderbolt 2 enables Io 4K to handle a wide range of formats from SD to HD, UltraHD and full 4K over both SDI and HDMI with High Frame Rate (HFR) support up to 60p. The dual Thunderbolt 2 ports on Io 4K allow you to daisy chain additional peripherals such as high-resolution displays and high-capacity storage with plenty of flexibility. Io 4K's elegant, aluminum construction is strong enough to survive the rigors of life in the field, while looking beautiful in your edit suite. Io 4K seamlessly integrates with leading post-production and delivery tools from Apple, Adobe, Avid, Autodesk, Telestream and many more.

Professional connectivity
The latest Thunderbolt 2 technology allows even greater bandwidth between host computer systems and properly engineered Thunderbolt devices. AJA's Io 4K takes full advantage of this improved throughput to allow capture and output of video signals from SD to 4K and everything in between. Io 4K supports 4K, UltraHD, 3G-SDI, Dual Link, HD-SDI and SD-SDI as well as UHD and HD over HDMI 1.4a for both capture and output. A dedicated, real time, always-on HD-SDI output allows Io 4K to simultaneously output to HD monitors when working at 4K or UHD resolutions, providing cost-effective monitoring options in addition to full resolution outputs.

Futureproof
With more affordable high-resolution cameras available, many productions are opting to shoot at a higher resolution even if final delivery is still in SD or HD. This offers the flexibility to re-master at higher resolutions in the future. Io 4K can support your current SD and HD workflows and provides a path to move to higher resolution productions and also higher frame rate support whenever the need arises. The realtime downconverter also means you can work at higher resolutions and easily create lower resolution deliverables without the need to recapture or re-edit. All at a size that's small enough to easily take on-set or in the field.

Monitor 4K in HD
When working at 4K resolutions, Io 4K outputs a high-quality HD-SDI down-converted signal on a dedicated BNC connector. This HD signal can be used to output 4K projects directly to HD recorders for broadcast and for easy viewing of 4K images on HD monitors during post-production.

Powerful
Thunderbolt 2 technology provides an incredible amount of bandwidth on a single Thunderbolt cable. Io 4K capitalizes on this increased capacity to allow up to 4K signals at frame rates up to 50p/60p to be captured and output. With dual Thunderbolt 2 ports, Io 4K can daisy chain additional devices together such as high-resolution displays and high-capacity storage for a complete, portable solution that's powerful enough to meet the demands of professional production.

Integrated Audio
Embedded 16-channel SDI and 8-channel HDMI audio are supported as well as analog audio outputs via a standard DB-25 connection. Stereo monitoring is also possible with 2 x RCA outputs and a front panel mini-TRS headphone jack.

Sync up
Io 4K can be locked to an external reference for integration into larger productions, or feed LTC in and out to ensure footage captured with Io 4K has the proper timecode.

Machine control
An RS-422 port allows control of tape decks for frame-accurate captures and layoffs.

Extensive software support
AJA hardware is supported by an extensive list of professional software for editing, visual effects, graphics and more allowing the same AJA device to be used by many different applications on the same system. In addition, AJA provides several free applications that enable you to utilize the power of your AJA hardware even without having to run a particular software package. This allows you to create unique workflows without tying up valuable resources unnecessarily.

What's in the box:

  • AJA Video Io 4K and HD I/O Capture and Output Device
  • AC Adapter
  • AJA Video 3 Year Limited Warranty
