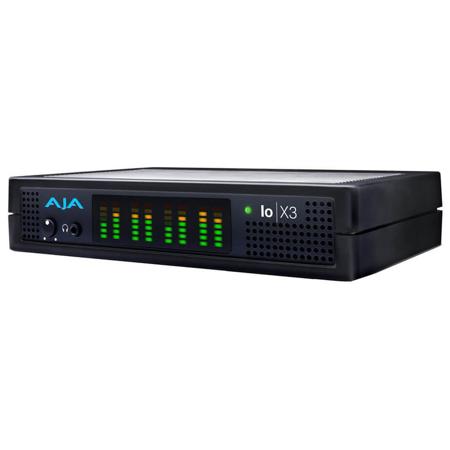

AJA Io X3 Multi-Channel 2K Audio and Video I/O Capture Device with Thunderbolt 3
AJA Io X3: Picture 1 thumbnail
AJA Io X3: Picture 2 thumbnail
See all AJA items

AJA Io X3 Multi-Channel 2K Audio and Video I/O Capture Device with Thunderbolt 3

SKU: AJIOX3R MFR: IO-X3-R0
Be the first to review this itemAsk a Question
$1,835.00
OR
$153/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Capture pristine video with the AJA Io X3, supporting up to 2K resolution for clear, detailed imagery.
  • Experience low latency video I/O via Thunderbolt 3, perfect for live streaming and broadcast workflows.
  • Enjoy broad compatibility with HDMI and SDI inputs/outputs, integrating seamlessly into your existing setup.
  • Utilize multi-channel audio I/O for professional sound, ensuring high-quality audio capture and output.
  • Achieve stable connections for uninterrupted video capture, crucial for live events and critical recordings.
  • Affordable and feature-rich, this video capture device offers exceptional value for content creators.
See More Product Details
Temporarily On Backorder?Expected Availability: 10/2025Request assistance or get notified
Free Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

2 Year

$89.99

3 Year

$149.99

4 Year

$194.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?TIMOTHY O : work

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

AJA Io X3 Specifications

  • Video Formats

    (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
    (2K) 2048 x 1080PsF 23.98, 24, 25
    (HD) 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    (HD) 1080PsF 23.98, 24, 25, 29.97, 30
    (HD) 1080i 50, 59.94, 60
    (HD) 720p 50, 59.94, 60
    (SD) 625i 50
    (SD) 525i 59.94

  • Video Input Digital

    3G-SDI, SMPTE 425
    RGB 4:4:4 12-bit, YCbCr 4:2:2 10-bit
    1.5G-SDI, SMPTE 292M
    Single Link HD-SDI YCbCr 4:2:2 10-bit
    270 Mbps SDI, SMPTE 259M-C
    YCbCr 4:2:2 10-bit, 8-bit
    HDMI v1.4b
    30/36-bits/pixel, RGB or YUV, 2.25 Gbps
    2K, HD, and SD

  • Video Output Digital

    3G-SDI, SMPTE 425
    RGB 4:4:4 12-bit, YCbCr 4:2:2 10-bit
    1.5G-SDI, SMPTE 292M
    Single Link HD-SDI YCbCr 4:2:2 10-bit
    270 Mbps SDI, SMPTE 259M-C
    YCbCr 4:2:2 10-bit, 8-bit
    HDMI v1.4b
    30/36-bits/pixel, RGB or YUV, 2.25 Gbps
    2K, HD, and SD with HFR support up to 60p (4:2:2), 10-bit

  • HDR

    SDI: VPID signaling for SDR/HDR Transfer Characteristics
    HDMI: HDR10 Support - HDR Infoframe metadata, compatible with HDMI 2.0a/CTA-861.3
    HDMI: HLG Support - compatible with HDMI 2.0b/CTA-861-G

  • Audio Input Digital

    16-channel, 16 and 24-bit SMPTE-259 SDI embedded audio, 48 kHz sample rate, synchronous
    8-channel, 16 and 24-bit HDMI embedded audio, 48 kHz sample rate, synchronous

  • Audio Output Digital

    16-channel, 16 and 24-bit SMPTE-259 SDI embedded audio, 48 kHz sample rate, synchronous
    8-channel, 16 and 24-bit HDMI embedded audio, 48 kHz sample rate, synchronous

  • Audio Input Analog

    8-channel, 24 and 16-bit D/A analog audio, 48 kHz sample rate, balanced, using industry standard 8x XLR on DB-25 breakout cable (cable not included)
    +24 dBu full scale digital (0 dBFS)
    +/- 0.2 dB 20 to 20 kHz frequency response
    Input supported across Ch 1-8, Ch 1-4, or Ch 5-8 depending on configuration chosen

  • Audio Output Analog

    8-channel, 24-bit D/A analog audio, 48 kHz sample rate, balanced, using industry standard 8x XLR on DB-25 breakout cable (cable not included)
    +24 dBu full scale digital (0 dBFS)
    +/- 0.2 dB 20 to 20 kHz frequency response

  • Audio Output Analog (Contd.)

    Output supported across Ch 1-8, Ch 1-4, or Ch 5-8 depending on configuration chosen
    2-channel, 18-bit D/A analog audio, 48 kHz sample rate, unbalanced, using standard 3.5mm jack
    1.2V RMS full scale digital output level (0 dBFS)

  • Downstream Keyer

    Supports graphics up to 2K/HD with alpha channel over video, matte or framebuffer, or framebuffer content over incoming video or matte

  • LTC

    BNC LTC input (dedicated)
    BNC LTC output (dedicated)

  • Reference

    BNC (dedicated)
    Analog Color Black (1V) or Composite Sync (2 or 4V)
    Nonterminating

  • Electrical Interface

    Thunderbolt 3 (2x)

  • Machine Control

    RS-422, Sony 9-pin protocol
    9-pin D-connector pinout is as follows: 1 - GND, 2 - RX-, 3 - TX+, 4 - GND, 5 - No Connection, 6 - GND, 7 - RX+, 8 - TX-, 9 - GND, Shell - GND

  • Power

    10-20V, 23W typical, 28W max

  • Environment

    Safe Operating Temperature: 32 to 95 degrees F (0 to 35 degrees C)
    Safe Storage Temperature (Power OFF): -40 to 140 degrees F (-40 to 60 degrees C)
    Operating Relative Humidity: 10-90% noncondensing
    Operating Altitude: <10,000' (<3,000m)

  • Dimensions (W x D x H)

    8.74 x 7.09 x 1.65" (222 x 180.09 x 41.91mm)

  • Weight

    3.1 lbs (1.5kg)

  • UPC Code

    812321032611

About AJA Io X3

You can elevate your professional audio and video production with the advanced Io X3 Multi-Channel 2K Audio and Video I/O Capture Device with Thunderbolt 3. This high-tech device is designed for sophisticated multi-channel 2K audio and video capture, making it an ideal choice for recording studios, post-production facilities, and other professional settings.

The Io X3 is universally compatible with both Macintosh and PC/Windows operating systems, offering versatility and practicality. Its innovative Thunderbolt 3 interface ensures a fast and reliable connection, allowing for quick and easy transfer of high-quality HDR or SDR video work with up to 60p HD/2K signals.

This device offers a wealth of connectivity options, including dual Thunderbolt 3 ports for host connectivity to a laptop or desktop PC or Mac, HDMI in and out ports for easy monitoring or video input sources, and 4 bidirectional 3G-SDI ports that can be configured as multi-channel inputs or outputs. It also includes an RS-422 port for machine control of external devices, and a DB-25 port for analog audio.

The Io X3 supports all major NLE applications, including Apple Final Cut Pro, Avid Media Composer, and Adobe Premiere Pro. It also works seamlessly with other video applications such as OBS Studio, vMix, and Telestream Wirecast.

With its compact and quiet form factor, the Io X3 is perfect for use on set, in the studio, at an event, or in the edit suite. It also offers high-density, rack-mountable design, allowing for two Io X3 devices to sit comfortably in just 1RU.

The Io X3 also supports High Dynamic Range (HDR), providing the ability to display a wider and richer range of colors, much brighter whites, and much deeper, darker blacks than standard signals allow. This gives your imagery a more 'dynamic' look and allows for natural true to life colors to be communicated to your audience.

Whether you're editing promos, news footage, sports, long form content, or any other demanding video environment content, the Io X3 Multi-Channel 2K Audio and Video I/O Capture Device with Thunderbolt 3 is your perfect partner.

AJA Io X3 Features

  • 2K/HD/SD I/O up to 50/60p
  • 4x bidirectional 3G-SDI BNC with 16-channel embedded audio
  • HDMI I/O with 8-channel embedded audio
  • Two Thunderbolt 3 ports with loop through
  • Multi-channel workflow support for OBS/Wirecast/vMix and other applications
  • YCbCr 4:2:2 10-bit up to 60p
  • RGB 4:4:4 12-bit up to 30p
  • VPID signaling for SDR/HDR Transfer Characteristics, Colorimetry and Luminance via SDI
  • PQ, HLG, HDR10, HDR10+ and Dolby Vision Support
  • HDR Metadata Capture and Auto Playback Detection
  • Multiview output over HDMI, to view up to 4-channels on one screen
  • Analog audio flexibility with a choice of 8-channel In or 8-channel Out or 4-channel In and 4-channel out via a standard Tascam connection
  • Front panel audio display
  • Includes support for the Apple M1 chip and the latest OS versions
  • XLR 12V power for battery or AC use (AC adapter included)
  • Headphone jack and level control for mobile and live environments
  • RS-422 VTR control, Reference, LTC Input and LTC Output

Warranty Information

This product has a limited warranty of 36 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Capture pristine video with the AJA Io X3, supporting up to 2K resolution for clear, detailed imagery.
  • Experience low latency video I/O via Thunderbolt 3, perfect for live streaming and broadcast workflows.
  • Enjoy broad compatibility with HDMI and SDI inputs/outputs, integrating seamlessly into your existing setup.
  • Utilize multi-channel audio I/O for professional sound, ensuring high-quality audio capture and output.
  • Achieve stable connections for uninterrupted video capture, crucial for live events and critical recordings.
  • Affordable and feature-rich, this video capture device offers exceptional value for content creators.

What's in the box:

  • AJA Io X3 Multi-Channel 2K Audio and Video I/O Capture Device
  • Power Supply
  • AJA 3 Year Limited Warranty
