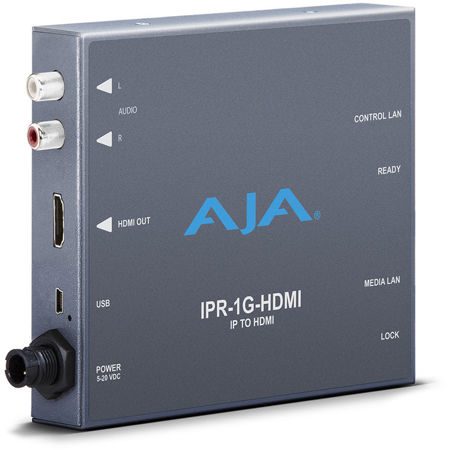

AJA JPEG 2000 IP Video & Audio to HDMI Converter

IPR-1G-HDMI

JPEG 2000 IP Video and Audio to HDMI Converter

The IPR-1G-HDMI is a VSF TR-01 (and other JPEG 2000 formats) to HDMI converter suited for point of use applications including source monitoring, digital signage, and video walls. The IPR-1G-HDMI decodes VSF TR-01 JPEG 2000 streams then formats the data for output on a full size HDMI 1.4 interface. The audio associated with the video stream is extracted, synchronized, and then embedded into the HDMI signal as well as output on an analog RCA audio interface.

IPR-1G-HDMI extracts a JPEG 2000 essence from an incoming IP stream and presents it for display on HDMI devices. It's rugged, fanless, Mini-Converter design is ideal for placement in a wide range of display scenarios, from studios to field.

User Control

IPR-1G-HDMI provides two key ports for control. The Control LAN Ethernet port enables control of the Mini-Converter from Web browsers on any platform and REST clients. The USB 2.0 mini connector facilitates quick and simple firmware updates.

• 1x RJ-45 (IEC 60603-7) for 10/100/1000Base-T Ethernet control input
• HTTP/1.1 (RFCs 7230, 7231, 7232, 7233, 7234, 7235)
• Web and REST clients supported
• 1x USB 2.0 Mini-B connector
• AJA eMini-Setup software setup of network parameters

Universal Power Supply

All AJA Mini-Converters ship with a universal power supply that includes international plug connections for use around the world.

Compact and Portable

AJA Mini-Converters are small enough to fit behind a monitor, in the back of a rack or directly on a camera rig. A locking power connector can't accidentally pull loose and an optional P-TAP power cable allows for battery power in remote locations.
