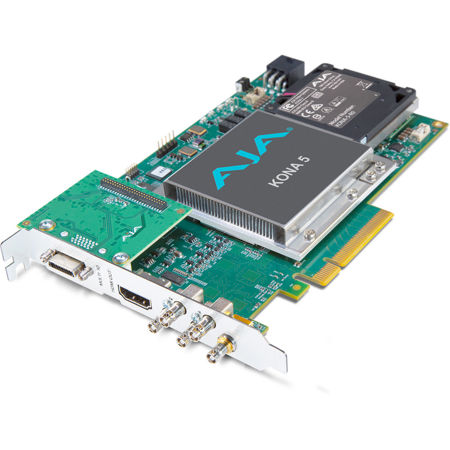

AJA KONA 5 12G-SDI I/O, 10-Bit PCIe Card, HDMI 2.0 Output with HFR Support, ATX Power
SKU: AJKONA5R0 MFR: KONA-5-R0
Earn VIP Reward PointsKey Features
- Capture pristine video with the KONA 5's 12G-SDI I/O for top-tier video quality.
- Enjoy high resolution HDMI 2.0 output with HFR support for smooth, detailed visuals.
- Experience low latency video capture, ensuring real-time responsiveness for critical tasks.
- This PCIe card offers good compatibility with various video formats, up to 4K/UltraHD.
- Stable streaming is guaranteed with AJA's robust technology, perfect for live broadcasts.
- Affordable price point for a professional-grade video capture solution, get great value.
Special Order?Estimated to Ship: 09/09/2025
Free Shipping
See Options
1
Protect your gear with Adorama Protect.* Learn more
2 Year
$194.99
3 Year
$299.99
4 Year
$389.99
Available to U.S. customers only.
Need help? Ask our experts.
Overview
Compare
Specs
Protection
Q&A
About AJA KONA 5
If you're in search of a powerful solution for your demanding video and audio workflows, look no further than the KONA 5 12G-SDI I/O, 10-Bit PCIe Card, HDMI 2.0 Output with HFR Support, ATX Power. As the latest addition to the renowned KONA product line, this 8-lane PCIe 3.0 I/O card is engineered to handle the rigors of HFR 4K/UltraHD, 2K/HD, SD, Deep Color, and HDR projects, delivering superior quality and reliability.
With support for 10-bit 4:2:2 and 4:4:4, and even 12-bit color spaces, the KONA 5 ensures pristine imagery in every project. Its flexibility is further enhanced by the ability to ingest and output with 12G/6G/3G-SDI and monitor via a full-size HDMI 2.0 port. The bidirectional 12G-SDI ports offer immense versatility for capture and simultaneous pass-through, and with the right software, you can even achieve multi-channel capture and streaming.
For HDR workflows, the KONA 5 is equipped to support HDR10 and HLG, ensuring rich color delivery over HDMI 2.0. This powerhouse is not only designed to meet your current needs but is also future-proof, ready to tackle the evolving demands of the industry.
Professional connectivity is a standout feature of the KONA 5, boasting 4x bidirectional 12G-SDI spigots with a Reference Input. Achieve 4K/UltraHD I/O with a single 12G-SDI or 6G-SDI cable, or quad 3G-SDI cables. 2K/HD I/O can be accomplished with a single 3G-SDI cable, or dual link 1.5G-SDI, allowing simultaneous capture and monitoring via SDI. A full-sized HDMI 2.0 connection offers monitoring and output, with HDR, Deep Color, and HFR support.
The KONA 5 also comes with an included breakout cable for extended connectivity, offering a range of options for AES, RS-422 control support, and Reference. It also supports HDR (High Dynamic Range), providing a wider and richer range of colors, brighter whites, and deeper, darker blacks for a more dynamic and true-to-life imagery.
Designed for a range of workflows, the KONA 5 offers next-generation performance and flexible connectivity, making it a central component of your multi-format projects. It can be synced to an external reference for larger productions, or feed LTC in and out for proper timecode. The built-in hardware downstream keyer allows for easy overlay of graphics and images on the input video in real-time.
The KONA 5 is compatible with macOS, Windows, and Linux, offering incredible 4K and multi-channel power for a wide range of creative applications. With AJA's legendary technical support at your disposal, you can rest assured that any issues will be resolved promptly and efficiently.
AJA KONA 5 Features
- Supports 4K and UltraHD ingest and output at frame rates up to 50/60 fps
- Supports 4:4:4 and 4:2:2 workflows
- 10-bit 4K/UltraHD and 2K/Dual Link/HD/SD input and output
- 12-bit color support (application dependent)
- HDMI 2.0 output (4K/UltraHD HFR 4:2:2 10-bit)
- HDR10 support - HDR Infoframe metadata, in accordance with
- HDMI 2.0a/CTA-861.3
- HLG (Hybrid Log Gamma) support
- 8-Ch AES/EBU, 8-Ch embedded HDMI, and 16-Ch embedded SDI digital audio I/O
- Reference Input on card (Analog black burst or Tri-level)
- Extend external connectivity with included breakout cable
- RS-422 support on 9-pin connector
- macOS, Windows and Linux support
Warranty Information
This product has a limited warranty of 36 months.
