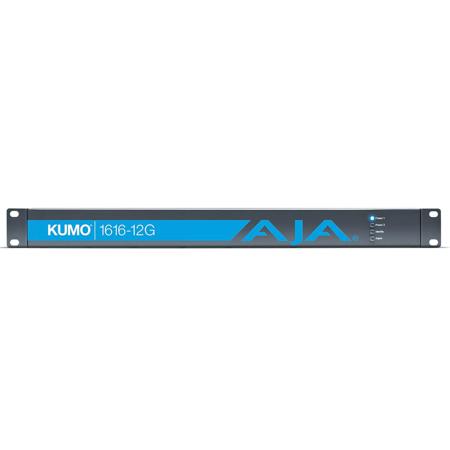

AJA KUMO 1616-12G Compact 16x16 12G-SDI Router with Power Supply

SKU: AJKUM161612G MFR: KUMO-1616-12G
Earn VIP Reward Points

Key Features

  • Seamlessly route 12G-SDI video signals with this AJA KUMO 1616-12G video switcher.
  • Enjoy reliable video signal management with auto cable equalization up to 70m at 12Gbps.
  • Control your video routing via Ethernet with AJA KUMO CP or the embedded web server.
  • Ensure high-quality broadcasts; this video router passes all SDI embedded ancillary data.
  • This affordable AJA KUMO 16x16 12G-SDI router supports single, dual, and quad-link modes.
  • Simplify setup with automatic reclocking, supporting a wide range of video formats.
See More Product Details
Special Order?Estimated to Ship: 08/19/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$179.99

4 Year

$215.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?PAUL L : Need for workLEE H : Its was the only one available

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

AJA KUMO 1616-12G Specifications

  • Video Format

    270 Mbps, 1.5 Gbps, 3 Gbps, 6 Gbps, 12 Gbps SDI
    270 Mbps DVB-ASI
    Format agnostic, 125 Mbps - 12 Gbps

  • Video Input Digital

    12G-SDI Inputs
    16x 12G-SDI BNC, SMPTE-259/292/424/2081/2082

  • Video Output Digital

    12G-SDI Outputs
    Noninverting
    16x 12G-SDI BNC, SMPTE-259/292/424/2081/2082

  • Ancillary Data

    Passes all SDI embedded ancillary data including audio

  • Salvo

    Up to 8 Salvos can be configured and saved in each KUMO router

  • Cable Equalization

    (Belden 1694A)
    12 Gbps, up to 70m
    6 Gbps, up to 120m
    3 Gbps, up to 190m
    1.5 Gbps, up to 195m
    270 Mbps, up to 405m
    Automatic operation

  • Reclocking

    270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.967 Gbps, 2.970 Gbps, 5.934 Gbps, 5.940 Gbps, 11.868 Gbps, 11.880 Gbps - Auto Select
    All other rates are passed through and not reclocked

  • Switching Modes

    Single, Dual and Quad Link modes
    Switches in vertical blanking per SMPTE RP-168

  • Control Panel Compatibility

    AJA KUMO CP - 1RU X-Y Ethernet control panel
    AJA KUMO CP2 - 2RU X-Y Ethernet control panel

  • Reference Input

    External, 2x BNC
    Looping, nonterminating
    Blackburst or tri-level sync

  • Network Interface

    1x RJ-45, 10/100/1000 Ethernet
    Supports AJA KUMO Ethernet control panels, direct connect or networked
    Grass Valley Native Protocol
    Embedded web server for remote control

  • USB Interface

    1x Mini-USB for IP configuration

  • Serial Interface

    1x DB-9 Female, RS-422
    Grass Valley Native Protocol
    9-pin D-connector pinout is as follows: 1: GND, 2: TX-, 3: RX+, 4: GND, 5: No Connection , 6: GND, 7: TX+, 8: RX-, 9: GND, Shell: GND

  • Power

    10-14VDC regulated, 13W typ, power supply required, included with purchase
    AC Adapter: 100-240VAC, 50/60 Hz, universal input

  • Safe Operating Temperature

    0 to 40 deg. C (32 to 104 deg. F)

  • Safe Storage Temperature

    -40 to 60 deg. C (-40 to 140 deg. F) (Power OFF)

  • Operating Relative Humidity

    10-90% noncondensing

  • Operating Altitude

    <3,000 meters (<10,000 feet)

  • Dimensions (WxDxH)

    1RU - 17.4 x 1.54 x 1.75" (44.20 x 3.91 x 4.45cm)

  • Weight

    1.4 lbs (0.64kg)

  • UPC Code

    812321031430

About AJA KUMO 1616-12G

Take your video production to the next level with the KUMO 1616-12G Compact 16x16 12G-SDI Router, a powerful and reliable solution for routing high-resolution video signals in professional environments. This compact yet robust 1RU router effortlessly supports a multitude of SDI formats, including 12G-SDI, 6G-SDI, 3G-SDI, and 1.5G-SDI, ensuring compatibility with a wide range of devices and workflows.

Designed for high-capacity configurations, the KUMO 1616-12G offers 16 inputs and 16 outputs, enabling seamless signal distribution and routing for live events, broadcast studios, and post-production facilities. Its high-quality construction exceeds SMPTE specifications, guaranteeing durable and reliable performance.

The KUMO 1616-12G simplifies 4K/UltraHD signal transport over a single cable, reducing the complexity of cable runs and maintaining pristine image quality. With support for large format resolutions, high frame rates (HFR), and deep color formats, this router is equipped to handle the demands of advanced video production.

Featuring a redundant power supply option, the KUMO 1616-12G ensures continuous operation, while its embedded web server enables remote control and monitoring from any network-connected device. The addition of a USB port allows for straightforward configuration of IP addresses using AJA's eMini-Setup software, streamlining installation and setup.

The router's powerful cross-point routing matrix maps any input to any output, providing flexibility for complex signal flows. With the ability to function as a distribution amplifier, the KUMO 1616-12G can replace multiple DAs, offering a cost-effective solution for signal distribution.

For enhanced operational efficiency, the KUMO 1616-12G features eight salvos per router, allowing for quick recall of predefined source-to-destination configurations. This functionality is easily managed through the router's intuitive Web UI or the AJA KUMO CP2 control panel.

The KUMO 1616-12G is part of AJA's renowned KUMO line of compact SDI routers, known for their exceptional signal control and adherence to broadcast standards. Whether integrated into a mobile sports truck, an edit suite, or a live theatrical A/V rig, this router delivers unparalleled performance in a small form factor.

In summary, the KUMO 1616-12G Compact 16x16 12G-SDI Router with Power Supply is the ideal choice for professionals seeking a versatile, high-quality, and space-saving routing solution that can effortlessly manage the complexities of modern video production.

AJA KUMO 1616-12G Features

  • Compact 16x16 12G-SDI router with powerful signal control capabilities
  • Supports multiple SDI formats including 12G-SDI, 6G-SDI, 3G-SDI, and 1.5G-SDI
  • Features 16 inputs and 16 outputs for high-capacity configurations
  • Simplifies 4K/UltraHD signal transport with single cable support
  • Offers remote control and monitoring via an embedded web server
  • Includes a USB port for easy IP configuration with AJA's eMini-Setup software

Warranty Information

This product has a limited warranty of 60 months.

Key Features

  • Seamlessly route 12G-SDI video signals with this AJA KUMO 1616-12G video switcher.
  • Enjoy reliable video signal management with auto cable equalization up to 70m at 12Gbps.
  • Control your video routing via Ethernet with AJA KUMO CP or the embedded web server.
  • Ensure high-quality broadcasts; this video router passes all SDI embedded ancillary data.
  • This affordable AJA KUMO 16x16 12G-SDI router supports single, dual, and quad-link modes.
  • Simplify setup with automatic reclocking, supporting a wide range of video formats.

What's in the box:

  • AJA KUMO 1616-12G Compact 16x16 12G-SDI Router with Power Supply
  • AJA 5 Year Limited Warranty
