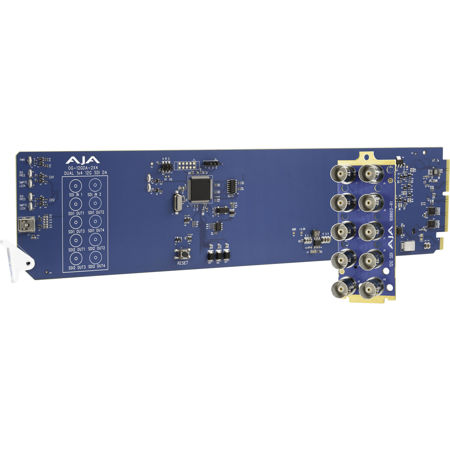

AJA OG-12GDA-2x4 openGear Dual 1x4 12G-SDI Distribution Amplifier

SKU: AJOG12GDA2X4 MFR: OG-12GDA-2X4
Earn VIP Reward Points

Key Features

  • Distribute 12G-SDI video signals with this reliable AJA distribution amplifier.
  • Achieve high resolution video distribution with low latency using this 12G-SDI DA.
  • Enjoy wide compatibility; supports SMPTE-259/292/424/2081/2082 video formats.
  • Simplify setup with openGear DashBoard network control software on your system.
  • Ensure a reliable signal with automatic reclocking at various Gbps rates.
  • Extend your signal reach with cable equalization up to 365m using Belden 1694A.
See More Product Details
Special Order?Estimated to Ship: 08/23/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$79.99

3 Year

$99.99

4 Year

$129.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

AJA OG-12GDA-2X4 Specifications

  • Video Formats

    150 Mbps - 12 Gbps, format agnostic

  • Video Input Digital

    2x 12G-SDI BNC, SMPTE-259/292/424/2081/2082

  • Video Output Digital

    8x 12G-SDI BNC, SMPTE-259/292/424/2081/2082, noninverting

  • Cable Equalization

    12 Gbps, 45m
    6 Gbps, 90m
    3 Gbps, 140m
    1.5 Gbps, 185m
    270 Mbps, 365m (Belden 1694A coax)

  • Reclocking

    270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.967 Gbps, 2.970 Gbps, 5.934 Gbps, 5.940 Gbps, 11.868 Gbps, 11.880 Gbps - Auto Select
    All other rates are passed through and not reclocked

  • User Interface

    openGear DashBoard network control software via Windows, macOS or Linux

  • Power

    openGear frame compatible, 4.5 watts max per card

  • Environment

    Safe Operating Temperature: 32 to 104 Degree F (0 to 40 Degree C)
    Safe Storage Temperature (Power OFF): -40 to 140 Degree F (-40 to 60 Degree C)
    Operating Relative Humidity: 10-90% noncondensing
    Operating Altitude: <3,000 meters (<10,000 feet)

  • Size

    openGear standard form factor, front slot and rear card
    Two slots required for each card

  • Weight

    8 oz (226.7g)

  • UPC Code

    812321032192

About AJA OG-12GDA-2X4

If you're in search of a top-notch 12G-SDI distribution amplifier, the OG-12GDA-2x4 openGear Dual 1x4 12G-SDI Distribution Amplifier is your ideal solution. This state-of-the-art device is openGear compatible, designed to automatically equalize incoming 12G-SDI signals on its dual input channels. It further enhances your video quality by automatically reclocking the outputs to four 12G-SDI outputs each, effectively doubling the number of DAs in a limited frame space.

The OG-12GDA-2x4 comes with a 10x BNC rear connector module, making it perfectly suited for high-density openGear 2RU frames, including AJA's OG-X-FR frame. It also offers DashBoard software support on Windows, macOS, and Linux, providing remote control and monitoring of the openGear architecture. This feature allows for industry-standard configuration, monitoring, and control options over a PC or local network.

This 12G-SDI distribution amplifier boasts best-in-class input jitter tolerance, supporting SDI rates of 270Mb, 1.5Gb, 3Gb, 6Gb, and 12Gb. It provides two SDI inputs and eight SDI outputs, ensuring optimal connectivity. The included 10x BNC rear openGear connector module further enhances its compatibility.

The OG-12GDA-2x4 adheres to the openGear standard, ensuring compatibility with other openGear products from certified openGear partners. Its modular rear panel allows for custom I/O connections per card, offering flexibility in your setup.

For added security, the device offers an optional redundant power supply to serve as a secondary power source in case of a primary power failure. It also features a standard Ethernet connection for overall frame communication via the Dashboard application.

The OG-12GDA-2x4 also supports the AJA Mini-Matrix mobile app on iOS, providing information on the complete line of AJA Rackframes and cards. This app helps you find the right converter for any situation, wherever you are, with links back to the main AJA website for more details.

In summary, the OG-12GDA-2x4 openGear Dual 1x4 12G-SDI Distribution Amplifier is a powerful, flexible, and reliable solution for your video distribution needs.

AJA OG-12GDA-2X4 Features

  • Dual 1x4 12G-SDI openGear Distribution Amplifiers
  • 2x 12G-SDI BNC inputs
  • 8x noninverting 12G-SDI BNC outputs
  • Format agnostic 270 Mbps - 12 Gbps video formats
  • Automatic input equalization and output reclocking
  • Support for HDR video
  • Passes embedded audio, all ancillary data including closed caption and time code
  • Input Present and Input SMPTE Lock LEDs
  • 10x 12G-BNC rear connector module included
  • Power: 4.5 watts
  • Hot swappable
  • DashBoard Support with OG-X-FR, OG-3-FR and DFR-8321 openGear frames

Warranty Information

This product has a limited warranty of 60 months.

Key Features

  • Distribute 12G-SDI video signals with this reliable AJA distribution amplifier.
  • Achieve high resolution video distribution with low latency using this 12G-SDI DA.
  • Enjoy wide compatibility; supports SMPTE-259/292/424/2081/2082 video formats.
  • Simplify setup with openGear DashBoard network control software on your system.
  • Ensure a reliable signal with automatic reclocking at various Gbps rates.
  • Extend your signal reach with cable equalization up to 365m using Belden 1694A.

What's in the box:

  • AJA OG-12GDA-2x4 openGear Dual 1x4 12G-SDI Distribution Amplifier
  • 10x 12G-BNC Rear Connector Module
  • AJA 5 Year Limited Warranty
