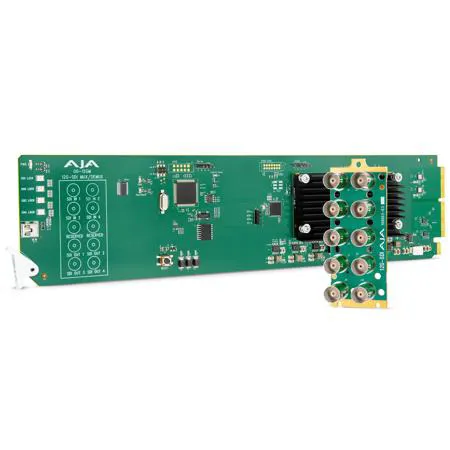

AJA OG-12GM openGear 12G-SDI to/from SDI Muxer/DeMuxer
SKU: AJOG12GM MFR: OG-12GM
Earn VIP Reward PointsKey Features
- Convert Quad 3G-SDI to single 12G-SDI with AJA OG-12GM, ensuring high-resolution video format conversion.
- Utilize this SDI Muxer/DeMuxer for seamless video format compatibility, including 4K and UltraHD.
- Enjoy stable performance with 12G-SDI to/from SDI conversion, ideal for broadcast-quality video.
- Easily manage video signals using openGear DashBoard for intuitive control and input signal diagnostics.
- This video format converter supports quad-link and single-link SDI, providing versatile connectivity.
- Ensure reliable video format conversion with cable equalization up to 70m for 12 Gbps using Belden 1694A.
FREE 2-Day Shipping
See Options
1
Protect your gear with Adorama Protect.* Learn more
2 Year
$89.99
3 Year
$109.99
4 Year
$139.99
Available to U.S. customers only.
Need help? Ask our experts.
Overview
Compare
Specs
Protection
Q&A
About AJA OG-12GM
Become a part of the future of professional video and audio applications with the OG-12GM openGear 12G-SDI to/from SDI Muxer/DeMuxer. This high-quality, durable device is an innovative solution for converting SDI signals, supporting a wide range of workflows including 4K, UltraHD, 2K, HD, and SD.
The OG-12GM is more than just a compact SDI transport openGear card. It's a reliable tool that enables 12G-SDI to quad-link 3G-SDI and quad-link 3G-SDI to 12G-SDI conversion. It's designed to handle conversions from quad-link SDI signals to single link SDI signals, and vice versa at 12G, 6G, 3G, and 1.5G bit rates.
This advanced Muxer/DeMuxer supports both Square Division (Quadrant) and Two Sample Interleave (2SI) input and output mappings. It's designed for use in high-density openGear 2RU frames, including AJA's OG-X-FR frame, and offers industry-standard DashBoard software support on Windows, macOS, and Linux. This ensures remote control and monitoring over a PC or local network for ultimate convenience.
The OG-12GM openGear 12G-SDI to/from SDI Muxer/DeMuxer is part of the openGear standard, ensuring compatibility with other openGear products from certified openGear partners. Its flexible I/O allows for custom connections per card, and the optional redundant power supply provides a failsafe secondary power source.
With Ethernet access, the frame can be accessed via the Dashboard application for overall frame communication. Optional per-card Ethernet access can be installed in the frame for advanced communication with compatible openGear cards.
The AJA Mini-Matrix mobile app provides information on the complete line of AJA Rackframes and cards, helping you find the right converter for any situation. The free AJA Mini-Matrix app for iPad and iPhone is available now in the Apple iTunes Store, making it easier than ever to access product information and details.
Choose the OG-12GM openGear 12G-SDI to/from SDI Muxer/DeMuxer for a reliable, advanced solution to your professional video and audio needs.
AJA OG-12GM Features
- openGear compatible card
- Single 12G-SDI to/from Quad 3G-SDI Level A
- Single 12G-SDI to/from Quad 3G-SDI Level B-DL
- Single 6G-SDI to/from Quad 1.5G-SDI
- Quad 3G-SDI Level A to/from Quad 3G-SDI Level B-DL
- Two Sample Interleave (2SI) to/from Square Division (Quadrant) pixel mapping, 3G
- Pass through of Single Link 3G, 1.5G and 270M SDI video
- Distribution Amplifier support (1x4)
- Input signal diagnostics and timing analyzer for quad-link signals
- Automatic or manual control
- Detailed timing analysis for validating alignment of quad-link SDI inputs
- Passes SDI embedded audio, 24-bit, up to 16-Channels
- Recognizes and transmits High Dynamic Range (HDR) and Wide Color Gamut (WCG) signaling on VPID
- Power: 12 watts
- Hot-swappable
- Remote Ethernet configuration through Ross DashBoard software
- Rear I/O card included
- Two slots required for each card
- Compatible with OG-X-FR, OG-3-FR, and DFR-8321 openGear frames
Warranty Information
This product has a limited warranty of 60 months.
