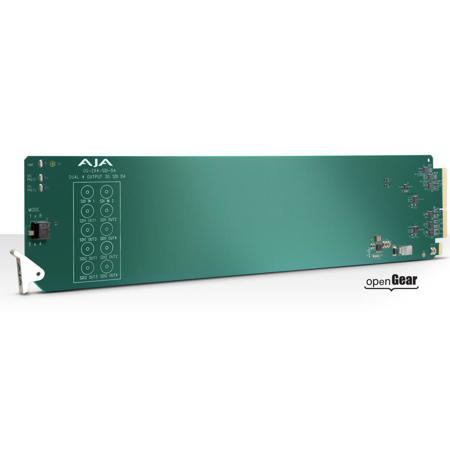

AJA openGear Dual 2x4 3G-SDI Re-clocking Distribution Amplifier

The OG-2x4-SDI-DA is an openGear-compatible, state of the art 3G-SDI distribution amplifier. The incoming 3G-SDI signals on the 2 input channels are reclocked and distributed to 4x 3G-SDI outputs each or alternatively can function as a 1x 8-Channel DA, allowing the same signal to be sent to eight destinations simultaneously. This dual input capability allows double the number of DAs in limited frame space. A 10 BNC rear Open Gear connector module is included.

• Automatic cable equalizer and automatic reclocker bypass.
• Automatic detection and reclocking of 270MB, 1.5GB and 3GB SDI data rates.
• Advanced jitter input tolerance and low jitter reclocked outputs.
• Hot swap capable.
• Compatible with DFR-8321 and OG3 openGear frames
• openGear standard form-factor, front slot and rear card

Connectivity
The 3G-SDI inputs are equalized and re-clocked with best-in-class cable length capability and input jitter tolerance. SDI rates of 270MB, 1.5GB and 3GB are supported. Two SDIs input and 8 SDI outputs are provided. A 10-BNC rear openGear connector module is included.
