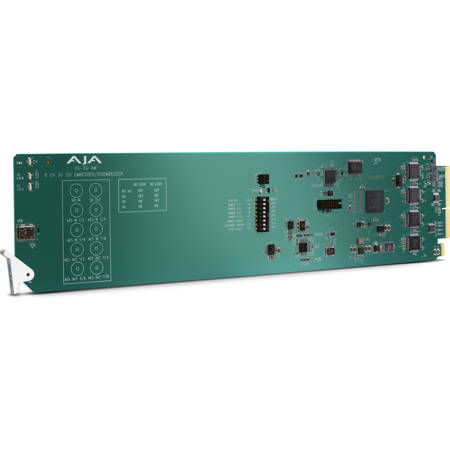

AJA openGear 3G-SDI 8-Channel 24-bit AES Embedder/Disembedder with BNC Connector Module

While the OG-3G-AM may appear to be a standard piece of equipment in the realm of audio and video processing, it is, in fact, a sophisticated openGear-compatible module that serves as both an 8-channel AES audio Embedder/Disembedder. This versatile unit is designed to handle 3G-SDI inputs and outputs, delivering high-quality video up to 1080p/60 resolution, ensuring that it meets the demands of professional broadcasting environments.

The OG-3G-AM stands out with its user-friendly interface, which provides straightforward controls for channel enabling and mapping, making it accessible for both novice and experienced users. The inclusion of a 10 BNC rear Open Gear connector module underscores its commitment to seamless integration and connectivity.

As a dual-function device, the OG-3G-AM offers both embedding and disembedding capabilities on a single board, streamlining your workflow and reducing the need for multiple pieces of equipment. Whether operating in Local or Remote modes, users can trust in the reliability and flexibility of this module.

The unit's sophisticated design allows for the passing or dropping of non-audio HANC packets, giving users control over their signal flow. Configuration is made easy through USB and Mini-Config software or via DIP switch settings, catering to various user preferences and technical requirements.

Hot swap capability is another feature that underscores the OG-3G-AM's professional-grade design, allowing for uninterrupted operation and maintenance within DFR-8321 and OG3 openGear frames. This hot swap feature is particularly valuable in live production environments where downtime is not an option.

Adherence to the openGear standard form-factor ensures that the OG-3G-AM is compatible with a wide range of other certified openGear products, highlighting its versatility and future-proof nature as part of a comprehensive rackframe system.

Connectivity is at the heart of the OG-3G-AM's design, with a 3G-SDI input and output complemented by 4x AES BNC connectors for each direction. The module's intelligent auto-detection and configuration to the input video standard simplify setup and operation. AES inputs benefit from sample rate conversion (SRC) to 48KHz, synchronized to the video input, ensuring high fidelity audio processing.

Audio disembedding is consistently operational, providing four AES outputs. Audio embedding, on the other hand, is user-selectable on a channel-pair basis, allowing for the choice to either embed the input AES audio or pass the 3G-SDI input audio. This level of control ensures that the OG-3G-AM can adapt to a variety of audio workflows, making it an indispensable tool for professionals in the broadcast, live production, and post-production industries.
