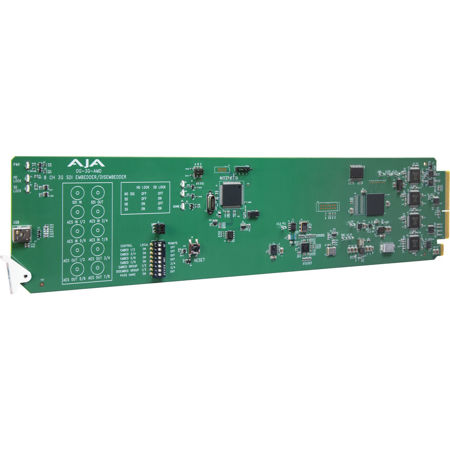

AJA OG-3G-AMD openGear 3G-SDI 8-Channel 24-bit AES Embedder/Disembedder, DashBoard Support

Become a part of the future of professional audio and video applications with the OG-3G-AMD openGear 3G-SDI 8-Channel 24-bit AES Embedder/Disembedder. This high-quality, advanced module from the reputable brand, Aja, is designed to deliver reliable and durable performance.

The OG-3G-AMD is a state-of-the-art, openGear compatible, 8-channel AES audio embedder/disembedder that supports 3G-SDI input and output up to 1080p 60. It offers simple user controls for channel enabling and mapping, and comes with a 10x BNC rear openGear connector module.

Designed for use in high-density openGear 2RU frames, including AJA's OG-X-FR frame, this module offers new DashBoard software support on Windows, macOS, and Linux. This software provides remote control and monitoring of the openGear architecture, offering convenient and industry-standard configuration, monitoring, and control options over a PC or local network.

The OG-3G-AMD provides a 3G-SDI input and 3G-SDI output with four AES BNC connectors in each direction, automatically detecting and configuring to the input video standard. AES inputs are sample rate converted (SRC) to 48kHz synchronous to the video input. Audio disembedding is always functional, providing four AES outputs. Audio embedding is user-selectable, on a channel pair basis, to either embed input AES audio or pass 3G-SDI input audio.

The openGear standard ensures that AJA cards will be compatible with other openGear products from certified openGear partners. With a growing list of products, openGear is the future of rackframe products.

The modular rear panel allows custom I/O connections per card (included with individual cards). The optional redundant power supply provides a secondary power source in the event of a primary power failure. A standard Ethernet connection allows the frame to be accessed via the Dashboard application for overall frame communication. Optional per-card Ethernet access can be installed in the frame for advanced communication with compatible openGear cards.

Experience the versatility and professional-grade performance of the OG-3G-AMD openGear 3G-SDI 8-Channel 24-bit AES Embedder/Disembedder.
