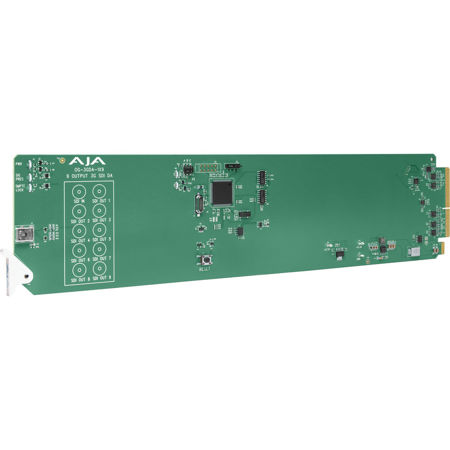

AJA OG-3GDA-1X9 openGear 1x9 3G-SDI Reclocking DA, DashBoard Support

What sets the OG-3GDA-1X9 apart is its high-quality, openGear compatibility, and innovative 3G-SDI distribution amplifier functionality. This durable and reliable device is designed to reclock and distribute an incoming 3G-SDI signal to nine 3G-SDI outputs simultaneously, making it an ideal solution for professional video applications that require the same signal to be sent to multiple destinations at once.

Engineered for use in high-density openGear 2RU frames, including AJA's OG-X-FR frame, this device features new DashBoard software support on Windows, macOS, and Linux. This user-friendly software offers remote control and monitoring of the openGear architecture, providing industry-standard configuration, monitoring, and control options over a PC or local network.

The OG-3GDA-1X9 boasts automatic equalization of the 3G-SDI input and automatic reclocking of the outputs, ensuring best-in-class input jitter tolerance. It supports SDI rates of 270Mb, 1.5Gb, and 3Gb, and provides one SDI input and nine SDI outputs. A 10x BNC rear openGear connector module is included for enhanced connectivity.

As part of the openGear standard, this device guarantees compatibility with other certified openGear products, making it a future-proof choice in the realm of rackframe products. The DashBoard software offers quick and convenient configuration and control of openGear cards on macOS, Windows, and Linux.

The device also features a modular rear panel for custom I/O connections per card, an optional redundant power supply for failsafe operation, and a standard Ethernet connection for frame access via the Dashboard application. Optional per-card Ethernet access can be installed in the frame for advanced communication with compatible openGear cards. This makes the OG-3GDA-1X9 a versatile and reliable choice for your professional video application needs.
