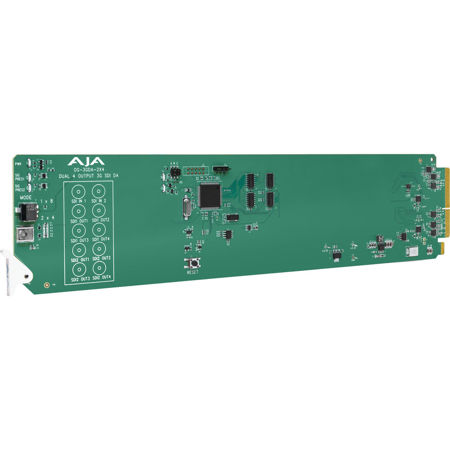

AJA OG-3GDA-2X4 openGear 2x4 or 1x8 3G-SDI Reclocking DA, DashBoard Support

SKU: AJOG3GDA2X4 MFR: OG-3GDA-2X4
Earn VIP Reward Points

Key Features

  • Ensure stable streaming with this 3G-SDI reclocking distribution amplifier.
  • Easily manage video formats with auto-select reclocking up to 2.970 Gbps.
  • Achieve good connectivity using openGear DashBoard network control software.
  • Simplify your workflow with this user-friendly video format converter.
  • Enjoy high resolution video output with eight 3G-SDI BNC connections.
  • Extend cable reach with equalization up to 120m for 3Gbps video signals.
See More Product Details
FREE 2-Day Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$69.99

3 Year

$94.99

4 Year

$119.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

AJA OG-3GDA-2X4 Specifications

  • Video Formats

    150 Mbps - 3 Gbps, format agnostic

  • Video Input Digital

    1x 3G-SDI BNC (1x8 mode), SMPTE-259/292/424
    2x 3G-SDI BNC (2x4 mode), SMPTE-259/292/424

  • Video Output Digital

    8x 3G-SDI BNC, SMPTE-259/292/424
    4x outputs noninverting (1x8 mode)
    2x outputs noninverting for each DA (2x4 mode)

  • Cable Equalization

    (Belden 1694A coax)
    270 Mbps, 350m
    1.5 Gbps, 200m
    3Gbps, 120m

  • Reclocking

    270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps - Auto Select
    All other rates are passed through and not reclocked

  • User Controls

    openGear DashBoard network control software via Windows, macOS or Linux

  • Power

    openGear frame compatible, 2.6 watts max per card

  • Environment

    Safe Operating Temperature: 0 to 40 C (32 to 104 F)
    Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
    Operating Relative Humidity: 10-90% noncondensing
    Operating Altitude: <3,000 meters (<10,000 feet)

  • Size

    openGear standard form-factor, front slot and rear card
    Slots: Two slots required for each card

  • Weight

    8 oz (226.79g)

  • UPC Code

    812321031768

About AJA OG-3GDA-2X4

Let the OG-3GDA-2x4 openGear 3G-SDI Reclocking DA with DashBoard Support elevate your professional video and audio applications. This high-quality, durable, and innovative device is an openGear compatible, state-of-the-art 3G-SDI distribution amplifier. It's designed to automatically equalize incoming 3G-SDI signals on the input channels and reclock the outputs to four 3G-SDI outputs each. Alternatively, it can function as a 1x8-channel DA, enabling the same signal to be distributed to eight destinations simultaneously.

This advanced device offers dual input capability, effectively doubling the number of DAs in limited frame space. It comes with a 10x BNC rear connector module and is designed for use in high-density openGear 2RU frames, including AJA's OG-X-FR frame.

With the new DashBoard software support on Windows, macOS, and Linux, you can remotely control and monitor the openGear architecture. This provides convenient and industry-standard configuration, monitoring, and control options over a PC or local network.

The OG-3GDA-2x4 supports SDI rates of 270Mb, 1.5Gb, and 3Gb, with two SDI inputs and eight SDI outputs. The openGear standard ensures compatibility with other openGear products from certified openGear partners, making this device a reliable choice for your professional needs.

The DashBoard software offers quick and convenient configuration and control of openGear cards on macOS, Windows, and Linux. The modular rear panel allows for custom I/O connections per card. For added reliability, there's an optional redundant power supply that provides a secondary power source in the event of a primary power failure.

A standard Ethernet connection allows the frame to be accessed via the Dashboard application for overall frame communication. Optional per-card Ethernet access can be installed in the frame for advanced communication with compatible openGear cards.

In summary, the OG-3GDA-2x4 openGear 3G-SDI Reclocking DA with DashBoard Support is a high-quality, durable, and reliable choice for your professional video and audio applications.

AJA OG-3GDA-2X4 Features

  • Video Formats: 150 Mbps - 3 Gbps, format agnostic
  • Input: 1x 3G-SDI BNC (1x8 mode); 2x 3G-SDI BNC (2x4 mode)
  • Outputs: 8x 3G-SDI BNC
  • 4 outputs noninverting (1x8 mode)
  • 2 outputs noninverting (2x4 mode)
  • Support for HDR - High Dynamic Range video
  • Monitor via openGear DashBoard
  • Passes embedded audio, all ancillary data including closed caption and time code
  • Input Present and Input SMPTE Lock LEDs
  • Automatic input equalization and output reclocking
  • 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps - Auto Select
  • Power: 2.6 watts max per card
  • Hot swappable
  • Compatible with OGX, OG3 and DFR-8321 openGear frames

Warranty Information

This product has a limited warranty of 60 months.

Key Features

  • Ensure stable streaming with this 3G-SDI reclocking distribution amplifier.
  • Easily manage video formats with auto-select reclocking up to 2.970 Gbps.
  • Achieve good connectivity using openGear DashBoard network control software.
  • Simplify your workflow with this user-friendly video format converter.
  • Enjoy high resolution video output with eight 3G-SDI BNC connections.
  • Extend cable reach with equalization up to 120m for 3Gbps video signals.

What's in the box:

  • OG-3GDA-2X4 openGear 2x4 or 1x8 3G-SDI Reclocking DA
  • AJA 5 Year Limited Warranty
