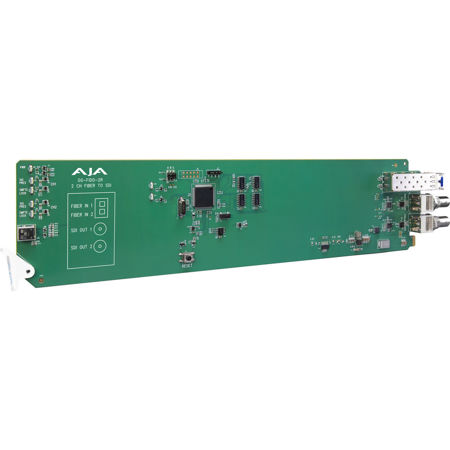

AJA OG-FIDO-2R openGear 2-Channel Single Mode LC Fiber to 3G-SDI Receiver, DashBoard Support

SKU: AJOGFIDO2R MFR: OG-FIDO-2R
Earn VIP Reward Points

Key Features

  • Convert single-mode LC fiber to 3G-SDI with this reliable video format converter.
  • Enjoy seamless 2-channel independent 3G-SDI BNC outputs for professional video workflows.
  • Auto-select reclocking ensures optimal signal integrity at various video data rates.
  • Wide compatibility: Supports SMPTE-259/292/424 standards for versatile format support.
  • Integrate easily into openGear frames, using only 2.5 watts max per card for efficiency.
  • Trust AJA's 5-year warranty for long-term reliability with this high-resolution converter.
See More Product Details
FREE 2-Day Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$79.99

3 Year

$99.99

4 Year

$129.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

AJA OG-FIDO-2R Specifications

  • Video Formats

    150 Mbps - 3 Gbps, format agnostic

  • Video Input Digital

    2-Channel independent Single Mode LC Fiber Outputs, SMPTE-297
    Nominal Wavelength: 1260 - 1620 nm
    Optical Sensitivity: -18dBm (min)
    Overload Power: -3dBm (min)

  • Video Output Digital

    2-Channel independent 3G-SDI BNC Outputs, SMPTE-259/292/424

  • Reclocking

    270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps - Auto Select
    All other rates are passed through and not reclocked

  • Power

    openGear frame compatible, 2.5 watts max per card

  • Environment

    Safe Operating Temperature: 0 to 40 C (32 to 104 F)
    Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
    Operating Relative Humidity: 10-90% noncondensing
    Operating Altitude: <3,000 meters (<10,000 feet)

  • Size

    openGear standard form factor, front slot and rear card. Two slots required for each card.

  • UPC Code

    812321031911

About AJA OG-FIDO-2R

The OG-FiDO-2R is a cutting-edge, openGear compatible, 2-channel Fiber to 3G-SDI converter, expertly designed to extend 3G-SDI signals up to an impressive distance of 10 km (32,808 ft) over standard single mode fiber optic cable. This advanced converter features two fiber inputs that operate independently, allowing for different 3G-SDI rates to be transmitted on each channel.

This device is specifically designed for integration into high-density openGear 2RU frames, including AJA's OG-X-FR frame. It also boasts new DashBoard software support on Windows, macOS, and Linux platforms. This software enables remote control and monitoring of the openGear architecture, offering industry-standard configuration, monitoring, and control options over a PC or local network.

The OG-FiDO-2R converter ensures optimal connectivity with its fiber inputs being reclocked, boasting top-tier input jitter tolerance. It supports 3G-SDI rates of 270Mb, 1.5Gb, and 3Gb. The fiber connector is securely attached to the main card, enhancing reliability and cost-effectiveness.

As an openGear compatible device, the OG-FiDO-2R guarantees compatibility with other openGear products from certified openGear partners. With an ever-expanding list of products, openGear is paving the way for the future of rackframe products.

The DashBoard software, available for download, provides quick and convenient configuration and control of openGear cards on macOS, Windows, and Linux platforms. The modular rear panel allows for custom I/O connections per card, included with individual cards for maximum flexibility.

For added security, an optional redundant power supply can provide a secondary power source in the event of a primary power failure. A standard Ethernet connection allows the frame to be accessed via the Dashboard application for overall frame communication. For advanced communication with compatible openGear cards, optional per-card Ethernet access can be installed in the frame.

AJA OG-FIDO-2R Features

  • Video Formats: 150 Mbps - 3 Gbps, format agnostic
  • Inputs: 2x Single Mode LC Fiber
  • Outputs: 2x 3G-SDI BNC
  • Monitor via openGear DashBoard
  • Input Present and Input SMPTE Lock LEDs
  • Automatic detection and reclocking
  • 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps - Auto Select
  • Nominal Wavelength: 1260-1620 nm
  • Power: 2.5 watts
  • Hot swap capable
  • Compatible with OGX, OG3 and DFR-8321 openGear frames

Warranty Information

This product has a limited warranty of 60 months.

Key Features

  • Convert single-mode LC fiber to 3G-SDI with this reliable video format converter.
  • Enjoy seamless 2-channel independent 3G-SDI BNC outputs for professional video workflows.
  • Auto-select reclocking ensures optimal signal integrity at various video data rates.
  • Wide compatibility: Supports SMPTE-259/292/424 standards for versatile format support.
  • Integrate easily into openGear frames, using only 2.5 watts max per card for efficiency.
  • Trust AJA's 5-year warranty for long-term reliability with this high-resolution converter.

What's in the box:

  • OG-FIDO-2R openGear 2-Channel Single Mode LC Fiber to 3G-SDI Receiver
  • AJA 5 Year Limited Warranty
