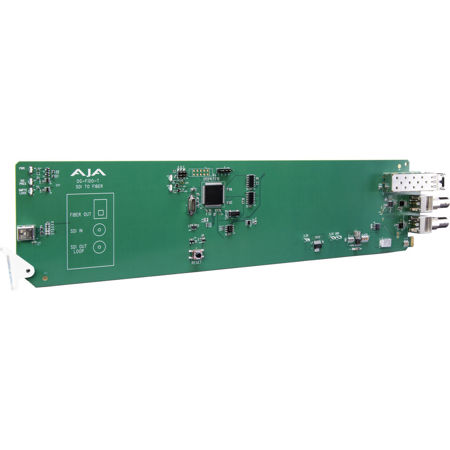

AJA OG-FiDO-T-MM openGear 1-Channel 3G-SDI to Multi-Mode LC Fiber Transmitter
SKU: AJOGFIDOTMM MFR: OG-FIDO-T-MM
Earn VIP Reward PointsKey Features
- Transmit high-quality 3G-SDI video signals over long distances using multi-mode LC fiber.
- Ensure stable video transmission with reclocking at 270 Mbps, 1.483 Gbps, & 2.970 Gbps.
- Use the openGear DashBoard for easy network control on Windows, macOS, or Linux.
- This video format converter supports SMPTE-259/292/424 standards for versatile use.
- Achieve real-time streaming with a 1-Channel independent 3G-SDI input and SDI loop out.
- Enjoy format compatibility with this agnostic converter, supporting 150 Mbps - 3 Gbps.
Special Order?Estimated to Ship: 09/02/2025
Free Shipping
See Options
1
Protect your gear with Adorama Protect.* Learn more
2 Year
$79.99
3 Year
$99.99
4 Year
$129.99
Available to U.S. customers only.
Need help? Ask our experts.
Overview
Compare
Specs
Protection
Q&A
About AJA OG-FiDO-T-MM
Become a part of the future of rackframe products with the OG-FiDO-T-MM openGear 1-Channel 3G-SDI to Multi-Mode LC Fiber Transmitter. This device offers unparalleled flexibility and cost-efficiency for 3G-SDI Fiber conversion, supporting cable runs up to 700 m (2296 ft) for OM4 and 300 m (984 ft) for OM3 for Multi-Mode fiber optic cables. This makes it an ideal solution for eliminating ground loop problems in your setup.
Designed for use in high-density openGear 2RU frames, including AJA's OG-X-FR frame, this transmitter is equipped with new DashBoard software support on Windows, macOS, and Linux. This software allows for remote control and monitoring of the openGear architecture, providing convenient and industry-standard configuration, monitoring, and control options over a PC or local network.
The OG-FiDO-T-MM transmitter features a 3G-SDI input that is reclocked with best-in-class input jitter tolerance. It also provides a reclocked looping 3G-SDI output and supports 3G-SDI rates of 270Mb, 1.5Gb, and 3Gb.
The openGear standard ensures compatibility between AJA cards and other openGear products from certified openGear partners. This growing ecosystem of products solidifies openGear's position as the future of rackframe products.
The modular rear panel of the OG-FiDO-T-MM transmitter allows for custom I/O connections per card, offering flexible I/O options. The device also features an optional redundant power supply for a secondary power source in case of a primary power failure.
A standard Ethernet connection allows the frame to be accessed via the Dashboard application for overall frame communication. Optional per-card Ethernet access can be installed in the frame for advanced communication with compatible openGear cards.
The DashBoard software offers quick and convenient configuration and control of openGear cards on macOS, Windows, and Linux. Information on the complete line of AJA Rackframes and cards is now available in the Mini-Matrix mobile app on iOS. This app helps you find the right converter for any situation, wherever you are, and provides links back to the main AJA website for more product details. The free AJA Mini-Matrix app for iPad and iPhone is available now in the Apple iTunes Store.
AJA OG-FiDO-T-MM Features
- Video Formats: 150 Mbps - 3 Gbps, format agnostic
- Inputs: 1x 3G-SDI with SDI Loop out
- Outputs: 1x 3G-SDI BNC Output; 1x Multi-Mode LC Fiber Output
- Monitor via openGear DashBoard
- Input Present and Input SMPTE Lock LEDs
- Automatic detection and reclocking
- 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps - Auto Select
- Nominal Wavelength: 850nm
- Power: 2.5 watts
- Hot swap capable
- Compatible with OG-X-FR, OG-3-FR and DFR-8321 openGear frames
Warranty Information
This product has a limited warranty of 60 months.
