150 Mbps - 3 Gbps, format agnostic
1-Channel independent 3G-SDI BNC Input, SMPTE-259/292/424
1-Channel Single Mode LC Fiber Input, SMPTE-297
Nominal Wavelength: 1260-1620 nm
Optical Sensitivity: -18dBm (min)
Overload Power: -3dBm (min)
1-Channel independent 3G-SDI BNC Output, SMPTE-259/292/424
1-Channel Single Mode LC Fiber Output, SMPTE-297
Nominal Wavelength: 1310 nm
Optical Power: -5dBm (min), 0dBm (max)
Extinction Ratio: 7.5dB (Typ)
270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps - Auto Select
All other rates are passed through and not reclocked
openGear DashBoard network control software via Windows, macOS or Linux
openGear frame compatible, 2.5 watts max per card
Safe Operating Temperature: 0 to 40 C (32 to 104 F)
Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
Operating Relative Humidity: 10-90% noncondensing
Operating Altitude: <3,000 meters (<10,000 feet)
openGear standard form factor, front slot and rear card. Two slots required for each card.
8 oz (226.79g)
812321031829

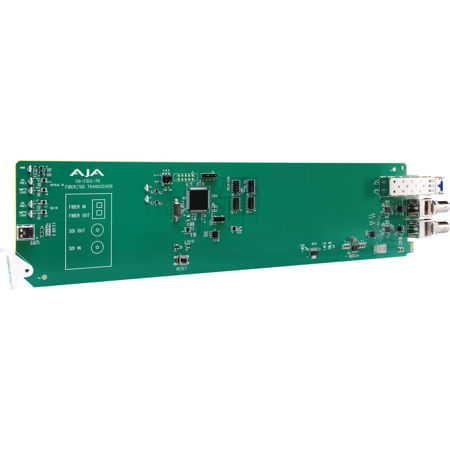

The OG-FiDO-TR from AJA is an innovative and high-quality openGear compatible 3G-SDI/Fiber transceiver, expertly designed for professional video and audio applications that require reliable signal conversion. This advanced transceiver supports both 3G-SDI to Fiber and Fiber to 3G-SDI conversions, ensuring seamless integration into a variety of broadcast, production, and post-production workflows.
Crafted with durability in mind, the OG-FiDO-TR allows for extended cable runs up to 10 kilometers (32,808 feet) when using single-mode fiber, making it an ideal solution for large venues or complex studio environments. Its compatibility with high-density openGear 2RU frames, including AJA's own OG-X-FR frame, underscores its commitment to industry-leading flexibility and cost efficiency.
The new DashBoard software support, available on Windows, macOS, and Linux, provides users with remote control and monitoring capabilities of the openGear architecture. This feature offers a user-friendly and standardized configuration, monitoring, and control options that can be managed over a PC or local network, enhancing the user experience and operational efficiency.
Connectivity is a cornerstone of the OG-FiDO-TR, with both Fiber and 3G-SDI inputs being reclocked to maintain the highest signal integrity and input jitter tolerance. The transceiver supports a range of 3G-SDI rates including 270Mb, 1.5Gb, and 3Gb, and is capable of handling different signal rates independently, ensuring versatility across various media formats.
The openGear compatibility of the OG-FiDO-TR guarantees that this AJA card will work seamlessly with other certified openGear products, offering a future-proof solution within the evolving landscape of rackframe technology. The flexible I/O provided by the modular rear panel allows for custom connections per card, which is included with individual cards, catering to specific user requirements.
For added reliability, the optional redundant power supply feature offers a failsafe by providing a secondary power source in the event of a primary power failure, ensuring uninterrupted operation during critical moments. Additionally, the standard Ethernet connection enables the frame to be accessed via the DashBoard application for comprehensive frame communication. For advanced communication needs, optional per-card Ethernet access can be installed in the frame, further enhancing the functionality of compatible openGear cards.
In summary, the OG-FiDO-TR is a durable, reliable, and advanced solution for professionals seeking high-quality performance in 3G-SDI and fiber signal conversion, backed by the reputable brand AJA. Its innovative design and compatibility with a wide range of devices make it a top choice for those in the broadcast and production industries.
