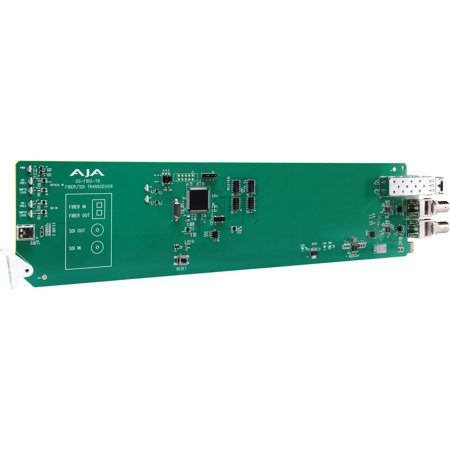

AJA OG-FiDO-TR-12G OpenGear 12G-SDI/LC Single Mode LC Fiber Transceiver

SKU: AJOGFIDTR12G MFR: OG-FIDO-TR-12G
Earn VIP Reward Points

Key Features

  • Effortlessly convert video formats with the AJA OG-FiDO-TR-12G transceiver.
  • Achieve stable connection using 12G-SDI to LC Fiber conversion for live streaming.
  • Enjoy high resolution video signal transmissions up to 12 Gbps, format agnostic.
  • Use openGear DashBoard for easy setup and network control on your preferred OS.
  • This affordable price transceiver supports SMPTE standards for professional video needs.
  • Ensure real-time streaming with auto reclocking at multiple Gbps rates; a must-have!
See More Product Details
Special Order?Estimated to Ship: 08/09/2025
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$99.99

3 Year

$119.99

4 Year

$154.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

AJA OG-FiDO-TR-12G Specifications

  • Video Formats

    270 Mbps - 12 Gbps, format agnostic

  • Video Input Digital

    1-channel independent 12G-SDI BNC connector, SMPTE 259/292/424/2081/2082
    1-channel independent Single Mode LC Fiber connector, SMPTE 297/259/292/424/2081/2082

    Nominal Wavelength:
    Rx 1260 nm (min), 1620 nm (max)

    Optical Sensitivity:
    -10 dBm (min 6 and 12 Gbps)
    -14 dBm (min 270 Mbps, 1.5 Gbps and 3 Gbps)

    Overload Power: -2 dBm (min)

  • Video Output Digital

    1-channel independent 12G-SDI BNC connector, SMPTE-259/292/424/2081/2082
    1-channel independent Single Mode LC Fiber connector, SMPTE-297/259/292/424/2081/2082
    Nominal Wavelength:1260 nm (min), 1310 nm (typ), 1360 nm (max)
    Optical Power: -5 dBm (min), 2 dBm (max)
    Extinction Ratio: 3.5 dB (min)

  • Reclocking

    270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.967 Gbps, 2.970 Gbps, 5.934 Gbps, 5.940 Gbps, 11.868 Gbps, 11.880 Gbps - Auto Select
    All other rates are passed through and not reclocked

  • User Interface

    openGear DashBoard network control software via Windows, macOS or Linux

  • Power

    openGear frame compatible, 3 watts max per card

  • Environment

    Safe Operating Temperature: 32 to 104 F (0 to 40 C)
    Safe Storage Temperature (Power OFF): -40 to 140 F (-40 to 60 C)
    Operating Relative Humidity: 10-90% noncondensing
    Operating Altitude: <3,000 meters (<10,000 feet)

  • Weight

    7.9 oz (226.7g)

About AJA OG-FiDO-TR-12G

Bring cutting-edge technology to your broadcast or production setup with the OG-FiDO-TR-12G OpenGear 12G-SDI/LC Single Mode LC Fiber Transceiver. This advanced device, compatible with openGear, offers unparalleled 12G-SDI to Fiber and Fiber to 12G-SDI conversions, providing a seamless solution for long cable runs up to 10 km (32,808 ft) in single mode.

The OG-FiDO-TR-12G is designed for integration into high-density openGear 2RU frames, including AJA's OG-X-FR frame. It supports industry-standard DashBoard software on Windows, macOS, and Linux platforms, enabling remote control and monitoring over a PC or local network for maximum convenience and efficiency.

Experience superior connectivity with both Fiber and 12G-SDI inputs, which are reclocked with best-in-class input jitter tolerance. The device supports 12G-SDI input and output, including 6G/3G/HD/SD-SDI. The signal paths are independent and can operate at different rates, offering flexibility for diverse broadcasting needs.

The openGear standard ensures compatibility of AJA cards with other certified openGear products, making the OG-FiDO-TR-12G a future-proof addition to your rackframe setup. The modular rear panel allows for custom I/O connections per card, enhancing the device's adaptability.

For added security, the device supports an optional redundant power supply to provide a backup power source in case of primary power failure. Ethernet access enables the frame to be controlled via the Dashboard application for overall frame communication, with optional per-card Ethernet access for advanced communication with compatible openGear cards.

The OG-FiDO-TR-12G also integrates with the AJA Mini-Matrix mobile app on iOS, providing information on the complete line of AJA Rackframes and cards. This app simplifies the process of finding the right converter for any situation, with links back to the main AJA website for more product details.

Incorporate the OG-FiDO-TR-12G OpenGear 12G-SDI/LC Single Mode LC Fiber Transceiver into your setup for a reliable, high-performance solution for 12G-SDI-Fiber conversion.

AJA OG-FiDO-TR-12G Features

  • Video Formats: 270 Mbps - 12 Gbps, format agnostic
  • Inputs: 1x 12G-SDI BNC; 1x Single-Mode LC Fiber Connectors
  • Outputs: 1x 12G-SDI BNC; 1x Single-Mode LC Fiber Connectors
  • Monitor via openGear DashBoard
  • Support for HDR - High Dynamic Range video
  • Input Present and Input SMPTE Lock LEDs
  • Automatic detection and reclocking
  • 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.967 Gbps, 2.970 Gbps, 5.934 Gbps, 5.940 Gbps, 11.868 Gbps, 11.880 Gbps - Auto Select
  • Nominal Wavelength; Tx: 1310 nm (typ), Rx :1260-1620 nm
  • Power: 3 watts Max
  • Hot-swappable
  • Remote Ethernet Monitor through Ross DashBoard software
  • Appropriate Fiber SFP included
  • Rear I/O card included
  • Two slots required for each card
  • Compatible with OG-X-FR, OG-3-FR, and DFR-8321 openGear frames

Warranty Information

This product has a limited warranty of 60 months.

Key Features

  • Effortlessly convert video formats with the AJA OG-FiDO-TR-12G transceiver.
  • Achieve stable connection using 12G-SDI to LC Fiber conversion for live streaming.
  • Enjoy high resolution video signal transmissions up to 12 Gbps, format agnostic.
  • Use openGear DashBoard for easy setup and network control on your preferred OS.
  • This affordable price transceiver supports SMPTE standards for professional video needs.
  • Ensure real-time streaming with auto reclocking at multiple Gbps rates; a must-have!

What's in the box:

  • OG-FiDO-TR-12G OpenGear 12G-SDI/LC Single Mode LC Fiber Transceiver
  • Appropriate Fiber SFP
  • Rear I/O Card
  • AJA 5 Year Limited Warranty
