AJA OG-FS-Mini 3G-SDI Utility Frame Synchronizer with DashBoard Support
AJA OG-FS-Mini: Picture 1 thumbnail
AJA OG-FS-Mini: Picture 2 thumbnail
AJA OG-FS-Mini: Picture 3 thumbnail
See all AJA items

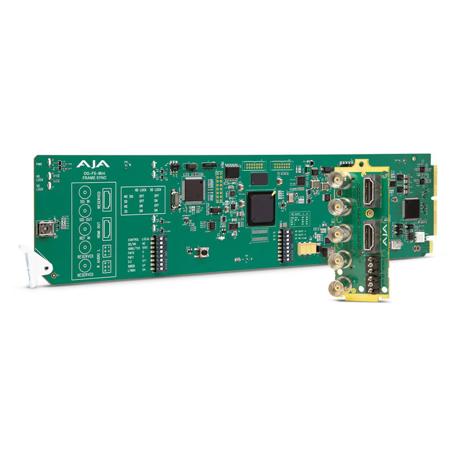

AJA OG-FS-Mini 3G-SDI Utility Frame Synchronizer with DashBoard Support, Simultaneous SDI and HDMI Outputs

SKU: AJOGFSMINI MFR: OG-FS-MINI
Be the first to review this itemAsk a Question
$915.00
OR
$77/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Achieve seamless audio/video sync with the OG-FS-Mini frame synchronizer.
  • Enjoy simultaneous SDI and HDMI outputs for versatile signal processing needs.
  • Easily manage video formats up to 2K with this utility frame synchronizer.
  • Utilize 16-channel embedded SDI audio I/O for professional audio workflows.
  • Perform real-time up/down/cross-conversion with 10-bit hardware precision.
  • Control via DashBoard for Windows, macOS, or Linux for ease of use.
See More Product Details
FREE 2-Day Shipping

See Options

Qty
1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

AJA OG-FS-Mini Specifications

  • Video Formats

    (2K) 2048 x 1080p
    (2K) 2048 x 1080PsF
    (HD) 1920 x 1080p
    (HD) 1920 x 1080PsF
    (HD) 1920 x 1080i
    (HD) 1280 x 720p
    (SD) 625i
    (SD) 525i
    YCbCr, 4:2:2, 10-bit

  • Video Input Digital

    1x 3G-SDI, 1x BNC
    3G/HD/SD, SMPTE-259/292/372/424: Single Link 3G-SDI Level A, SMPTE-425-1
    (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    (2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30
    (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    (HD) 1920 x 1080PsF 23.98, 24, 25, 29.97, 30
    (HD) 1920 x 1080i 50, 59.94, 60
    (HD) 1280 x 720p 50, 59.94, 60
    (SD) 625i 50
    (SD) 525i 59.94

  • Video Output Digital

    1x 3G-SDI outputs, 1x BNC
    3G/HD/SD, SMPTE-259/292/424:
    Single Link 3G-SDI Level A, SMPTE-425-1
    (HD) 1080p 23.98 (for 23.98 video inputs)
    (HD) 1080p 24 (for 24 video inputs)
    (HD) 1080p 25 (for 50 video inputs)
    (HD) 1080p 29.97 (for 59.94 video inputs)
    (HD) 1080p 30 (for 60 video inputs)
    (HD) 1080p 50 (for 50 video inputs)
    (HD) 1080p 59.94 (for 23.98, 59.94 video inputs)
    (HD) 1080p 60 (for 24, 30 or 60 video inputs)

  • Video Output Digital (Cont.)

    (HD) 1080PsF 23.98 (for 23.98 video inputs)
    (HD) 1080PsF 24 (for 24 video inputs)
    (HD) 1080PsF 25 (for 50 video inputs)
    (HD) 1080PsF 29.97 (for 59.94 video inputs)
    (HD) 1080Psf 30 (for 30 or 60 video inputs)
    (HD) 1080i 59.94 (for 23.98, or 59.94 video inputs)
    (HD) 1080i 60 (for 24, 30, or 60 video inputs)
    (HD) 1080i 50 (for 25 or 50 video inputs)

  • Video Output Digital (Cont..)

    (HD) 720p 50 (for 50 video inputs)
    (HD) 720p 59.94 (for 23.98, 59.94 video inputs)
    (HD) 720p 60 (for 24, 30, or 60 video inputs)
    (SD) 625i 50 (for 25 or 50 fps video inputs)
    (SD) 525i 59.94 (for 23.98 or 59.94 video inputs)

  • Monitor Output Digital

    1x HDMI standard type A connector:
    HD/SD
    Color space, YCbCr or RGB
    Bit depth, 8 or 10
    RGB Range, SMPTE or Full Range

  • Video Processing

    Frame rate conversion/film cadence removal/insertion (3:2)
    Freeze (on input signal loss) to black or last good frame
    AFD input detection, down-convert control
    Nominal video delay HD/SD, 1 frame

  • Up-Conversion

    Hardware 10-bit
    4x3 Pillar: Results in a 4x3 image at center screen with black sidebars
    14x9 Pillar: Results in a 4x3 image zoomed slightly to fill a 14x9 image with black side bars
    Full Screen: Results in a 4x3 image stretched horizontally to fill in a 16x9 screen
    Letterbox to Full: Results in image zoomed to fill full screen
    Wide Zoom: Results in a combination of zoom and horizontal stretch to fill a 16x9 screen; this setting will introduce a small aspect ratio change

  • Down-Conversion

    Hardware 10-bit
    Crop: Image is cropped to fit new screen size
    Anamorphic: HD image is converted to full-screen SD with a 16x9 aspect ratio
    14x9: Image is reduced slightly with aspect ratio preserved, black is added top and bottom and the left and right sides are cropped
    Auto AFD: Automatically selects the best down-convert mode based on the input video's Active Format Description (AFD) code

  • Down-Conversion (Cont.)

    Letterbox: Image is reduced with black top and bottom added to image area with the aspect ratio preserved

  • Cross-Conversion

    Hardware 10-bit
    1080i to 720p
    720p to 1080i
    720p to 1080PsF

  • Aspect Ratio Conversation for SD to SD

    Letterbox: Transforms SD anamorphic material to a letterboxed image
    H Crop: Produces a horizontally stretched effect on the image; transforms anamorphic SD to full frame
    SD Pillarbox: Produces an image in the center of the screen with black borders on the left and right sides and an anamorphized image in the center
    V Crop: Transforms SD letterbox material to an anamorphic image
    14x9: Anamorphic to 14x9 conversion

  • Audio Input Digital

    48 kHz sample rate
    1x SDI embedded input: 16-channels, 24-bit (20-bit SD), SMPTE-272/299

  • Audio Output Digital

    48 kHz sample rate
    1x SDI embedded output: 16-channels, 24-bit (20-bit SD), SMPTE-272/299

  • Audio I/O

    16-channel embedded SDI audio input
    16-channel embedded SDI audio output
    8-channel HDMI audio output
    Balanced analog audio outputs, 2x 3-Pin terminal block connectors

  • Reference Input

    Supported reference video inputs include:
    1080i tri-level sync
    1080p tri-level sync
    720p tri-level sync
    625i Color Black
    525i Color Black

    75-ohm terminating

  • Genlock

    Lock to External Reference
    Lock to SDI input
    Free run

  • HDCP

    The OG-FS-Mini does not encode the HDMI output with HDCP encryption. By definition, HD-SDI inputs to the OG-FS-Mini are unencrypted. The HDMI specification requires HDMI monitors to support unencrypted inputs

  • User Interface

    External DIP switch
    openGear DashBoard network control software via Windows, macOS or Linux

  • Power

    openGear frame compatible, 7.0 watts max per card

  • Environment

    Safe Operating Temperature Range: 0 to 40 deg. C (32 to 104 deg. F)
    Safe Storage Temperature (Power OFF): -40 to 60 deg. C (-40 to 140 deg. F)
    Operating Relative Humidity: 10-90% noncondensing
    Operating Altitude: <3000m(<10000')

  • Weight

    0.5 lbs (0.23kg)

  • UPC Code

    812321031966

About AJA OG-FS-Mini

The OG-FS-Mini 3G-SDI Utility Frame Synchronizer is a robust and high-quality openGear broadcast utility that incorporates AJA's industry-leading FS frame sync technology into a versatile openGear card format. Designed for professional video synchronization, this device ensures seamless integration of untimed 3G-SDI, HD, and SD video signals, making it an essential tool for broadcast engineering and live event production.

Crafted with durability and reliability in mind, the OG-FS-Mini offers simultaneous SDI and HDMI outputs, allowing users to effortlessly synchronize and convert a diverse range of video formats to their house standard. The unit features a 3G-SDI input and output, HDMI output, and two 3-pin terminal block connectors for balanced analog audio outputs, providing innovative and user-friendly solutions for complex video and audio setups.

The OG-FS-Mini stands out with its high-quality up, down, and cross-conversion capabilities, ensuring that video signals are optimized for any production requirement. It is specifically engineered for use in high-density openGear's 2RU frames, including AJA's OG-X-FR frame, offering a streamlined and space-efficient setup.

With DashBoard software support available on Windows, macOS, and Linux, the OG-FS-Mini enables remote control and monitoring of the openGear architecture. This industry-standard software provides convenient configuration, monitoring, and control options over a PC or local network, enhancing the user experience with intuitive management tools.

The device's flexible I/O is supported by a modular rear panel, which allows for custom I/O connections per card, ensuring that the OG-FS-Mini can adapt to the specific needs of any production environment. Additionally, the optional redundant power supply feature offers a failsafe mechanism, providing a secondary power source in the event of a primary power failure.

Network connectivity is streamlined with a standard Ethernet connection, allowing the frame to be accessed via the DashBoard application for comprehensive frame communication. Optional per-card Ethernet access can also be installed in the frame for advanced communication with compatible openGear cards.

AJA's technical support is renowned for its excellence, offering industry-leading assistance to all customers. Whether it's installation, configuration, operation, or technical issues, AJA Support is committed to ensuring that your openGear products are functioning at their best.

The OG-FS-Mini is not only compatible with other openGear products from certified openGear partners but is also backed by a generous five-year international warranty, solidifying its place as a reliable and future-proof investment for any professional video production setup.

AJA OG-FS-Mini Features

  • openGear compatible card
  • Utility frame sync function times input signals to an external reference
  • Supports bi-level and tri-level references
  • High quality 10-bit video processing
  • Low latency processing, nominal video delay of 1 frame
  • Freeze (on input signal loss) to black or last good frame
  • Supports 1080p, 1080i, 720p, 625i, 525i and SDI input signals
  • Simultaneous SDI and HDMI outputs
  • 16-channel embedded SDI audio I/O
  • 8-channel HDMI output audio
  • 2x 3-pin terminal block connectors for analog audio output
  • Utility frame rate conversion, supports 3:2 pulldown
  • Up, down, cross conversion between 3G, HD and SD video formats
  • AFD input detection, down-convert control
  • Remote configuration through Ross DashBoard software
  • Rear I/O card included
  • Compatible with OG-X-FR, OG3 and DFR-8321 openGear frames
  • Five year warranty
