AJA OG-Hi5-4K-Plus 3G-SDI to HDMI 2.0 Converter with DashBoard Support
See all AJA items

AJA OG-Hi5-4K-Plus 3G-SDI to HDMI 2.0 Converter with DashBoard Support

SKU: AJOGHI54KPLS
Be the first to review this item

This item is no longer available.

Recommended Alternatives

AJA HI5-12G-R: Picture 1 regular
AJA Hi5-12G-R 12G-SDI to HDMI 2.0 Mini-Converter with Fiber Receiver
$1,295.00
AJA HI5-12G-TR: Picture 1 regular
AJA Hi5-12G-TR 12G-SDI to HDMI 2.0 Mini-Converter with Fiber Transceiver
$1,555.00
AJA OG-ROI-SDI: Picture 1 regular
AJA OG-ROI-SDI openGear 3G-SDI to 3G-SDI/HDMI Scan Converter
$1,295.00
AJA Hi5-4K-Plus: Picture 1 regular
AJA Hi5-4K-Plus Pristine 3G-SDI to HDMI 2.0 Conversion
$865.00
See More Recommendations
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What types of video sources does the OG-Hi5-4K-Plus support?

The OG-Hi5-4K-Plus supports 4K/UltraHD/2K/HD/SD sources, offering superior conversion for a wide range of professional video devices.

Does the OG-Hi5-4K-Plus support HDR?

Yes, the OG-Hi5-4K-Plus generates HDR metadata in line with HDMI v2.0a/CTA-861.3 standards. It supports HDR for HDR 10 and HLG, providing a wider and richer range of colors, brighter whites, and deeper blacks.

What is the role of the DashBoard network control software in the OG-Hi5-4K-Plus?

The DashBoard network control software offers industry-standard configuration, monitoring, and control options for the OG-Hi5-4K-Plus over a PC or local network.

Does OG-Hi5-4K-Plus support Ethernet access?

Yes, the OG-Hi5-4K-Plus offers Ethernet access for advanced communication with compatible openGear cards.

Can the OG-Hi5-4K-Plus be used for converting HD-SDI to HDMI?

Yes, the OG-Hi5-4K-Plus is a useful tool for converting HD-SDI to HDMI, ensuring your audio is always in sync and can be easily played back on the connected monitor.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

AJA OG-Hi5-4K-Plus Specifications

  • Video Formats

    (4K) 4096 x 2160p
    (UltraHD) 3840 x 2160p
    (2K) 2048 x 1080p
    (HD) 1920 x 1080p
    (HD) 1920 x 1080i
    (HD) 1280 x 720p
    (SD) 720 x 576i
    (SD) 720 x 480i

  • Video Input Digital

    4x 3G-SDI BNC, SMPTE-259/292/424
    YCbCr 4:2:2/4:4:4
    RGB 4:4:4, SMPTE or Full level
    8 or 10-bit
    Two Sample Interleave (2SI) or Square Division (Quadrant) source mapping

    4x 3GB SDI (Level A or B-Dual Link)
    (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    (4K) 4096 x 2160PsF 23.98, 24, 25, 29.97, 30
    (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    (UltraHD) 3840 x 2160PsF 23.98, 24, 25, 29.97, 30

  • Video Input Digital (Cont)

    4x 1.5GB SDI
    (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30
    (4K) 4096 x 2160PsF 23.98, 24, 25, 29.97, 30
    (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30
    (UltraHD) 3840 x 2160PsF 23.98, 24, 25, 29.97, 30

    2x 3GB SDI (Level B-Dual Stream)
    (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30
    (4K) 4096 x 2160PsF 23.98, 24, 25, 29.97, 30
    (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30
    (UltraHD) 3840 x 2160PsF 23.98, 24, 25, 29.97, 30

  • Video Input Digital (Cont.)

    1x 3GB SDI (Level A or B-Dual Link)
    (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    (2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30
    (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    (HD) 1920 x 1080PsF 23.98, 24, 25, 29.97, 30
    (HD) 1920 x 1080i 50, 59.94, 60
    (HD) 1280 x 720p 50, 59.94, 60

    2x 1.5GB SDI
    (HD) 1920 x 1080p 50, 59.94, 60

  • Video Input Digital (Cont..)

    1x 1.5GB SDI
    (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30
    (2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30
    (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30
    (HD) 1920 x 1080PsF 23.98, 24, 25, 29.97, 30
    (HD) 1920 x 1080i 50, 59.94, 60
    (HD) 1280 x 720p 50, 59.94, 60

    1x 270MB SDI
    (SD) 625i 50
    (SD) 525i 59.94

  • Video Output Digital

    1 x HDMI Type A connector, HDMI v2.0
    YCbCr 4:2:2/4:4:4/4:2:0
    RGB 4:4:4, SMPTE or Full level
    8 or 10-bit (HFR 4K/UltraHD 4:4:4 limited to 8 bit)
    HDR Info frame generation as defined in CTA-861.3 and HDMI v2.0a
    (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60

  • Video Output Digital (Cont.)

    (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    (HD) 1920 x 1080i 50, 59.94, 60
    (HD) 1280 x 720p 50, 59.94, 60
    (SD) 720 x 576i 50
    (SD) 720 x 480i 59.94

  • Audio Input Digital

    SDI embedded audio, 24-bit, 8-Channel

  • Audio Output Digital

    HDMI embedded audio, 24-bit, 8-Channel

  • Audio I/O

    8-Channel embedded SDI audio input
    8-Channel HDMI audio output

  • User Controls

    openGear DashBoard network control software via Windows, macOS or Linux

  • Power

    openGear frame compatible, 12.0 watts max per card

  • Safe Operating Temperature

    0 to 40 deg. C (32 to 104 deg. F)

  • Safe Storage Temperature

    -40 to 60 deg. C (-40 to 140 deg. F) (Power OFF)

  • Operating Relative Humidity

    10-90% noncondensing

  • Operating Altitude

    <3,000 meters (<10,000 feet)

  • Weight

    0.5 lbs (0.23kg)

  • UPC Code

    812321031409

About AJA OG-Hi5-4K-Plus

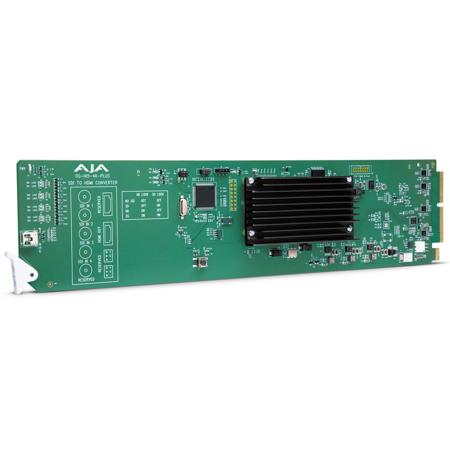

The OG-Hi5-4K-Plus is a high-quality, advanced 3G-SDI to HDMI 2.0 converter, designed to seamlessly integrate into your professional video setup. This efficient and reliable openGear card offers superior conversion for 4K/UltraHD/2K/HD/SD sources, supporting up to 60p from professional 4K/UltraHD devices when connected to HDMI 2.0 displays.

This durable converter generates HDR metadata in line with HDMI v2.0a/CTA-861.3 standards, offering a simple yet effective monitoring connection from 4K devices with Quad 3G-SDI or Dual 3G-SDI outputs to compatible HDMI 2.0 displays. It supports two sample interleave (2SI) or square division (Quadrant) source mapping, ensuring high-quality conversion and minimal loss of quality.

The OG-Hi5-4K-Plus is equipped with 4x 3G-SDI inputs and supports 4:2:2/4:4:4 HDMI 2.0 output. It is controlled by DashBoard network control software, offering industry-standard configuration, monitoring, and control options over a PC or local network.

This converter supports HDR for HDR 10 and HLG, providing a wider and richer range of colors, brighter whites, and deeper blacks. It also supports High Frame Rate (HFR) inputs, allowing 4K/UltraHD signals at 50 or 60p to be output at up to 60p for viewing with appropriate HDMI 2.0 capable displays.

The OG-Hi5-4K-Plus is also a useful tool for converting HD-SDI to HDMI, ensuring your audio is always in sync and can be easily played back on the connected monitor. It offers flexible I/O with a modular rear panel allowing custom I/O connections per card.

With an optional redundant power supply for failsafe operation and Ethernet access for advanced communication with compatible openGear cards, the OG-Hi5-4K-Plus is a reliable and efficient solution for your professional video conversion needs.

AJA OG-Hi5-4K-Plus Features

  • High-quality 3G-SDI to HDMI 2.0 converter for professional video equipment
  • Supports 4K/UltraHD/2K/HD/SD sources with up to 60p output
  • Generates HDR metadata for a wider and richer range of colors
  • Controlled by DashBoard network control software for industry-standard configuration
  • Supports High Frame Rate (HFR) inputs for 4K/UltraHD signals
  • Offers flexible I/O with a modular rear panel and Ethernet access for advanced communication

Warranty Information

This product has a limited warranty of 60 months.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • High-quality 3G-SDI to HDMI 2.0 converter for professional video equipment
  • Supports 4K/UltraHD/2K/HD/SD sources with up to 60p output
  • Generates HDR metadata for a wider and richer range of colors
  • Controlled by DashBoard network control software for industry-standard configuration
  • Supports High Frame Rate (HFR) inputs for 4K/UltraHD signals
  • Offers flexible I/O with a modular rear panel and Ethernet access for advanced communication

What's in the box:

  • AJA OG-Hi5-4K-Plus 3G-SDI to HDMI 2.0 Converter with DashBoard Support
  • AJA 5 Year Limited Warranty
