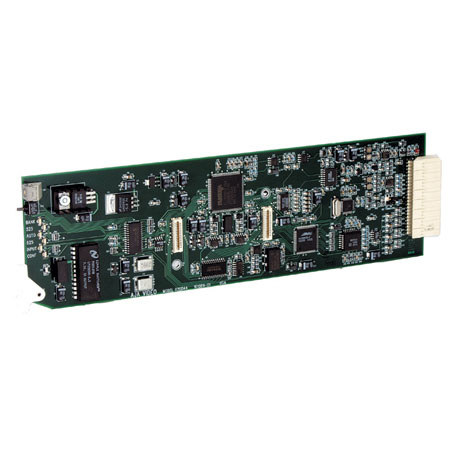

AJA R20AD Analog Video to SDI Converter
See all AJA items

AJA R20AD Universal Component - Composite to SDI Converter, 10 Bit

SKU: AJR20AD

This item is no longer available.

Recommended Alternatives

AJA FS1-X: Picture 1 regular
AJA FS1-X Frame Synchronizer & Converter with MADI Audio
$4,575.00
AJA OG-4K2HD: Picture 1 regular
AJA OG-4K2HD openGear 4K/UltraHD-SDI to 3G-SDI Down-Converter
$909.00
AJA V2Digital: Picture 1 regular
AJA V2Digital Component/Composite Analog to HD/SD-SDI Mini-Converter
$455.00
See More Recommendations
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

AJA R20AD Specifications

  • Input Format

    Component (YPbPr, Betacam), PAL and NTSC Composite and Y/C (S Video)

  • Input Level

    1Vp-p

  • Output

    SMPTE 259 Serial Digital Component

  • Reference Input Format

    NTSC or PAL Analog Color Black

  • Number of Outputs

    4 BNC

  • A/D Converters

    10-bits, 2x oversampling

  • Size

    Fits AJA R-Series Frames. Compatible with Leitch 6800 Series Frames.

  • Frequency Response

    Y +/- .15dB to 5.5MHz
    C +/- .15dB to 2.5MHz

  • Power Consumption

    7 Watts (8 watts w/Frame Sync option)

  • Warranty

    AJA 5 years parts & labor warranty

About AJA R20AD

The AJA R20AD provides excellent-quality 10-bit conversion to SDI from component or NTSC/PAL sources. The R20AD accepts YPbPr (SMPTE, EBUN10), Betacam, or RGB component inputs and NTSC/PAL or Y/C (S-Video) composite inputs. Featured in the R20AD is a 4 Line Adaptive Comb Filter for high quality decoding of composite sources. The comb filter can be switched to 2-line, or notch modes for minimum delay requirements.

The R20AD also accommodates an optional FSG card (Frame Sync) for synchronizing the output video relative to an external reference. NTSC/PAL configuration is automatic. Video format, AGC, H/V blanking and pedestal are all user configurable.

AJA R20AD Features

  • Excellent quality 10-bit adaptive comb filter decoding
  • Component (YPbPr, Betacam, RGB), PAL and NTSC Composite and Y/C (S-Video) inputs
  • Four serial outputs (SMPTE 259M)
  • Automatic NTSC/PAL selection
  • Configurable pedestal and Comb filter
  • 2X Oversampling
  • Frame Sync/Genlock option with external reference inputs and full timing adjustment
  • Plug compatible with several other manufacturers' video frames

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Four serial outputs (SMPTE 259M)
  • Automatic NTSC/PAL selection
  • Configurable pedestal and Comb filter
  • 2X Oversampling

What's in the box:

  • AJA 5 years parts & labor warranty
