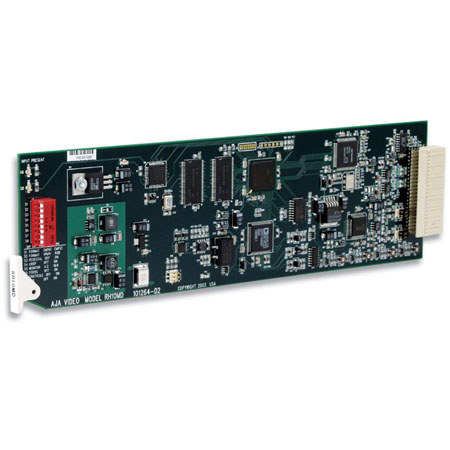

AJA RH10MD HD-SDI to 10 Bit SDi Downconverter
See all AJA items

AJA RH10MD HD-SDI to 10 Bit SDI Downconverter and Re-clocking 1x4 HD-SDI/SDI DA

SKU: AJRH10MD

This item is no longer available.

Recommended Alternatives

AJA SD/HD/3G: Picture 1 regular
AJA FiDO-R Single-Channel Optical Fiber to SD/HD/3G
$559.00
AJA FS1-X: Picture 1 regular
AJA FS1-X Frame Synchronizer & Converter with MADI Audio
$4,399.00
AJA OG-12GM: Picture 1 regular
AJA OG-12GM openGear 12G-SDI to/from SDI Muxer/DeMuxer
$1,189.00
AJA OG-4K2HD: Picture 1 regular
AJA OG-4K2HD openGear 4K/UltraHD-SDI to 3G-SDI Down-Converter
$909.00
See More Recommendations
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

AJA RH10MD Specifications

  • Formats

    HD: 1080i 50/59.94/60 Hz
    1080p/psf 23.98/24/25/29.97/30 Hz
    720p 23.98/24/25/29.97/30/50/60 Hz

  • Inputs

    HD-SDI or SDI SMPTE 259/292/296, 10-bit, BNC

  • Outputs

    SDI, SMPTE 259M, 10-bit, BNC
    YPbPr - SMPTE, EBU-N10, Betacam
    RGB, NTSC, PAL, Y/C (S-Video), 10-bit
    3 x BNC

  • Downconversion

    Multi-point interpolation, 10-bit processing
    3:2 conversion for 23.98/24p/psf inputs

  • User Controls

    External Dipswitch
    Output Video Format
    4:3/16:9 Monitor Select
    Letterbox/Crop
    Pedestal (Output)
    4:3 Safe-Zone Graticule Overlay

  • Power

    5 watts

  • Size

    Fits AJA R-Series Frames

  • Warranty

    AJA 5 years parts & labor warranty

About AJA RH10MD

The AJA RH10MD is a 10-bit broadcast-quality HD down converter and HD-SDI/SDI distribution amplifier. There are 4 re-clocked HD-SDI/SDI outputs and four down-converted SD outputs. The SD outputs can be individually configured as analog or SDI - analog can be component or composite. All HD formats are supported including 24p/psf with 3:2 pulldown.

The SD output can be formatted for either 4:3 or 16:9 monitors. For 4:3 monitors both Letterbox and Crop modes are supported. The RH10MD is also dual-rate (HD/SD) and will support SDI inputs. 4 Ch AES embedded audio is passed through to the SDI outputs. The RH10MD is compatible with AJA's FR1 or FR2 frames

AJA RH10MD Features

  • Broadcast quality 10-bit HD to SD down conversion
  • Broadcast quality 10-bit SDI and analog output
  • 4 Equalized, Re-clocked DA outputs-HD-SDI or SDI (outputs follow input)
  • Multi-Standard input, including 1080p24sf (3:2 pulldown)
  • Configurable for 16:9 or 4:3 monitor
  • Crop Mode or Letterbox Mode
  • 4:3 Safe Zone graticule
  • Supports 4-channel embedded audio (passed to SDI output)
  • Audio features high quality 10-bit encoding and 4-times oversampling

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Broadcast quality 10-bit HD to SD down conversion
  • Broadcast quality 10-bit SDI and analog output
  • Multi-Standard input, including 1080p24sf
  • Configurable for 16
  • Crop Mode or Letterbox Mode
  • 4:3 Safe Zone graticule

What's in the box:

  • AJA 5 years parts & labor warranty
