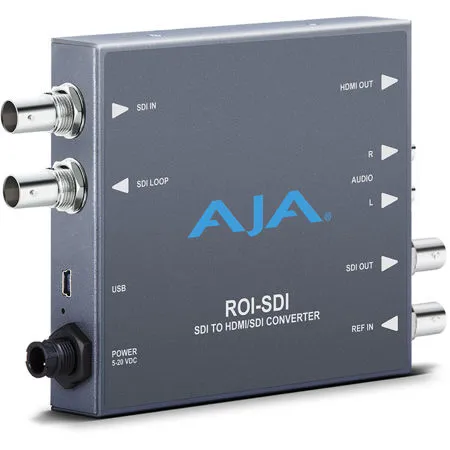

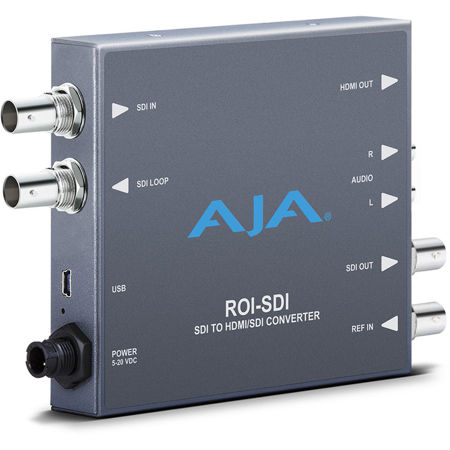

AJA ROI-SDI 3G-SDI to HDMI/3G-SDI Scan Converter with ROI Scaling

SKU: AJROISDI MFR: ROI-SDI
Earn VIP Reward Points

Key Features

  • Scale any SDI source with this ROI-SDI scan converter to fit your HDMI display perfectly.
  • Enjoy pristine image quality with the 3G-SDI to HDMI conversion for professional workflows.
  • Easily configure this video format converter via USB with the included Mini-Config software.
  • Get seamless audio integration with embedded SDI and HDMI audio outputs for clear sound.
  • Utilize the reference input for stable performance, ensuring reliable video synchronization.
  • This affordable converter supports multiple HD and SD video formats, integrating easily.
See More Product Details
FREE 2-Day Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$89.99

3 Year

$109.99

4 Year

$139.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

AJA Scan Converter Specifications

  • Video Formats

    HD: 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    HD: 1080i 25, 29.97, 30
    SD: 720p 50, 59.94, 60
    SD: 625i 25
    SD: 525i 29.97

  • Reference Input

    1080i tri-level sync
    1080p tri-level sync
    720p tri-level sync
    625i color black
    525i color black

  • Video Input

    1 x 3G-SDI BNC, SMPTE-259/292/424

  • Video Outputs

    1 x 3G-SDI BNC, loop through
    1 x 3G-SDI BNC, SMPTE-259/292/424
    1 x HDMI Type A, HDMI v1.4

  • HDCP

    ROI does not encode the HDMI output with HDCP encryption

  • Audio Outputs Digital

    SDI embedded audio, 24-bit, 8-channel, HDMI embedded audio, 24-bit, 2-channel or 8-channel

  • Audio Outputs Analog

    2 x Analog RCA jack, 2-channel

  • User Controls

    USB port used with supplied cable and Mini-Config software application to configure device via Mac or Windows

  • Environment

    Operating Temperature: 32 to 104 Degree F (0 to 40 Degree C)
    Storage Temperature (Power Off): -40 to 140 Degree F (-40 to 60 Degree C)
    Operating Relative Humidity: 10 to 90% non-condensing
    Operating Altitude: <10,000' (<3,000 m)

  • Power

    Uses AJA power supply model DWP-U-R1 (included with purchase)
    100 to 240 VAC, 50/60 Hz universal input 5 to 20 VDC regulated, 8 W maximum

  • Dimensions

    15cm x 10cm x 23cm (5.8 x 4.1 x 0.9")

  • Weight

    0.6 lbs (300 g)

  • UPC Code

    812321030037

About AJA Scan Converter

Find the perfect solution for your high-quality video conversion needs with the ROI-SDI 3G-SDI to HDMI/3G-SDI Scan Converter with ROI Scaling. Manufactured by the reputable brand, Aja, this innovative device is designed to deliver exceptional conversion of computer and video signals in a compact, mini-converter form factor.

The ROI-SDI Scan Converter stands out with its Region of Interest (ROI) support, enabling computer signals such as DVI, DP, and HDMI to be scaled and converted to SDI video seamlessly. This device also supports video-to-video conversion with ROI extraction via 3G-SDI input to 3G-SDI and/or HDMI, providing a versatile solution for various video applications.

Experience superior image scaling, comprehensive aspect ratio, and frame rate conversion with this efficient converter. It is designed to scale computer and video to your desired resolution in real-time, eliminating extra interface clutter and menu bars. This allows you to extract only the portion of the computer screen or 3G-SDI source you need.

The ROI-SDI Scan Converter is also USB-enabled and compatible with AJA's free Mini-Config software. This user-friendly software provides a graphical interface with detailed information about the current input and output formats. It allows you to control all the parameters of any supported AJA Mini-Converter and load firmware updates from AJA that add new features and functionality.

This durable and reliable converter comes with a universal power supply that includes international plug connections for use around the world. Its compact and portable design makes it easy to fit behind a monitor, in the back of a rack, or directly on a camera rig. The device also features a locking power connector to prevent accidental disconnections and an optional P-TAP power cable for battery power in remote locations.

In conclusion, the ROI-SDI 3G-SDI to HDMI/3G-SDI Scan Converter with ROI Scaling is a high-quality, versatile, and efficient solution for professional video conversion needs in the film and video industry.

AJA Scan Converter Features

  • 3G-SDI to HDMI/3G-SDI Scan Converter with Region of Interest Scaling and direct 3G-SDI loop-through
  • 3G-SDI to 3G-SDI conversion
  • 3G-SDI to HDMI conversion
  • Region of Interest scaling
  • SDI loop through
  • Audio disembedding
  • Aspect ratio conversion
  • Genlock input
  • Configure via USB port and supplied Mini-Config software
  • Uses 5-18VDC power (universal power supply included)

Warranty Information

This product has a limited warranty of 60 months.

Key Features

  • Scale any SDI source with this ROI-SDI scan converter to fit your HDMI display perfectly.
  • Enjoy pristine image quality with the 3G-SDI to HDMI conversion for professional workflows.
  • Easily configure this video format converter via USB with the included Mini-Config software.
  • Get seamless audio integration with embedded SDI and HDMI audio outputs for clear sound.
  • Utilize the reference input for stable performance, ensuring reliable video synchronization.
  • This affordable converter supports multiple HD and SD video formats, integrating easily.

What's in the box:

  • ROI Scan Converter with ROI Scaling
  • Universal Power Supply
  • AJA 5 Year Limited Warranty
