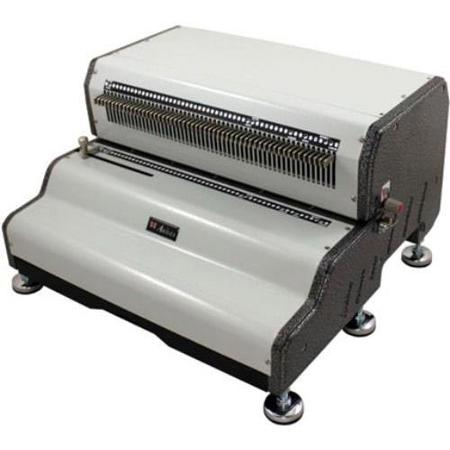

Akiles CoilMac-ECP Plus 13.5" Heavy Duty Electric Coil Punch Machine, Oval Hole

With its heavy-duty punch motor and complete system of functions, the Akiles CoilMac-ECP makes coil binding fast, convenient and professional, while giving you the flexibility to upgrade to our Finish at Coil electric inserters.

Oval holes
Special 4 x 5mm oval holes. The first & only equipment of its class to offer this advanced feature. Makes coil insertion much faster as compared to standard round holes. When used together with our HD Electric Coil Inserter, it will drastically save your coil insertion time by up to 50%.

Fully Disengage able Pins
For a completely clean & professional punching of any paper size, all 54 pins can be independently pulled & disengaged.

Letter 4:1 pitch (0.248")
This revolutionary 0.248" coil pitch is specifically designed to give you 44 evenly-centered holes in an 11" sheet, which provides the most ideal hole to edge-of-sheet margins and easier coil insertion. Hole pattern is 100% compatible with Standard 4:1 pitch coils.

• Extra-High-Capacity Waste Drawer
• 6 Height-Adjustable Non-Skid Metal Feet
• Includes Coil Diameter Selector & Premium Oval Coil Crimpers

Electric Punch Operation
Powerful punching capability with a simple press of foot pedal.

Extended Single Punching Length (13")
With open ends & continuous punch guide to easily punch documents of any length (up to 26").

High Volume Punch Capacity
Suggested up to 25-sheet for 20 lbs paper or 2.6mm (28-sheet equivalent) for hardboard, in 13" length (54 holes).

Super Strength Punch Mechanism with exclusive "Precision Guiding System&trade" Blade Set
Cast-hardened & heat-treated steel dies provide superior strength & hardness. Exclusive "precision guiding system" guarantees a sharp & clean perforation every time.

Electric Reverse (Anti-Jam) Function
For trouble-free punching.

Finish at Coil Compatible
Included mounts allow for a Finish at Coil-M or E1 to be securely mounted on top of the CoilMac-ECP41 or ECP41+ (sold separately). This upgrade will offer operator the electric binding and/or crimping feature, on all coil sizes (up to 50mm).

Side Margin Control
Provides an evenly centered punch for all document sizes.

Punching Margin Control
Provides the correct punch-margin-depth for each coil size and maximizes the document's tear resistance.

Open Throat and Continuous Punch Guide
For an easy alignment and punching of longer documents up to 26".

Rugged ALL Metal Construction
Makes it the most reliable & durable coil binding system in its class.

CE Certification
All components certified & approved by CE for most stringent safety requirements.

ISO9001 & 14001 Quality
Manufactured under ISO9001 & 14001 guidelines for highest quality control & environmental management standards.
