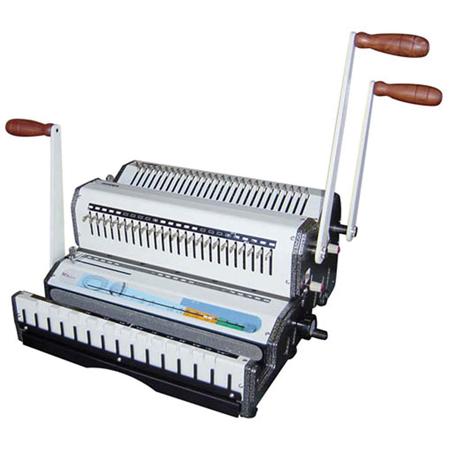

Akiles DuoMac-321/WireMac-Duo Punching/Binding Machine (3:1 and 2:1 Pitch Wire)

Akiles DuoMac-321/WireMac-Duo Heavy Duty 2-in-1 Punching and Binding Machine (3:1 and 2:1 Pitch Wire)

SKU: AKADM321
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Akiles DuoMac-321/WireMac-Duo Specifications

  • Punching Pitch

    3:1, 3 holes per 1"
    2:1, 2 holes per 1"

  • Disengageable Dies

    40 dies
    27 dies

  • Punching Holes

    Square 4 x 4mm (0.16 x 0.16")
    Rectangular 4 x 5.5mm (0.16 x 0.22")

  • Binding Capacity

    3/16" - 9/16"
    5/8 - 1-1/4"

  • Punching Length

    14" (35.56cm) with open throats for longer documents

  • Punching Capacity

    20 sheets of 20 lbs bond paper

  • Die Disengagement Pins

    For a clean and complete punching with different paper sizes

  • Continuous Punch Guide

    3:1 Only & Open Throats: For punching documents larger than 14"

  • Depth Margin Controls

    Provides the correct punching margin depth needed for all wire sizes and maximizes the document's tear resistance

  • Side Margin Controls

    Provides a well-centered punch for all document sizes

  • Master Selector

    Determines the correct: Wire Diameter, Closing Position, Depth Margin, Wire Pitch

  • Diameter Scale

    Measures document's thickness in order to select best wire size option

  • Wire Closer Control

    Adjusts the wire closer to close wires from 3/16" to 1-1/4"

  • Closing Mechanism

    Vertical

  • Wire Snatch

    Holds wire in place for easier inserting of sheets

  • Cubit Feet

    2.22 CbFt

  • Dimensions (HxLxW)

    20 x 26 x 20" (50.80 x 66.04 x 50.80cm)

  • Weight

    53 lbs (24.04kg)

About Akiles DuoMac-321/WireMac-Duo

The All-In-One Wire Punch & Binding Equipment (Punches and Closes 3:1and 2:1 Pitch Wires)
Based on the best selling WireMac, the WireMac-Duo / DuoMac-321 has both die sets installed in one single unit, with no need to change dies. This new Wire Binding System is all you need to wire punch and bind from 2 sheets to over 200 sheets!

Akiles DuoMac-321/WireMac-Duo Features

  • Punches and Closes both 3:1 and 2:1 Pitch Wires
  • 20 sheets single punching capacity (20 lbs paper)
  • 14" width punching capacity with open sides for even wider documents
  • All dies can be independently disengaged, to allow the punching of any size document while preventing partial side-end perforation
  • Closing capacity - From 3/16" to 1-1/4"
  • All metal construction

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Akiles DuoMac-321/WireMac-Duo Heavy Duty 2-in-1 Punching and Binding Machine (3:1 and 2:1 Pitch Wire)
  • Akiles 1 Year Warranty
