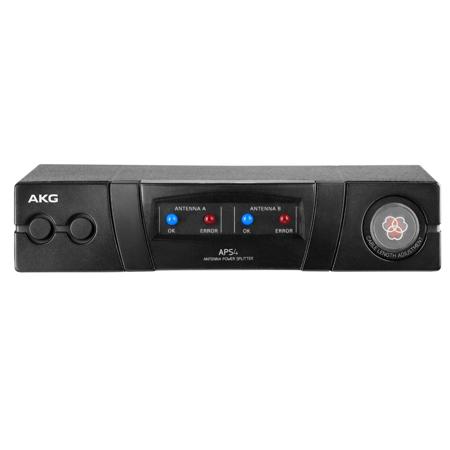

AKG APS4/NONE Antenna Power Splitter, 470 to 952MHz

An advanced solution for your audio needs, the APS4/NONE Antenna Power Splitter operates in a wide-band UHF range, specifically from 470 to 952 MHz, providing maximum flexibility for your audio setup. This active antenna and power splitter is designed to efficiently distribute the RF signal from a single pair of antennas to up to four receivers, making it a vital component for any professional audio system.

The APS4/NONE is not just a signal distributor, it also powers all connected receivers via BNC cables, eliminating the need for additional power sources and reducing clutter in your setup. Its adjustable RF-level attenuation settings ensure optimal operating distance, accommodating varying cable lengths and types, and ensuring consistent, high-quality audio transmission.

Constructed with a rugged half-rack metal housing, the APS4/NONE is designed to withstand the rigors of professional use. It is compatible with all active and passive AKG antennas available on the market, including the RA4000 B/W, RA4000 W, SRA2 B/W, and SRA2 W models, offering you a wide range of options for your audio setup.

The APS4/NONE comes complete with a rack mount kit (RMU4000), two front mount antenna cables, and ten BNC cables (MKPS), providing everything you need for an immediate system setup. It is available in four different power supply variants: EU, US, U.K., or none included, catering to different regional requirements.

The rear panel of the APS4/NONE features two antenna inputs that provide a 10 VDC supply voltage, capable of powering up to three active elements per antenna path. This includes one active antenna (RA4000 B/W or SRA2 B/W) and two AB4000 antenna boosters connected to one RF input. Additionally, the rear panel houses two sets of four BNC antenna output connectors for feeding up to four diversity receivers and two additional antenna outputs for cascading up to three further APS4 devices.

With a cable length adjustment switch for optimizing antenna signal levels, a link output for cascading up to three APS4 units for larger systems, and remote power for antennas and receivers, the APS4/NONE Antenna Power Splitter is a comprehensive solution for your audio distribution and power supply needs.
