AKG CK33 Modular Hyper-Cardioid Microphone Capsule for GN Series, HM 1000 and LM 3 Microphone Housings

SKU: AKCK33

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

AKG CK33 Specifications

  • Compatibility

    AKG GN Series, HM 1000 and LM 3 Microphone Housings

  • Polar pattern

    Hypercardioid

  • Frequency range

    50 to 20,000 Hz

  • Max. SPL

    125 dB (for 1 % THD)

  • Equivalent noise level

    21 dB-A (IEC 60268-4, A-weighted)

  • Signal/noise ratio (A-weighted)

    73 dB

  • Impedance

    <=600 ohms

  • Recommended load impedance

    >=2,000 ohms

  • Powering

    <3 mA

  • Connector

    Discreet Acoustics Modular standard

  • Finish

    Matte dark gray

  • Dimensions (LengthxDiameter)

    0.8x0.5" (20.3x12.7mm)

  • Weight

    5g (0.17oz)

  • UPC Code

    885038003045

0 Accessories for AKG CK33 Modular Hyper-Cardioid Microphone Capsule for GN Series, HM 1000 and LM 3 Microphone Housings

About AKG CK33

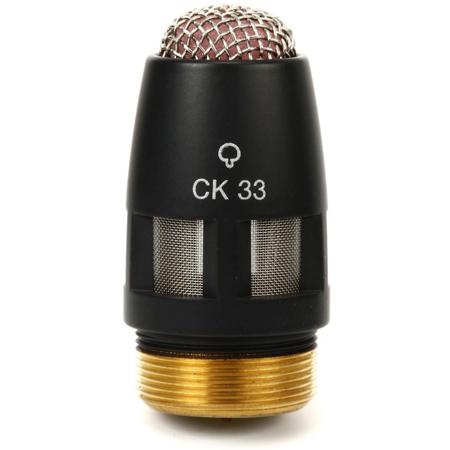

The AKG CK33 Modular Hyper-Cardioid Microphone Capsule is a modular hyper-cardioid microphone capsule designed for use with the AKG GN series, HM 1000 and LM 3 gooseneck, hanging and lavalier microphone fixtures. The hyper-cardioid polar pattern minimizes noise and ambiance at the off-axis (sides) of the microphone. The result increases directivity and provides high gain-before-feedback response when using near speakers or monitors.

The wide frequency response of 50Hz to 20kHz minimizes low frequency noise caused by wind and proximity effect while reproducing audio signal with great accuracy and rich detail. The dual wind screen design employs an outer layer which disperses initial wind stream while the second layer further diffuses the wind stream before reaching the diaphragm. The module design allows quick and easy capsule replacement for added flexibility.

AKG CK33 Features

  • Modular Design: The CK33 is designed with a threaded connection for use with the GN series, HM 1000 or LM 3 microphone fixtures. The modular design offers quick capsule replacement and enhances flexibility
  • Hyper-Cardioid Polar Pattern: The hyper-cardioid polar pattern offers a 90 degree pick up area. The result minimizes noise and ambient audio signal at the off-axis (sides) of the microphone capsule
  • Wide Frequency Response: The wide frequency response of 50Hz to 20kHz offers smooth, accurate audio reproduction while minimizing low frequency noise
  • Dual Layer Wind Protection: The dual layer windscreen provides a primary layer which disperses the incoming wind stream while the second layer further diffuses wind flow before reaching the diaphragm

Key Features

  • Modular Design: The CK33 is designed with a threaded connection
  • Hyper-Cardioid Polar Pattern
  • Dual Layer Wind Protection
  • Wide Frequency Response

What's in the box:

  • AKG CK33 Modular Hyper-Cardioid Microphone Capsule
  • Windscreen
  • AKG 2 Years Limited Warranty
