Audio Ltd. miniTX Transmitter (F2: 542-542MHz) and CX2-S Receiver (F12: 512-572Mhz) System, Includes 3x Straight Flexible Antenna, 2x VT500 Mic
SKU: AL4634471225
This item is no longer available.
Share:
Overview
Compare
Specs
Protection
About Audio Ltd. miniTX Transmitter and CX2-S Receiver System, F2: 542-542MHz

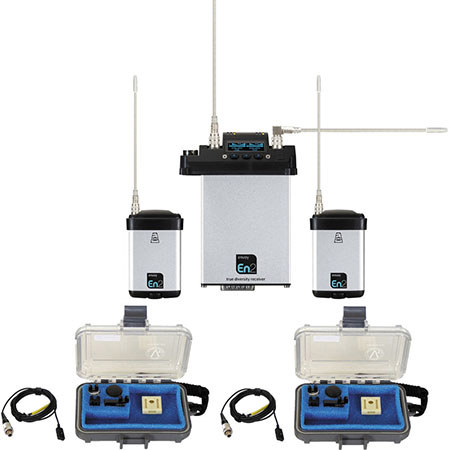

The Audio Ltd. miniTX Transmitter (542 to 572MHz) and CX2/S Receiver Set (512 to 572MHz) includes two transmitters, a receiver for Sony Slot equipped cameras, a 15-pin D-Sub connector, two VT500 omni-directional lavalier microphones, wire clips, neoprene miniTX pouch, SwitchiR, antennas and a standard 24" (609.6mm) auxiliary output cable.
The miniTX Ultra-Mini transmitter is a compact and lightweight professional UHF transmitter that can be easily hidden in a tiny pouch. Devoid of any switches or menu screens, this slim transmitter can be easily mounted on professionals such as artists, costumiers and sound recordists. This transmitter does not feature switches or menu screens.
The IR menu can be navigated by pointing the included SwitchiR key-fob controller on the top of the miniTX Transmitter to adjust all its parameters. The microphone input via a LEMO 3-pin locking connector provides powering that is compatible with most electret lavalier microphones. Powered by 2 AAA-type batteries (sold separately), the transmitter provides up to 5 to 7 hours of transmission and can be turned off simply by removing the batteries.
The CX2/S 2-Ch Slot-Mount Camera Receiver for Sony Camera is a professional UHF receiver for field production sound. The receiver offers excellent RF range and up to 80MHz switching bandwidth. A stylish design with front-end digitally controlled tracking filters delivers True Diversity performance.
The CX2/S receiver is compatible with Sony cameras with integrated receiver slots. The intuitive menu uses a blue Organic Light Emitting Diode (OLED) display that is clear and yet consumes very little power. All parameters can be set by three buttons on the top of each unit.
The receiver channel 1 output and external DC are via the 15-pin D-Sub connector on the bottom of the unit. The Aux channel 1 and 2 outputs via the Binder 7-pin connector on top.
Audio Ltd. miniTX Transmitter and CX2-S Receiver System, F2: 542-542MHz Features
- Transmitter: Up to 40 MHz bandwidth with 32 pre-programmed frequencies
- Transmitter: 542 to 572MHz operating range, via F2 frequency block
- Transmitter: Compatible with En2 DX, DX2 and CX2 receivers
- Transmitter: Menu system driven by infrared with SwitchiR controller (included)
- Transmitter: Powered by 2 AAA (sold separately) for up to 7 hours
- Transmitter: Selectable standby mode with SwitchiR controller (included)
- Transmitter: 3-pin LEMO locking connector for included Lavalier microphones
- Transmitter: Selectable Low Cut Filter at 20Hz (Flat) and 80Hz
- Receiver: Up to 80MHz switching bandwidth in 25 kHz steps
- Receiver: 512 to 572MHz operating range, via F12 frequency block
- Receiver: Pre-set 24 MHz span frequency tables
- Receiver: Front-end digitally controlled tracking filters
- Receiver: Compatible with En2 TXPH and miniTX transmitters
- Receiver: Pair of discreet True Diversity channels
- Receiver: Table scan with Spectrum Analyzer type display in 200 kHz steps
- Receiver: Camera Slot-in design - audio output and DC power via D-sub connector
- Receiver: 15-pin D-Sub connector and Binder 7-pin connector for Sony cameras
- Receiver: Easy to view, angled blue OLED display
- Receiver: Menu system via three durable push buttons
- Receiver: 7-pin Binder locking connector for Aux output
- Receiver: LED indicators on top showing diversity switching and signal loss
- Receiver: External 6 to 18 VDC via camera slot D-Sub, 150 mA at 12V
- Receiver: 32 factory preset frequencies in each table, 32 user selected frequencies
