Alibi Power Balun
My first attempt at adding a security camera. Already had cat 6 wire installed, but needed to connect to the dvr. I used one pair of these balun and they worked perfectly!

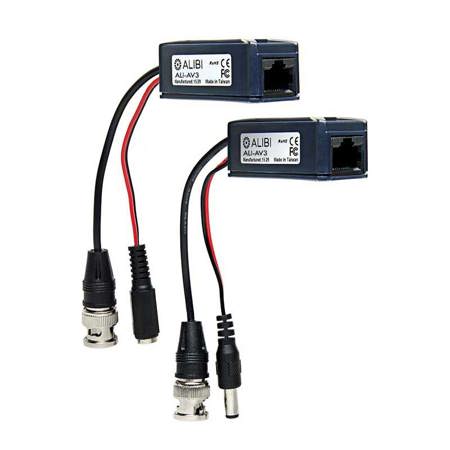

The ALI-AV3 Alibi ALI-AV3 HD-TVI/CVI/AHD Video/Power Balun enables you to send HD video signals from HD cameras and HD recorders, along with power, over a single unshielded twisted pair CAT5e and CAT6 cable. The video/power balun is compatible with multiple HD video technologies: including: HD-TVI, HD-CVI and AHD. It sends video signals over coax and 12/24 V power to an RJ-45 connector interface for transmission across standard CAT5e/6 UTP cabling.
The Alibi HD video/power balun Carries 300 mA at 12 Vdc up to 325' and 24 Vac up to 655'. It also features built-in ESD (Electrostatic Discharge) and EFT (Electrical Fast Transit) interference and transient protection. The high-definition video/power balun features 1x RJ-45 to BNC connector with an adapter plug and 1x RJ-45 to BNC connector with a DC power jack. The ALI-AV3 comes with a 3-year warranty and free US-based technical support.
Video balun cabling transmission systems are an alternative solution to coaxial and fiber based systems, providing the following benefits:
• Fast, easy installation, saving time and money
• Substantial savings on the cost of the cable itself
• Superb quality on long range transmission
