Alibi HD-TVI 8-Ch 2TB DVR Security System w/4x 8MP Turret, 2x 8MP Bullet Cameras
See all Alibi items

Alibi HD-TVI 8-Channel 2TB Hybrid DVR Security System with 4x 8MP IR Turret Dome and 2x 8MP IR Bullet Cameras

SKU: ALIHD84T2B8

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Alibi Security System Specifications

AC318-MD Camera: Camera

AC318-MD Camera: Camera

Jump to...

  • Image Sensor

    8.29 megapixel progressive scan CMOS

  • Signal System

    PAL/NTSC

  • Frame Rate

    TVI: 8MP@12.5fps, 8MP@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps, 2MP@25fps, 2MP@30fps
    CVI: 8MP@12.5fps, 8MP@15fps
    AHD: 5MP@20fps
    CVBS: 960H P/N

  • Resolution

    3840 (H) x 2160 (V)

  • Min. Illumination

    Color: 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR

  • Shutter Time

    PAL: 1/12.5 s to 1/50,000 s
    NTSC: 1/15 s to 1/50,000 s

  • Lens

    2.8 mm, 3.6 mm fixed lens

  • Horizontal Field of View

    102.2 Degree (2.8 mm), 79 Degree (3.6 mm)

  • Lens Mount

    M16

  • Day & Night

    IR cut filter

  • Angle Adjustment (Bracket)

    Pan: 0 Degree to 360 Degree , Tilt:0 Degree to 75 Degree , Rotate: 0 Degree to 360 Degree

  • Synchronization

    Internal synchronization

  • DWDR (Digital Wide Dynamic Range)

    105 dB

AC318-MD Camera: Menu

Jump to...

  • AGC

    Yes

  • Day/Night Mode

    Auto/Color/BW (Black and White)

  • White Balance

    Auto / Manual

  • BLC (Backlight Compensation)

    Yes

  • Language

    English

  • Functions

    Brightness, Sharpness, DNR, Mirror, Smart IR

AC318-MD Camera: Interface

Jump to...

  • Video Output

    1 HD analog output

  • Switch Button

    TVI/AHD/CVI/CVBS

AC318-MD Camera: General

Jump to...

  • Material

    Metal

  • Operating Conditions

    f40 Degree C to 60 Degree C (f40 Degree F to 140 Degree F), humidity: 90% or less (nonfcondensation)

  • Power Supply

    12 VDC +/-25%

  • Power Consumption

    Max. 5.3 W

  • Protection Level

    IP67

  • IR Range

    Up to 100' (30m)

  • Communication

    Up the coax, Protocol: UTCfC (TVI output)

  • Dimensions

    3.54 x 3.12" (90 x 79.37mm)

  • Weight

    10.9 oz (310g) (Approx.)

AC318-MB Camera: Camera

Jump to...

  • Image Sensor

    8.29 megapixel progressive scan CMOS

  • Signal System

    PAL/NTSC

  • Frame Rate

    TVI: 8MP@12.5fps, 8MP@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps, 2MP@25fps, 2MP@30fps
    CVI: 8MP@12.5fps, 8MP@15fps
    AHD: 5MP@20fps
    CVBS: 960H P/N

  • Resolution

    3840 (H) x 2160 (V)

  • Min. Illumination

    Color: 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR

  • Shutter Time

    PAL: 1/12.5 s to 1/50,000 s
    NTSC: 1/15 s to 1/50,000 s

  • Lens

    2.8 mm, 3.6 mm fixed lens

  • Horizontal Field of View

    102.2 Degree (2.8 mm), 79 Degree (3.6 mm)

  • Lens Mount

    M16

  • Day & Night

    IR cut filter

  • Angle Adjustment (Bracket)

    Pan: 0 Degree to 360 Degree , Tilt:0 Degree to 180 Degree , Rotate: 0 Degree to 360 Degree

  • Synchronization

    Internal synchronization

  • DWDR (Digital Wide Dynamic Range)

    105 dB

AC318-MB Camera: Menu

Jump to...

  • AGC

    Yes

  • Day/Night Mode

    Auto/Color/BW (Black and White)

  • White Balance

    Auto / Manual

  • BLC (Backlight Compensation)

    Yes

  • Language

    English

  • Functions

    Brightness, Sharpness, DNR, Mirror, Smart IR

AC318-MB Camera: Interface

Jump to...

  • Video Output

    1 HD analog output

  • Switch Button

    TVI/AHD/CVI/CVBS

AC318-MB Camera: General

Jump to...

  • Material

    Metal

  • Operating Conditions

    f40 Degree C to 60 Degree C (f40 Degree F to 140 Degree F), humidity: 90% or less (nonfcondensation)

  • Power Supply

    12 VDC +/-25%

  • Power Consumption

    Max. 5.3 W

  • Protection Level

    IP67

  • IR Range

    Up to 100' (30m)

  • Communication

    Up the coax, Protocol: UTCfC (TVI output)

  • Dimensions

    2.28 x 2.40 x 6.42" (58 x 61 x 159.8mm)

  • Weight

    12 oz (345g) (Approx.)

HVRH0801-0 DVR: Video/Audio Input

Jump to...

  • Analog Video Input

    8-ch, BNC

  • IP Video Input

    4-ch (only IP up to 12 ch), each channel up to 4K

  • Supported Analog Camera Types

    Support AHD input:8MP@15fps(channel1-channel2) 5MP@20fps 4MP@30fps 3MP@30fps(channel1-channel2) 1080P@30fps 720P@60fps
    Support TVI input: 8MP@15fps(channel1-channel2) 5MP@20fps 4MP@30fps 3MP@20fps(channel1-channel2) 1080P@30fps 720P@60fps
    Support CVI input: 8MP@15fps(channel1-channel2) 5MP@20fps 4MP@30fps 1080P@30fps 720P@30fps
    Support CVBS input

  • Audio Input

    1-ch, RCA

  • Two-way Audio

    1-ch, RCA

  • Channel Associated Audio

    1-ch, RCA

HVRH0801-0 DVR: Network

Jump to...

  • Incoming Bandwidth

    40Mbps

  • Outgoing Bandwidth

    64Mbps

  • Remote Users

    128

  • Protocols

    TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE

HVRH0801-0 DVR: Video/Audio Output

Jump to...

  • CVBS Output

    1-ch, BNC

  • VGA Output

    1920 x 1080p / 60 Hz, 1920 x 1080p / 50 Hz, 1600 x 1200 / 60 Hz, 1280 x 1024 / 60 Hz, 1280 x 720 / 60 Hz, 1024 x 768 / 60 Hz

  • HDMI Output

    1920 x 1080p / 60 Hz, 1920 x 1080p / 50 Hz, 1600 x 1200 / 60 Hz, 1280 x 1024 / 60 Hz, 1280 x 720 / 60 Hz, 1024 x 768 / 60 Hz

  • Audio Output

    1-ch, RCA

  • Synchronous Playback

    8-ch

HVRH0801-0 DVR: Encoding

Jump to...

  • Recording Resolution

    8MP Lite / 5MP Lite / 4MP Lite / 3MP / 1080P / 960P / 720P / 960H / 4CIF / CIF

  • Recording Frame Rate

    Main stream: 8MP Lite @ 8 fps (channel 1 - channel 2), 5MP Lite @ 12 fps, 4MP Lite @ 15 fps, 3MP @ 15 fps (channel 1 - channel 2), 2MP @ 15 fps, 720P @ 30 fps, Sub stream: D1 @ 30 fps (Max)

HVRH0801-0 DVR: Hard Disk

Jump to...

  • SATA

    1 SATA interfaces

  • Capacity

    Up to 8TB for each HDD

HVRH0801-0 DVR: External Interface

Jump to...

  • Network Interface

    1RJ45 10M / 100M self-adaptive Ethernet Interface

  • USB Interface

    Rear panel: 2 x USB2.0

  • Serial Interface

    1 x RS485

HVRH0801-0 DVR: General

Jump to...

  • Power Supply

    12 Vdc Power Consumption: <= 8 W (without HDD)

  • Working Environment

    +14 Degree F - +131 Degree F (-10 Degree C - + 55 Degree C), Relative humidity <= 90% (noncondensing)

  • Dimensions (W x D x H)

    10.2 x 9.4 x 1.8" (260 x 240 x 46mm)

  • Weight

    Without HDD: 4.19 lbs (1.9kg)

Other

Jump to...

  • UPC Code

    810094731175

About Alibi Security System

Easy-to-install 6-camera HD security system provides 24/7 protection. Complete 8.0 megapixel 6-camera HD-TVI video security system, including all the components you need for hassle-free installation and 24/7 monitoring. This system comes with a security grade Hybrid DVR (digital video recorder) with a 2TB hard drive, enabling you to store video recordings locally, without additional monthly fees for cloud storage. With infrared night vision, your cameras can see up to 100' in the dark, for complete day/night protection.

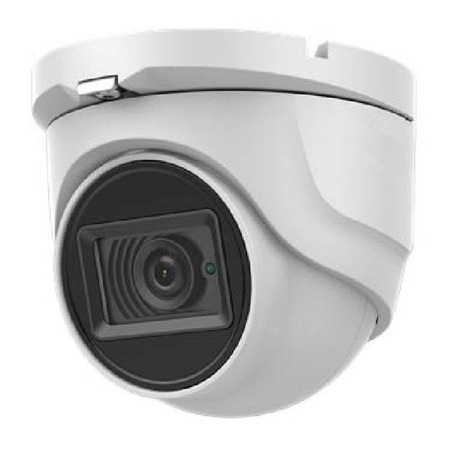

- AC318-MD 8 MP Turret Dome Cameras -

Features:
• 8.29 MP high performance CMOS
• 3840 x 2160 resolution
• 2.8 mm, 3.6 mm fixed lens
• EXIR 2.0, smart IR, up to 30 m IR distance
• 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
• IP67
• Up the coax (UTC-C)


- AC318-MB 8 MP Bullet Camera -

Features:
• 8.29 MP high performance CMOS
• 3840 x 2160 resolution
• 2.8 mm, 3.6 mm fixed lens
• EXIR 2.0, smart IR, up to 30 m IR distance
• 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
• IP67
• Up the coax (UTC-C)


- HVRH0801-0 8-Channel Security Hybrid DVR -
A professional analog and digital recording solution for home or small business applications featuring 8MP resolution supporting both IP and analog cameras.

Lower Bandwidth and Storage Usage
Supports H.265 and H.264 codecs that help reduce file size, maximize recording time, and save hard drive space.

Durably designed
To protect against a wide temperature range, from +14 Degree F - 131 Degree F.

Easy management
An intuitive interface along with access to the free Guard Viewer mobile app and Guard Station CMS for straightforward management.

Features:
• Up to 8 analog cameras & 4 IP cameras can be connected - up to 12 cameras total
• Simultaneous playback capability + Up to 56 Mbps incoming IP bandwidth
• Support up to 8MP Lite recording of analog cameras and up to 8MP recording of IP cameras
• Free Mobile App & CMS
• One-click Cloud firmware updating

Alibi Security System Features

  • 4x 8.0 megapixel resolution turret cameras
  • 2x 8.0 megapixel resolution bullet cameras
  • 100' (30.48m) smart IR range
  • Up to 8 analog cameras & 4 IP cameras can be connected - up to 12 cameras total
  • Support up to 8.0 megapixel recording solution
  • Includes 2TB hard drive
  • H.265/H.264 video compression
  • Simultaneous playback capability
  • Up to 56 Mbps incoming IP bandwidth
  • Free Mobile App & CMS - simple remote management
  • One-click Cloud firmware updating

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • 4x 8.0 megapixel resolution turret cameras
  • 2x 8.0 megapixel resolution bullet cameras
  • 100' (30.48m) smart IR range
  • Up to 8 analog cameras & 4 IP cameras can be connected - up to 12 cameras total
  • Support up to 8.0 megapixel recording solution
  • Includes 2TB hard drive

What's in the box:

  • 4x 8.0MP Turret Dome Cameras (AC318-MD)
  • 2x 8.0MP Bullet Cameras (AC318-MB)
  • 8-Channel 2TB HDD Hybrid DVR (HVRH0801-0)
  • Power Supplies
  • 60' Video/Power Cables
  • Quick Start Guide
  • Video Warning Decal
  • Alibi 3 Year Limited Warranty
