Alibi HNC42-UZA-1 Specifications

Camera
  • Sensor

    1/2.8", 2.0 megapixel, progressive scan, CMOS

  • Lens

    4.5 - 148.5mm, AF automatic focusing and motorized zoom lens

  • Digital Zoom

    16x

  • Optical Zoom

    33x

  • Iris

    Auto; F1.5 - F4.0

  • Angle of View

    H: 56.2 Degree - 2.6 Degree
    V: 33.5 Degree - 1.4 Degree
    O: 65.4 Degree - 3.0 Degree

  • Shutter

    Auto/Manual, 1 - 1/100000s

  • Min. Illumination

    Color: 0.001 Lux (F1.5, AGC ON)
    0 Lux with IR

  • WDR

    120dB

  • Day/Night

    IR-cut filter with auto switch (ICR)

  • S/N

    >52dB

  • IR Range

    Up to 492' (150m) IR range

  • Wavelength

    850nm

  • IR On/Off Control

    Auto/Manual

  • Defog

    Digital Defog

  • Video Compression

    Ultra 265, H.265, H.264, MJPEG

  • Frame Rate

    Main Stream: 2MP(1920x1080), Max 60fps
    Sub Stream: 2MP (1920x1080), Max 60fps
    Third Stream: D1 (720x576), Max 60fps
    Fourth Stream: D1 (720x576), Max 60fps
    Fifth Stream: D1 (720x576), Max 60fps

  • Video Bit Rate

    128 Kbps-16 Mbps

  • ROI

    Supported
    Up to 8 areas

  • Video stream

    Five streams

  • OSD

    Up to 8 OSDs

  • Privacy Mask

    Up to 24 areas

  • Privacy Mask

    Up to 24 areas

  • Motion Detection

    Up to 4 areas

  • White Balance

    Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2

  • Digital noise reduction

    2D/3D DNR

  • Smart IR

    Support

  • Flip

    Normal/Flip Vertical/Flip Horizontal/180 Degree /90 Degree Clockwise/90 Degree Anti-clockwise

  • HLC

    Support

  • BLC

    Support

  • Basic Detection

    Motion detection, Audio detection, Tampering Alarm

  • General Function

    Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication

  • Audio Compression

    G.711U,G.711A

  • Two-way Audio

    Supported

  • Suppression

    Supported

  • Sampling Rate

    8 KHz

Storage

Jump to...
  • Edge Storage

    Micro SD, up to 256 GB

  • Network Storage

    ANR,NAS (NFS)

Network

Jump to...
  • Protocols

    IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP

  • Compatible Integration

    ONVIF (Profile S, Profile G, Profile T), API

  • Client

    Guard Station CMS
    Guard Tools Software
    Guard Viewer Mobile

  • Web Browser

    Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below

Pan & Tilt

Jump to...
  • Pan Range

    360 Degree (endless)

  • Pan Speed

    0.1 Degree /s - 240 Degree /s
    Preset speed: 300 Degree /s

  • Tilt Range

    -15 Degree - 90 Degree (auto reverse)

  • Tilt Speed

    0.1 Degree - 160 Degree /s
    Preset speed: 240 Degree /s

  • Number of Presets

    1024

  • Patrol

    Preset patrol, route patrol, recorded patrol

  • Home Position

    Supported

Interface

Jump to...
  • Audio I/O

    Audio cable
    1 Input: impedance 35k Ohm; amplitude 2V (p-p)
    1 output: impedance 600 Ohm; amplitude 2V (p-p)

  • Alarm I/O

    2/1

  • Serial Port

    1 RS485

  • Network

    1 x RJ45 10M/100M Base-TX Ethernet

  • Video Output

    1 BNC, impedance 75 Ohm; amplitude 1V (p-p)

Certifications

Jump to...
  • Certifications

    IEC 62368-1
    UL 60950-1
    FCC Part 15
    EN 55032:2015
    EN 55024:2010
    EN 61000-3-2:2014
    EN 61000-3-3-2013

General

Jump to...
  • Power

    AC 24V +/-25%, DC 24V +/-25%, PoE (PSE Required)
    Power consumption: Max 48W

  • Working Environment

    -40 Degree F - 149 Degree F (-40 Degree C - 65 Degree C), <=95%RH

  • Storage Environment

    -40 Degree F - 149 Degree F (-40 Degree C - 65 Degree C), <=95%RH

  • Surge protection

    6KV

  • Ingress Protection

    IP66

  • Dimensions (Dia. x H)

    8.9 x 14.2" (227 x 359.4mm)

  • Weight

    11.68 lbs (5.3kg)

  • UPC Code

    810094730956

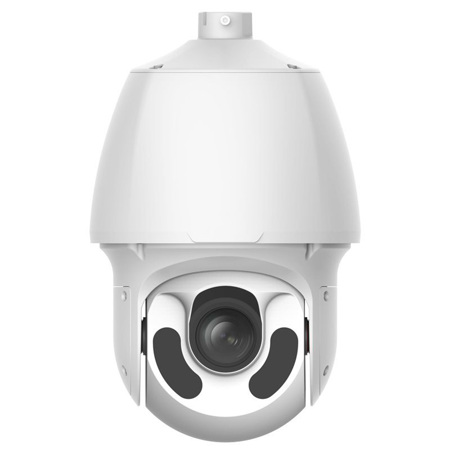

About Alibi HNC42-UZA-1

Explore the advanced features of the HNC42-UZA-1 2MP Starlight PTZ Dome Camera, a high-tech security solution designed for both indoor and outdoor surveillance. This state-of-the-art camera is equipped with a varifocal lens, innovative Starlight technology, and an extreme long-range infrared capability, ensuring comprehensive protection for your home or business.

Experience the superior image quality delivered by the 2-megapixel resolution, which provides exceptional clarity and detail in all lighting conditions. Whether it's day or night, this sophisticated camera captures crisp, clear video footage up to a distance of 492 feet.

The PTZ (Pan-Tilt-Zoom) design of this camera allows for precise coverage over a larger area, capturing more detail with less equipment. It boasts a 360-degree endless pan range and a tilt range of -15 to 90 degrees, with auto-reverse functionality. The camera's pan and tilt speeds can be adjusted to suit your needs, and it can store up to 1024 preset positions for easy recall.

The Starlight technology chipset in this camera uses ambient light sources to capture vivid color video even in extreme low-light conditions. It also features a Sodium Lamp mode, specifically designed for environments using HPS/Sodium lighting.

The camera's IR anti-reflection window enhances infrared transmittance, while the 3D Digital Noise Reduction feature ensures cleaner, noise-free video. The camera also includes a storage card port for recording and storing footage, making it an ideal choice for network/IP surveillance.

Manage your security effortlessly with the intuitive interface and the free Guard Viewer Mobile App. This app allows you to view live and recorded video remotely from your Android or iOS mobile device. The camera is also compatible with the Guard Station CMS, making management more straightforward than ever.

In summary, the HNC42-UZA-1 2MP Starlight PTZ Dome Camera with a 4.5-148.5mm lens is a versatile, high-performance security solution, designed to deliver superior surveillance coverage and exceptional image quality.

Alibi HNC42-UZA-1 Features

  • 2MP high resolution
  • 1/2.8" progressive scan CMOS
  • 1920 x 1080 @ 60fps
  • 33X Optical Zoom (16X Digital), 4.5-148.5mm automatic focusing and a motorized zoom lens Detects up to 239' @ 4.5 mm
  • Detects up to 7178' @ 148.5 mm
  • 33X optical zoom
  • Up to 492' Smart IR, Color 0.001Lux, O Lux with IR
  • 120dB True WDR
  • Alarm 2 in and 1 out, Audio 1 in and 1 out
  • microSD card slot up to 256GB
  • ANR, NAS(NFS) Network Storage
  • ONVIF (Profile S, G, Profile T), API
  • Meets NDAA federal government compliance requirements
  • IP66 weather-resistant

Warranty Information

This product has a limited warranty of 36 months for parts and 36 months for labor.

Key Features

  • High-tech 2MP PTZ Dome Camera with varifocal 4.5-148.5mm lens for indoor/outdoor surveillance
  • Advanced Starlight technology and extreme long-range IR for clear footage up to 492 feet
  • Innovative Sodium Lamp mode for environments using HPS/Sodium lighting
  • State-of-the-art 3D Digital Noise Reduction for cleaner, noise-free video
  • Includes free Guard Viewer Mobile App for remote viewing and easy management

What's in the box:

  • Alibi HNC42-UZA-1 2MP Starlight 492' IR WDR Day & Night Indoor/Outdoor 33x IP PTZ Dome Camera
  • Mounting Template
  • Mounting Hardware
  • Quick Start Guide
  • Alibi 3 Year Limited Warranty
