This item is no longer available.
Enjoy the "tribrid" (triple hybrid) flexibility of a digital video recorder that lets you use traditional analog CCTV security cameras and take advantage of the latest HD-TVI and IP camera technology. The Alibi 5000 Series 16-Channel 1080p/960H HD-TVI/Analog/IP Hybrid+ Real-Time Security DVR provides a cost-effective, high-resolution recording solution for your business or retail store. The Alibi ALI-HVR5016H Hybrid+ DVR supports HD-TVI and analog cameras along with two Alibi 1080p IP cameras. Choose and combine camera technologies to meet your surveillance needs, including the following options and combinations:
· 16x HD-TVI cameras
· 8x HD-TVI cameras and 8x analog cameras
· 2x HD-TVI cameras, 12x analog cameras and 2x Alibi 1080p IP cameras
· 14x HD-TVI cameras and 2x Alibi 1080p IP cameras
The ALI-HVR5016H has an IP camera finder tool that allows you to find, configure and connect any Alibi 720p or 1080p IP camera. Note: The DVR supports two Alibi 720p or 1080p IP cameras (2x Alibi IP cameras replace 2x analog channels). The DVR supports multiple recording resolutions, enabling you to choose the resolution option that best meets your application needs. When used with an HD-TVI camera or an Alibi IP camera, this hybrid DVR offers 1080p full HD resolution real-time video recording at 30 frames per second per channel. Along with delivering HD resolution video, HD-TVI technology can send zero latency HD video over RG59 coax - up to 1,600'.
This versatile Hybrid+ security DVR lets you tailor your recording settings to meet the requirements of different camera locations. Choose from continuous, motion detection, schedule or event-based recording for each camera. The DVR features an event log, event search and event notification which sends an email, text or video image when an event occurs via - enabling you to respond to incidents in real-time. Smart Search enables you to search video fast! The feature allows you to you to designate a specific area on-screen for playing back video of what motion occurred in that area.
The tribrid DVR also includes VGA and HDMI video outputs supporting up to 1080p display resolution for live viewing. H.264 video compression reduces video file size, maximizing recording time and saving hard drive space. The DVR supports up to 16TB of internal storage (4x 4TB hard drives max). Video can be easily offloaded via your network, USB or mobile device.
· Hybrid+ technology supports HD-TVI, traditional analog and Alibi IP cameras
· Supports up to 16 cameras: 16x HD-TVI and/or analog (any combination), 2x Alibi 1080p IP cameras
· Capable of recording 1080p full HD resolution real-time video at 30 fps per channel
· HD-TVI technology transmits zero latency HD video up to 1,600' over coax cabling
· Fully compatible with all HD-TVI and analog cameras (any brand)
· Control camera OSD settings over coax cabling (no extra data cable needed)
· Central Management Software (CMS) can manage up to 256 devices across multiple locations from a single platform
· VGA and HDMI output at up to 1920x1080 (1080p) resolution
· H.264 video compression to maximize recording time and save hard drive space
· Multiple selectable recording modes (continuous, motion detection, schedule and event)
· Recording features include event search, event log and email notification
· Free iOS and Android mobile app for remotely viewing live and recorded video
· Supports up to 16TB internal storage (4x 4TB hard drives max)
· Features Alibi Power Tools, a collection of powerful utilities designed to streamline and simplify the installation, set-up and management of your Alibi surveillance system.
Features Alibi Power Tools
Alibi Power Tools is a collection of powerful, time-saving utilities for use with Alibi surveillance systems. These utilities are designed to streamline and simplify the installation, set-up and management of your network, your Alibi cameras and recorders and your recorded video evidence.
Alibi Power Tools includes the following:
· Remote Backup
· Discovery Tool
· Local Playback
· Batch Upgrading
· Disk Calculator
· Focus Assistant
· Batch Configuration

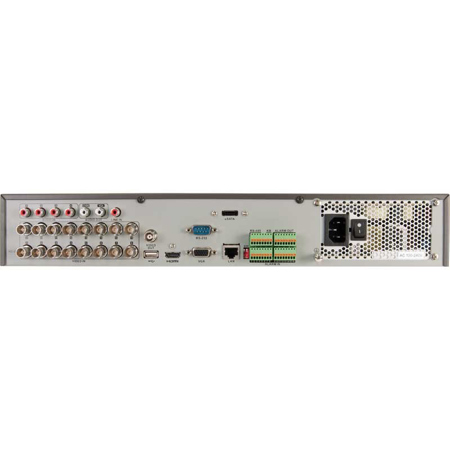

Connectors include:
· 16x alarm inputs
· 16x video inputs
· 4x alarm outputs
· 4x audio inputs
· 2x audio outputs
· 1x VGA output
· 1x HDMI output
· 1x D-Sub output
· 1x BNC output
· 3x USB ports
· 1x RS-485 input
· 1x RJ45 LAN input
· 1x Keyboard Input (PTZ Controller)
The recorder uniquely offers the ability to control your camera's OSD settings directly over the coax cabling, which eliminates the need for an extra data cable. This DVR runs Alibi's Central Management Software (CMS), a professional monitoring platform that enables you to centrally manage multiple devices, at multiple locations, from a single interface. The CMS enables you to view up to 64 live cameras on a single screen and supports up to 256 devices (such as cameras and recorders) with a maximum of 1,024 channels.
The user-friendly central management software is loaded with powerful features to enhance your management and viewing experience, including: drag-and-drop system and camera selection, customizable displays, device grouping, notifications, remote system management and many more. Live and recorded video can be viewed remotely from anywhere via your web browser or from your mobile device with the free Alibi Witness iOS/Android mobile app.
Key Features and Capabilities
Hybrid+ supports multiple security technologies
Hybrid+ is an advanced hybrid technology for security DVRs that supports analog, HD-TVI and IP cameras (up to the total number allowed for each security technology). Hybrid+ technology gives you the flexibility of using multiple security technologies to meet your specific surveillance application needs.
HD-TVI Technology - High-resolution megapixel video at a lower cost
HD-TVI sends zero latency 720p or 1080p full HD video over RG59 coax cabling. HD-TVI cameras and DVRs offer the advantages of HD resolution video, but are as easy to install as standard analog CCTV equipment. HD-TVI enables longer cable runs for long distance installations, with transmission distances of up to 1,600' over standard coax cabling (or any traditional analog CCTV cabling).
Smart Search - Speed up search time
Designate a specific area on-screen to play back video of any motion which occurred in that area.
Selectable Recording Modes - Maximize recording
The HVR/DVR/NVR offers multiple selectable recording options including continuous recording, motion detection, schedule and event to meet your video recording needs and maximize hard drive storage.
Automated Email Alerts - Be notified when an event occurs
The DVR will automatically send an email alert with a text notification or - short video clip when an event triggered by motion has occurred. This provides - record of the event and enables you quickly to take action when an incident occurs.
H.264 Video Compression - Maximize recording time and reduce file size
H.264 compression greatly reduces the size of your digital video files without compromising image quality (compared to other compression standards such as M-JPEG and MPEG-4). H.264 is a stable, proven compression technology, which offers unbeatable recording picture quality while at the same time saving you valuable hard drive storage space.
Free Mobile App - View your video remotely from anywhere
Enjoy convenient remote access from your iOS or Android mobile device with the free Alibi Witness mobile app. You can monitor and configure your security system from anywhere at any time.
Technology Agnostic - Support for multiple technologies
Alibi CMS is engineered to support all Alibi analog, HD Analog and IP recording solutions - delivering unparalleled flexibility today and as your surveillance needs evolve.
Alibi Discovery Protocol (ADP) - Discover devices on your network
Auto-discovers all Alibi recorders and cameras on your LAN. (You don't need to know the specific IP address for each device.)
View Multiple Cameras - View all allotted cameras on one screen
Conveniently view up to 64 live cameras on a single screen.
Extensive Device Support - Get support for hundreds of devices
Provides support for up to 256 devices with a maximum of 1024 channels.
Customizable Screen Views - Create a custom view
Customize viewing layouts and groups - mixing and matching cameras from multiple systems and multiple locations.
Import Mapping - Create a map of your location
Import a location map and add devices with visual icons to the map. Set up alerts for each device on the map and receive notifications via email.
Full Calendar Search - Search your video fast
Quickly narrow down your search criteria, selecting weeks or days - to one-minute segments, filtering by user-defined events.
Smart Search - Define a search area
Define an area within your image and search for motion only within that area - to quickly locate video of traffic through a doorway, activity near an object or other events in a specific location.
Video Tagging - Tag an area of interest
Create video tags that represent events of interest (such as "shoplifting") and search your video library to quickly access all tagged events at a later time.
